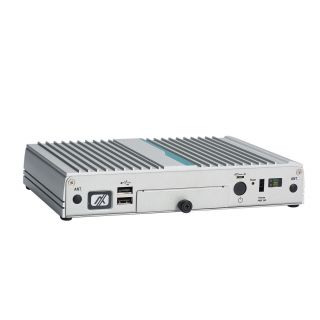

Axiomtek fanless low power embedded system - eBOX100-312-FL (Axiomtek ebox)

Details

The eBOX100-312-FL comes with ultra-slim size, low power consumption and fundamental features. The fanless embedded system is powered by the Intel® Celeron® processor N3350 (codename: Apollo Lake) with turbo boost up to 2.4 GHz. It is equipped with one 204-pin DDR3L-1600 SO-DIMM socket with up to 8GB system memory. In order to provide excellent multimedia performance, the embedded box computer comes with two HDMI ports for dual-view display with up to 4K resolution. To enhance wireless communication capabilities, this compact embedded system provides two PCI Express Mini Card slots, one SIM card slot, and four antenna connectors. With its compact size and basic functions, the entry-level eBOX100-312-FL is suitable for smart retail and light industries.

SPECIFICATIES

Meer informatie

Art.nr.

eBOX100-312-FL

Fabrikant

Axiomtek

Land van herkomst

Taiwan

Construction

Aluminum extrusion and heavy-duty steel, IP40

CPU

Intel® Celeron® processor N3350 2.4 GHz with turbo boost

System Memory

1 x 204-pin SO-DIMM DDR3L-1600, up to 8GB

Chipset

SoC integrated

BIOS

AMI

System I/O Outlet

2 x USB 3.0
4 x USB 2.0
4 x Antenna opening
1 x ATX power switch
1 x ATX/AT quick switch
1 x Reset button
1 x Remote power switch
1 x RS-232
2 x 10/100/1000 Mbps Ethernet (Intel® i211AT)
2 x HDMI 1.4b 1 x DC power input (screw type)

Watchdog Timer

255 levels, 1 ~ 255 sec.

Expansion Interface

2 x full-size PCI Express Mini Card (USB + PCIe)
1 x SIM slot

Storage

1 x 2.5" SATA HDD drive bay

Power Supply

12V DC

Operating Temperature

-5°C ~ +60°C

Humidity

10% ~ 90% , non-condensing
