Voltage-Current
ICP DAS's voltage attenuators and current transformers are designed to modify high voltage or current inputs, enabling their acquisition with standard data acquisition equipment with inputs ranging from +/- 10 V.
These devices incorporate multiple electrical isolations, ensuring isolation between channels and between input and output. Additionally, they offer at least 3kV electrostatic discharge (ESD) protection, safeguarding against potential damage from static electricity.
Moreover, these products meet industrial environmental requirements, making them suitable for DIN-Rail installation, a common mounting method in industrial settings. This design ensures that the voltage attenuators and current transformers are robust, reliable, and suitable for use in demanding industrial environments where precise measurement and protection against electrical hazards are crucial.

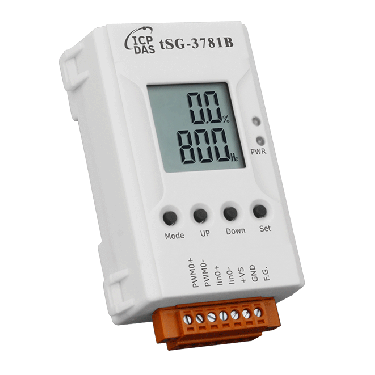

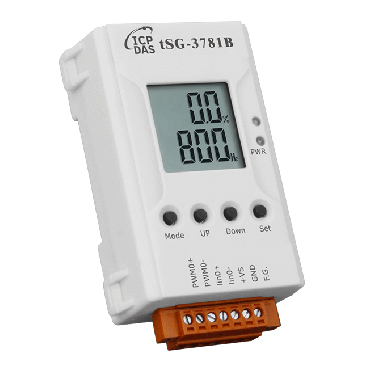

tSG-3781B - 1-channel 4 ~ 20 mA Current Input / PWM Output Signal Conditioner - ICPDAS● Convert 1-channel 4 ~ 20mA Current Input to 1-channel PWM Output
● PWM output duty ratio converted by 4 ~ 20 mA Input
● PWM output frequency configured via push buttons
● LCD displays the PWM output duty ratio and frequency

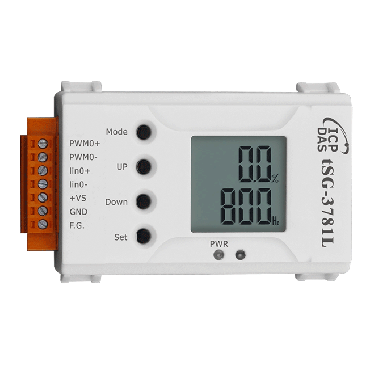

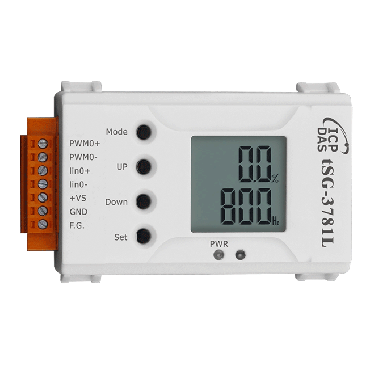

tSG-3781L - 1-channel 4 ~ 20 mA Current Input / PWM Output Signal Conditioner - ICPDAS● Convert 1-channel 4 ~ 20mA Current Input to 1-channel PWM Output
● PWM output duty ratio converted by 4 ~ 20 mA Input
● PWM output frequency configured via push buttons
● LCD displays the PWM output duty ratio and frequency

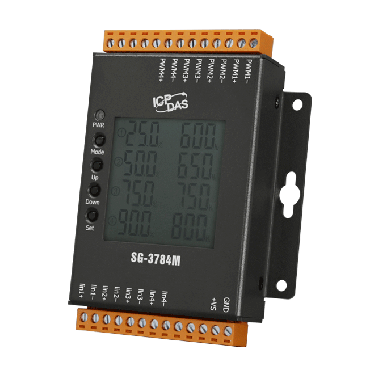

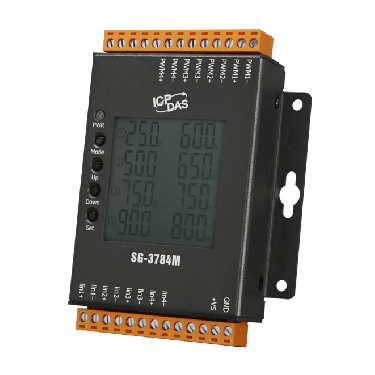

SG-3784M - 4-channel DC Current Signal Input to 4-channel PWM Output Module - ICPDAS● 4-channel 4 ~ 20mA Current Input to 4-channel PWM Output● Accuracy: ±0.1% of Full Range● Easy PWM Frequency configuration● 4kV ESD and EFT Protection● 2.7-inch LCD simultaneously displays PWM signal duty ratio and frequency● 4-button easy configuration of PWM signal

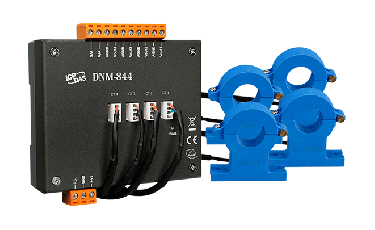

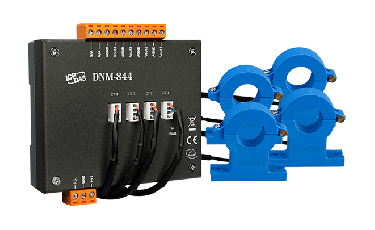

DNM-844 Serie - 4 Channel Current TransformersDNM-844-Serie:
DNM-844-50A 4 Channel Current Transformer 50A
DNM-844-200A 4 Channel Current Transformer 200A
DNM-844-500A 4 Channel Current Transformer 500A
DNM-844-1000A 4 Channel Current Transformer 1000A
DNM-844-2000A 4 Channel Current Transformer 2000A
● 4-Channel High Current Input Measurement
● Linear Attenuation Ratio
● Easily wire connection

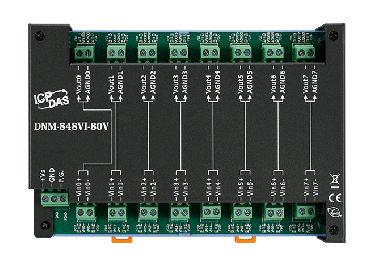

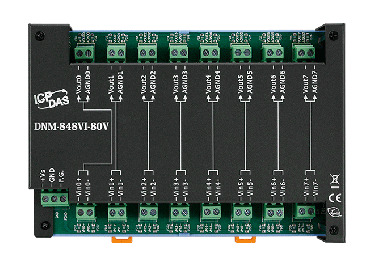

DNM-848VI-Serie - 8-channel DC Voltage Attenuator with channel to channel isolationDNM-848VI-Serie
DNM-848VI-10V - 8-channel 10 VDC Voltage Attenuator with channel to channel isolation
DNM-848VI-80V - 8-channel 80 VDC Voltage Attenuator with channel to channel isolation
DNM-848VI-150V - 8-channel 150 VDC Voltage Attenuator with channel to channel isolation
● With Metal cover
● AC/DC Source Input
● High Voltage Input Measurement
● Linear Attenuation Ratio
● High Input Impedance
● Easily wire connection

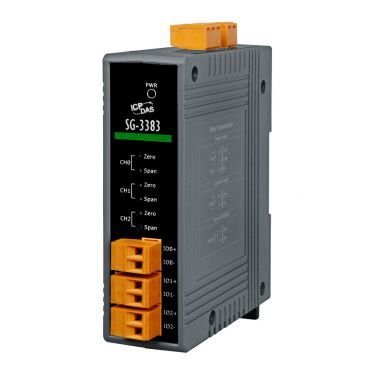

ICPDAS SG-33831-channel current input to 3-channel current output signal conditioning module
● One 4 to 20 mA Input to Three 4 to 20 mA Outputs
● 8 kV ESD Protection
● Three-way Isolation: 3000 VDC
● Built-In Loop Power Supplies for Sink/Source I/O
● Split, Convert, Boost, and Rescale Process Signals
● Split Process Signals for Control and Validation
● Interface a Process Signal with Multiple Panel Meters, PLCs,
Recorders, Data Acquisition, DCS, and SCADA Systems
● Flexible DIN-rail Mounting
● Wide Operating Temperature Range: -25 to +75°C

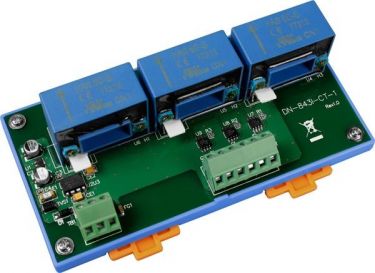

DN-843I-CT-Serie - 3-channel Current TransformerDN-843I-CT-Serie:
DN-843I-CT-1 - 3-channel 1 A Current Transformer
DN-843I-CT-10 - 3-channel 10 A Current Transformer
DN-843I-CT-20 - 3-channel 20 A Current Transformer
DN-843I-CT-50 - 3-channel 50 A Current Transformer
● AC/DC Source Input
● Linear Attenuation Ratio
● High Input Impedance
● Operating Temperature Range: -25 C ~ +75 °C
● Easily wire connection
DN-843V-600 - 3-channel 600 VDC Voltage Attenuator with non-isolation3-channel 600 V Voltage Attenuator
● AC/DC Source Input
● High Voltage Input Measurement
● Linear Attenuation Ratio
● High Input Impedance
● Operating Temperature: -25 °C ~ +75 °C
● Easily wire connection

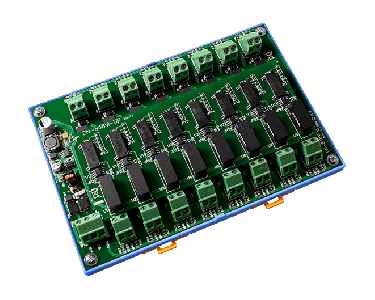

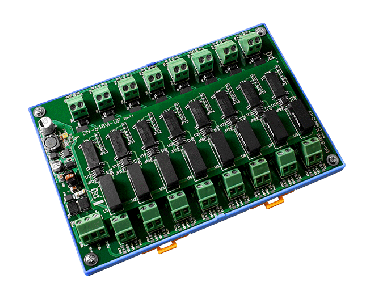

DN-848VI-Serie - 8-channel DC Voltage Attenuator with channel to channel isolationDN-848VI-Serie
DN-848VI-10V - 8-channel 10 VDC Voltage Attenuator with channel to channel isolation
DN-848VI-80V - 8-channel 80 VDC Voltage Attenuator with channel to channel isolation
DN-848VI-150V - 8-channel 150 VDC Voltage Attenuator with channel to channel isolation
● Without metal cover
● AC/DC Source Input
● Linear Attenuation Ratio
● High Input Impedance
● 4 kV ESD Protection
● Wide Operating Temperature Range: -25 °C ~ +75 °C
● Easily wire connection

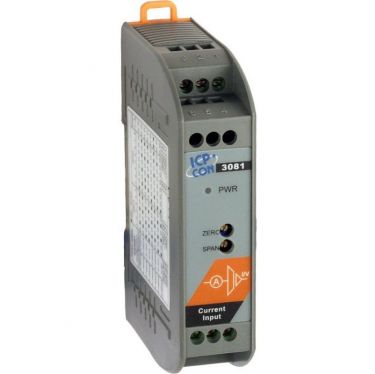

ICPDAS SG-3081Isolated DC Current Input/Output Module
● Three-way isolation: 1000 Vdc
● Accuracy: ±0.1% of full range
● Bandwidth: 600Hz (typical)＠-3dB
● Operation temperature range:-25°C～75°C
● Storage temperature range:-30°C～85°C
● Operation bandwidth: 3KHz
ICPDAS SG-3071Isolated DC Voltage Input/Output Module
● Three-way isolation: 1000 VDC
● Accuracy: ±0.1% of full range
● Bandwidth: 600 Hz (typical)＠-3 dB
● Operation temperature range:-25 °C ~ 75 °C
● Storage temperature range: -30 °C ~ 85 °C
● Operation bandwidth: 3 kHz
