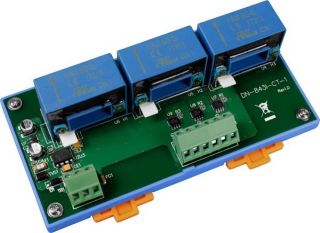

DN-843I-CT-Serie - 3-channel Current Transformer
Levertijd:
2~7 dagen
SKU
DN-843I-CT Serie
DN-843I-CT-Serie:
DN-843I-CT-1 - 3-channel 1 A Current Transformer
DN-843I-CT-10 - 3-channel 10 A Current Transformer
DN-843I-CT-20 - 3-channel 20 A Current Transformer
DN-843I-CT-50 - 3-channel 50 A Current Transformer
● AC/DC Source Input
● Linear Attenuation Ratio
● High Input Impedance
● Operating Temperature Range: -25 C ~ +75 °C
● Easily wire connection
The maximum input range is from ±1 A to +/- 50 A and can be attenuated to from ±1.6 V to ±10 V. The "I" version provide 3000 VDC intra-modules isolation and 3000 VDC channel to channel isolation to avoid the noise interference from inputs to outputs or channel to channel. It can be used with the analog input modules such as I-7017 and I-87017 etc. to measure the high current.
Meer informatie
Art.nr.
DN-843I-CT Serie
Fabrikant
ICPDAS
Power
| Power Consumption | 1 W |
Mechanical
| Dimensions (w x d x h) | 148 x 76 x 39 mm |
Omgeving
| Operating Temperature | -25 °C ~ 75 °C |
| Storage Temperature | -30 °C ~ 75 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
