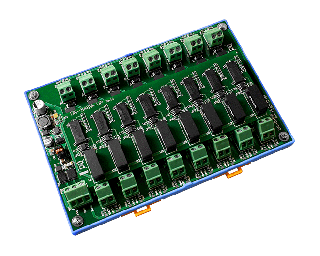

DN-848VI-Serie - 8-channel DC Voltage Attenuator with channel to channel isolation
DN-848VI-10V - 8-channel 10 VDC Voltage Attenuator with channel to channel isolation
DN-848VI-80V - 8-channel 80 VDC Voltage Attenuator with channel to channel isolation
DN-848VI-150V - 8-channel 150 VDC Voltage Attenuator with channel to channel isolation
● Without metal cover
● AC/DC Source Input
● Linear Attenuation Ratio
● High Input Impedance
● 4 kV ESD Protection
● Wide Operating Temperature Range: -25 °C ~ +75 °C
● Easily wire connection
Voltage Attenuator and Current Transformer
DNM-800 series is a Voltage Attenuator and Current Transformer designed for used in high-voltage applications. The current can be converted into +/-10 Vpp attenuated signal, so that a general electronic measuring device is able to read the signals. Compared to ICP DAS power meter products (PM-3033, PM-3133, PM-4324, etc.), in addition to AC signals, the DNM-800 series can convert DC signals as well.
The users can use appropriate ICP DAS Remote I/O Modules such as: M-7017R, I-87017RW, or ET-7217 to measure the converted +/-10 VDC signal via DNM-800 series. And use M-7017RMS or I-87017W-RMS, etc. to measure the AC signals.
By using DNM-800 series, the power data of all kinds of machines and AC/DC motors can be easily measured and retrieved, and then the analyzed data can be used to develop a model to build a failure warning system.

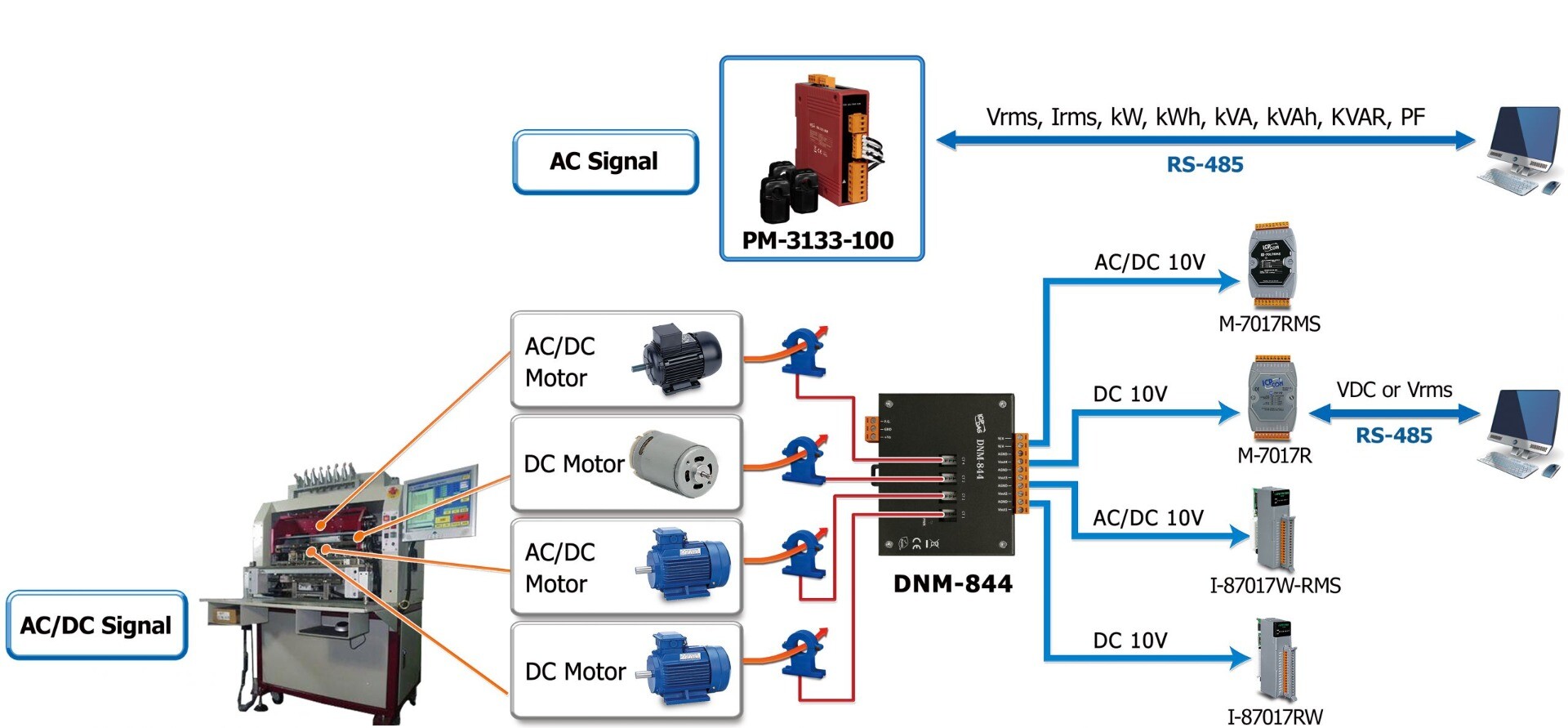

The operating current of AC or DC motor of the machines is converted into +/-10 Vpp attenuated signal via DN-844, and then the +/-10 Vpp signal is converted based on Modbus/RTU protocol for seamless integration with all kinds of PLC or SCADA.
|Power Consumption||1.5 W max. @ 24 V|
|Operating Temperature||-25 °C ~ +75 °C|
|Storage Temperature||-30 °C ~ +75 °C|
|Humidity||5 ~ 95% RH, Non-condensing|
