Relay Output

Relay Output

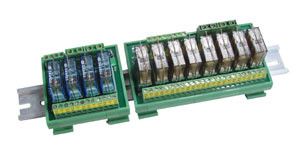

The relay output modules are DIN-Rail slim relays which use the digital output signal of a remote I/O module or of a data acquisition board to drive high loads. All devices include several electrical isolations (channel to channel, input to output), at least 3kV ESD protection, and meet the industrial environmental requirements.
Desc
per pagina

Items 1-10 van 11

Pagina

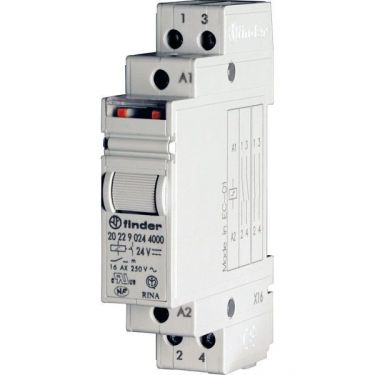

  1. 2 Poles, 16 A Step relays for direct 35 mm Rail (EN 50022) mounting

    2 Poles, 16 A Step relays for direct 35 mm Rail (EN 50022) mounting

    ● Double phase switch
    ● 35 mm rail (EN 50022) mount
    ● 17.4mm wide
    ● Test button with mechanical indicators

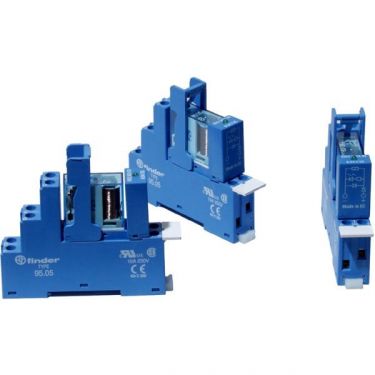

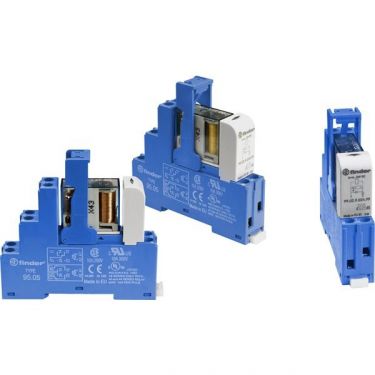

  2. RM-48 Series Relay Interface Modules 10A / 16A

    Relay Interface Modules

    ● Relay interface modules for use with I-7000 remote I/O modules
    ● 15.5 mm wide, 2 pole (48.62) and 35 mm rail (EN 50022) mounting
    ● Supplied with integral coil indication and protection circuit
    ● Instant removal of relay using plastic retaining clip



  3. RM-48 Series Relay Interface Modules 10A / 16A

    Relay Interface Modules

    ● Relay interface modules for use with I-7000 remote I/O modules
    ● 15.5 mm wide, 1 pole ( 48.61), and 35 mm rail ( EN 50022) mounting

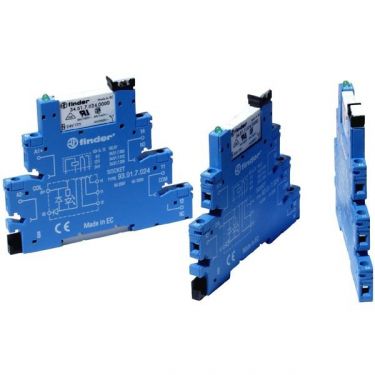

  4. RM-38.61 Series Relay Interface Modules 6A

    Relay Interface Modules

    ● Relay interface modules for use with I-7000 remote I/O modules
    ● 6.2 mm wide, 1 pole and 35 mm rail ( EN 50022) mounting
    ● Supplied with integral coil indication and protection circuit
    ● Instant removal of relay using plastic retaining clip

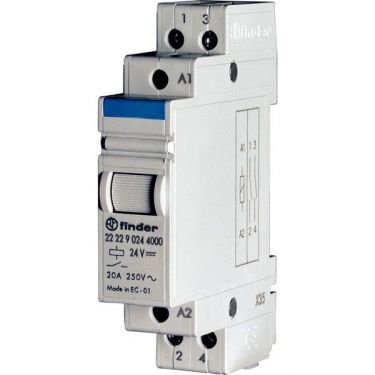

  5. 2 Poles, 20 A relay for direct 35 mm rail (EN 50022) mounting

    2 Poles, 20 A relay for direct 35 mm rail (EN 50022) mounting

    ● Double phase switch 2 NO (DPST-NO)
    ● 35 mm rail (EN 50022) mount
    ● 17.4mm wide
    ● Test button

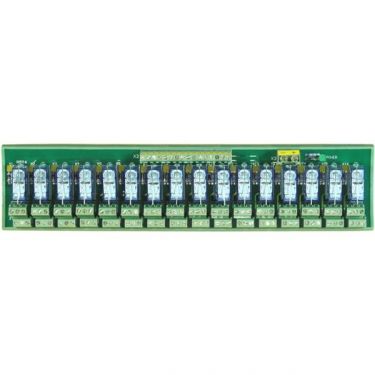

  6. RM-216 16-channel DIN-Rail mounting power relay module, 2 form C

    ● Rate current for each relay: 8 A
    ● Two NC and two NO contacts for each channel
    ● Max. peak current: 14 A
    ● Standard contact material: AgCdO
    ● Input Voltage: DC 24 V
    ● The coil current is 22 mA
    ● Can be used to sink type of digitial output module only
    ● Rated voltage for each relay: 250 VAC



  7. 8-channel DIN-Rail mounting power relay module, 2 form C

    8-channel DIN-Rail mounting power relay module, 2 form C

    ● Rate current for each relay: 8 A
    ● Two NC and two NO contacts for each channel
    ● Max. peak current: 14 A
    ● Standard contact material: AgCdO
    ● Input Voltage: DC 24 V
    ● The coil current is 22 mA
    ● Can be used to sink type of digitial output module only
    ● Rated voltage for each relay: 250 VAC

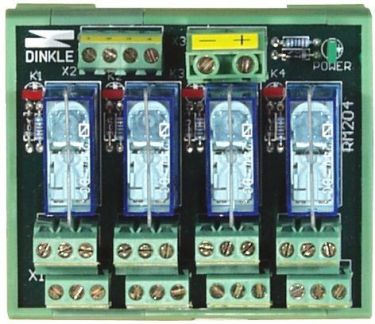

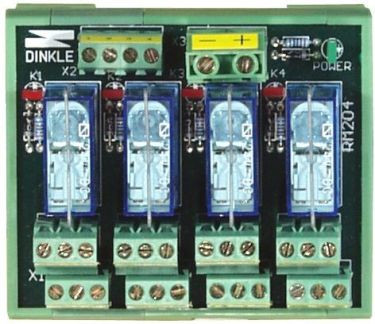

  8. 4-channel DIN-Rail mounting power relay module, 2 form C

    4-channel DIN-Rail mounting power relay module, 2 form C

    ● Rate current for each relay: 8 A
    ● Two NC and two NO contacts for each channel
    ● Max. peak current: 14 A
    ● Standard contact material: AgCdO
    ● Input Voltage: DC 24 V
    ● The coil current is 22 mA
    ● Can be used to sink type of digitial output module only
    ● Rated voltage for each relay: 250 VAC




  9. 16-channel DIN-Rail mounting power relay module, 1 form C

    16-channel DIN-Rail mounting power relay module, 1 form C

    ● Rated current for each relay: 16 A
    ● One NC and one NO contacts for each channel
    ● Max. Peak current: 30 A
    ● Max. Switching voltage: 400 VAC
    ● Standard contact material: AgCd O
    ● Input Voltage: DC 24 V
    ● The coil current is 22 mA.
    ● Can be used to sink type of digitial output module only
    ● Rated voltage for each relay: 250 VAC



  10. 8-channel DIN-Rail mounting power relay module, 1 form C

    8-channel DIN-Rail mounting power relay module, 1 form C

    ● Rated current for each relay: 16 A
    ● One NC and one NO contacts for each channel
    ● Max. Peak current: 30 A
    ● Max. Switching voltage: 400 VAC
    ● Standard contact material: AgCd O
    ● Input Voltage: DC 24 V
    ● The coil current is 22 mA.
    ● Can be used to sink type of digitial output module only
    ● Rated voltage for each relay: 250 VAC
