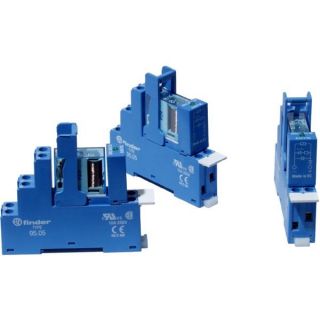

ICPDAS RM-48.61
Relay Interface Modules
● Relay interface modules for use with I-7000 remote I/O modules
● 15.5 mm wide, 1 pole ( 48.61), and 35 mm rail ( EN 50022) mounting
Meer informatie
Mechanical
| Dimensions |
75 x 15.5 x 78.5mm |
|
|
Special
| Relay Interface Modules 10 - 16 A |
For PLC systems. LED and coil protection modules. Instant removal of relay using plastic retaining clip. |
| Contact Specification |
| Contact configuration |
1CO (SPDT) |
| Rated current |
16A |
| Nominal voltage |
250 V |
| Max. voltage |
400 V |
| Rated load in AC1 |
4000VA |
| Standard contact material |
AgNi / AgCdO |
| Coil Specification |
|
| Nominal voltage |
24V DC |
| Rated DC power |
0.65 mW |
| Technical Data |
|
| Insulation according to EN 61810-5 |
3.6 kV/3 |
| Surge test (1.2/50μs) between coil and contacts |
6 kV (8 mm) |
| Dielectric strength: open contacts |
1000VAC |
| Mechanical life AC/DC |
10.000.000 cycles / 20.000.000 cycles |
| Electrical life at rated load in AC1 |
200.000/100.000 cycles |
| Ambient temperature range |
-40 °C ~ +70 °C |
|
|
