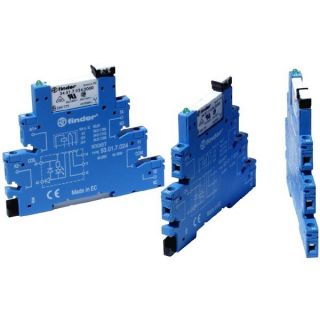

ICPDAS RM-38.61
Levertijd:
2~7 dagen
SKU
RM-38.61
Relay Interface Modules
● Relay interface modules for use with I-7000 remote I/O modules
● 6.2 mm wide, 1 pole and 35 mm rail ( EN 50022) mounting
● Supplied with integral coil indication and protection circuit
● Instant removal of relay using plastic retaining clip
Meer informatie
Art.nr.
RM-38.61
Fabrikant
ICPDAS
Mechanical
| Dimensions | 76.5 x 6.5 x 89mm |
Special
| Contact Configuration | 1CO (SPDT) |
| Rated current | 6A |
| Nominal voltage | 250 ~ 400V |
| Max. voltage | 1500V |
| Standard contact material | AgSnO2 |
| Coil Specification | |
| Nominal voltage | 24V DC |
| Rated DC power | 0.17 mW |
| Technical Data | |
| Insulation according to EN 61810-5 | 3.6 kV/3 |
| Surge test (1.2/50μs) between coil and contacts | 1000 kV |
| Dielectric strength: open contacts | 1000VAC |
| Mechanical life AC/DC | 10.000.000 cycles |
| Electrical life at rated load in AC1 | 60.000 cycles |
| Ambient temperature range | -40 °C ~ +70 °C |
