ICPDAS RM-48.62

Levertijd:
2~7 dagen
SKU
RM-48.62

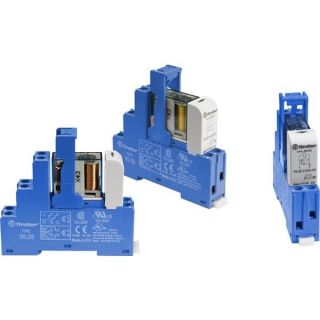

Relay Interface Modules

● Relay interface modules for use with I-7000 remote I/O modules
● 15.5 mm wide, 2 pole (48.62) and 35 mm rail (EN 50022) mounting
● Supplied with integral coil indication and protection circuit
● Instant removal of relay using plastic retaining clip





SPECIFICATIES
Meer informatie
Art.nr.
RM-48.62
Fabrikant
ICPDAS
Land van herkomst
Taiwan
Mechanical
Dimensions 75 x 15.5 x 78.5mm
Special
Relay Interface Modules 10 - 16 A For PLC systems. LED and coil protection modules. Instant removal of relay using plastic retaining clip.
Contact Specification
Contact configuration 2CO (SPDT)
Rated current 10A
Nominal voltage 250 V
Max. voltage 400 V
Rated load in AC1 2500VA
Standard contact material AgNi
Coil Specification
Nominal voltage 24V DC
Rated DC power 0.65 mW
Technical Data
Insulation according to EN 61810-5 3.6 kV/3
Surge test (1.2/50μs) between coil and contacts 6 kV (8 mm)
Dielectric strength: open contacts 1000VAC
Mechanical life AC/DC 10.000.000 cycles / 20.000.000 cycles
Electrical life at rated load in AC1 150.000/100.000 cycles
Ambient temperature range -40 °C ~ +70 °C
Samenstellen
ICPDAS RM-48.62 aanpassen
RM-48 2CO 10A (4 piece in one box) (RoHS)

* Verplichte velden

Uw configuratie
RM-48 Series Relay Interface Modules 10A / 16A
ICPDAS RM-48.62
