Thermocouple

10-channel Universal Analog Input Module

● 10-channel Analog Input
● Individual Channel Configuration
● Open Thermocouple Detection
● Temperature Outputs Consistency
● Stable Temperature Output in the Field
● 240 Vrms Overvoltage Protection
● Jumper Selectable for Voltage or Current Input
● 4 kV ESD Protection
● Dual Watchdog
● 3000 VDC Intra-Module Isolation, Field to Logic
● Wide Range Operating Temperature: -25 °C ~ +75 °C

One-channel Thermocouple Input Module with LED Display

● 3000 VDC Isolated analog input.
● 24-bits sigma-delta ADC to provide excellent accuracy.
● Thermocouple direct connect with built-in CJC
● Software calibration
● Dual Watchdog

8-channel Thermocouple Input Module High Overvoltage Protection

● 8-channel Thermocouple Input
● Individual Channel Configuration
● Open Thermocouple Detection
● Temperature Outputs Consistency
● Stable Temperature Output in the Field
● 4 kV ESD Protection
● Dual Watchdog
● 3000 VDC Intra-Module Isolation, Field to Logic
● Wide Range Operating Temperature: -25 °C ~ +75 °C

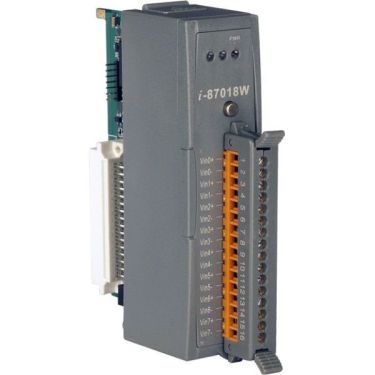

8-channel Thermocouple Input Module

8-channel Thermocouple Input Module

8-channel Universal Analog Input Module with High Voltage Protection

● Input Type: mV, V, mA, Thermocouple
● Voltage Range: ±15 mV, ±50 mV, ±100 mv, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V
● Current Range: ±20 mA (jumper selectable)
● Thermocouple Type: J,K,T,E,R,S,B,N,C,L,M,L2
● Sampling Rate: 8 samples/sec. total
● -3 dB Bandwidth: 5.24 Hz
● Accuracy: ±0.1%
● Individual Channel Configurable
● Common Mode Rejection: Typical 86 dB
● Voltage Input Impedance: >1 MΩ
● Dual Watchdog

10-channel Thermocouple Input Module

● 3000 VDC Isolated analog input
● 24-bits sigma-delta ADC to provide excellent accuracy
● Thermocouple direct connect with built-in CJC
● Software calibration
● Dual Watchdog

8-channel Analog Input Module with High Voltage Protection (Gray Cover)

● Input Channels: 8 differential
● Overvoltage Protection: ±240 Vrms
● Input Types: mV, V, mA (requires optional external 125 Ω resistor), Thermocouple
● Input Ranges: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±20 mA
● Thermocouple Types: J, K, T, E, R, S, B, N, C
● Sampling Rate: 10 samples/sec. total

8-channel Thermocouple Input Module (Gray Cover)

● Input channels: 6 differential and 2 single-ended or 8 differential (jumper selectable)
● Input Types: mV, V, mA (requires optional external 125 Ω resistor), Thermocouple
● Input Ranges: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±20 mA
● Thermocouple Types: J, K, T, E, R, S, B, N, C
● Sampling Rate: 10 samples/sec. total

1-channel Thermocouple Input Module with LED Display


● 3000 VDC Isolated analog input.
● 24-bits sigma-delta ADC to provide excellent accuracy.
● Thermocouple direct connect with built-in CJC
● Software calibration
● Dual Watchdog

1-channel Thermocouple Input Module

● 3000 VDC Isolated analog input.
● 24-bits sigma-delta ADC to provide excellent accuracy.
● Thermocouple direct connect with built-in CJC
● Software calibration
● Dual Watchdog

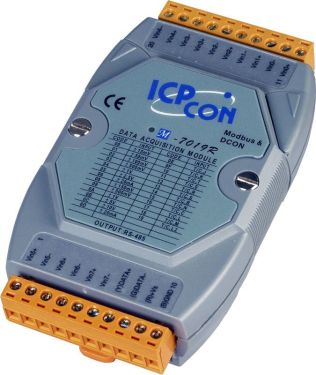

8-channel universal Analog Input Module with High voltage Protection (Gray Cover)

● Input Channels: 8 differential
● Input Types: mV, V, mA (jumper selectable), Thermocouple
● Input Ranges: ±15 mV, ±50 mV, ±100 mV, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA
● Thermocouple Types: J, K, T, E, R, S, B, N, C, L, M, L2
● Sampling Rate: 8 samples/sec. total
● Accuracy: ±0.1%
● Overvoltage Protection: ±240 Vrms
● Isolation Voltage: 3000 VDC

10-channel Thermocouple Input Module with High Voltage Protection

● 3000 VDC Isolated analog input.
● 24-bits sigma-delta ADC to provide excellent accuracy.
● Thermocouple direct connect with built-in CJC
● Software calibration
● Dual Watchdog

8 Channel Thermocouple Input Module with High Voltage Protection

● 3000 VDC Isolated analog input.
● 24-bits sigma-delta ADC to provide excellent accuracy.
● Thermocouple direct connect with built-in CJC
● Software calibration
● Dual Watchdog

8 Channel Thermocouple Input Module with Extra Thermodouple Input Types

● 3000 VDC Isolated analog input
● 24-bits sigma-delta ADC to provide excellent accuracy
● Thermocouple direct connect with built-in CJC
● Software calibration
● Dual Watchdog

8-channel Analog Input Module

● 3000 VDC Isolated analog input.
● 24-bits sigma-delta ADC to provide excellent accuracy.
● Thermocouple direct connect with built-in CJC
● Software calibration
● Dual Watchdog

One-channel Thermocouple Input Module

● 3000 VDC Isolated analog input.
● 24-bits sigma-delta ADC to provide excellent accuracy.
● Thermocouple direct connect with built-in CJC
● Software calibration
● Dual Watchdog

One-channel Thermocouple Input Module with LED Display

● 3000 VDC Isolated analog input.
● 24-bits sigma-delta ADC to provide excellent accuracy.
● Thermocouple direct connect with built-in CJC
● Software calibration
● Dual Watchdog

1-channel Thermocouple Input Module

● 3000 VDC Isolated analog input.
● 24-bits sigma-delta ADC to provide excellent accuracy.
● Thermocouple direct connect with built-in CJC
● Software calibration
● Dual Watchdog
