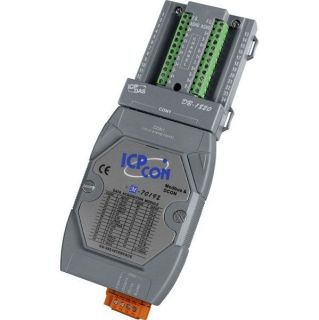

ICPDAS M-7019Z
10-channel Universal Analog Input Module
● 10-channel Analog Input
● Individual Channel Configuration
● Open Thermocouple Detection
● Temperature Outputs Consistency
● Stable Temperature Output in the Field
● 240 Vrms Overvoltage Protection
● Jumper Selectable for Voltage or Current Input
● 4 kV ESD Protection
● Dual Watchdog
● 3000 VDC Intra-Module Isolation, Field to Logic
● Wide Range Operating Temperature: -25 °C ~ +75 °C
The M-7000 series is a family of network data acquisition and control modules that support Modbus RTU. They can be remotely controlled using a set of commands called DCON protocol. With the Modbus RTU protocol, it can easily communicate with most popular SCADA/ HMI software and PLCs.
ICPDAS Analog Input Module M-7019Z is a 10-channel universal analog input module with an RS-485 interface and 10-channel thermocouple input module. The analog input range is software selectable and supports ±15 mV, ±100 mV, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±V10, ±20 mA, 0 ~ 20 mA, and thermocouple of type J, K, T, E, R, S, B, N, C, L, M, and LDIM43710. I-87019ZW uses external terminal design, and takes thermocouple temperature output consistency.
APPLICATIONS:
● Building Automation
● Factory Automation
● Machine Automation
● Remote Maintenance
● Remote Diagnosis
● Testing Equipment
| Input Channels | 10 differential | ||||
| Input Type |
|
||||
| Resolution | 16-bit | ||||
| Sampling Rate | 10 Samples/Sec. (Total) | ||||
| Accuracy | 0.1% of FSR | ||||
| Zero Drift | ±20 μV/°C | ||||
| Span Drift | ±25 ppm/°C | ||||
| Common Mode Rejection | 86 dB | ||||
| Normal Mode Rejection | 100 dB | ||||
| Input Impedance |
|
||||
| Individual Channel Configurable | Yes | ||||
| Open Thermocouple Detection | Yes, Setting Enable/Disable by software | ||||
| Overvoltage Protection | 240 Vrms | ||||
| ESD Protection | ±4 kV, Contact for each terminal | ||||
| Intra-module Isolation, Field to Logic | 3000 VDC |
| Interface | RS-485 |
| Format | N, 8, 1; N, 8, 2; E, 8, 1; O, 8, 1 |
| Baud Rate | 1200 ~ 115200 bps |
| Dual Watchdog | Yes, Module (1.6 sec) and Communication (Programable) |
| 1 LED | Power/Communication Indicator |
| Support Modbus and DCON Protocol | Yes |
| Input | +10 ~ +30 VDC |
| Power Consumption | 1.8 W (max.) |
| Dimensions (w x l x h) |
|
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
