Input Modules
ICPDAS analoge invoermodules bieden een breed scala aan bronnen, waaronder thermokoppels, RTD's, thermistors en algemene analoge signalen. Deze modules maken gebruik van het RS-485-communicatieprotocol, de meest gebruikte bidirectionele, gebalanceerde transmissielijnstandaard in de industrie. Ze ondersteunen ook het Modbus/RTU-protocol als het mechanisme voor externe gegevensoverdracht. Met ICPDAS analoge input modules kunt u nauwkeurig en betrouwbaar analoge signalen verzamelen en verwerken voor verschillende industriële toepassingen.

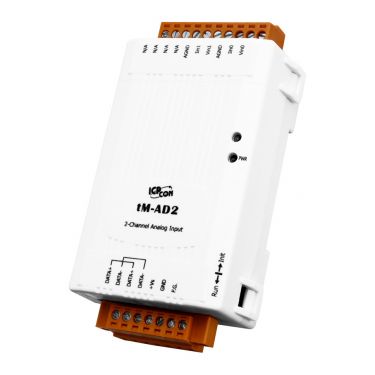

ICPdas tM-AD2 - analog input module2-channel Isolated Analog Input Module with High Voltage Protection(RoHS)
● 2-channel Single-ended Inputs
● Voltage Inputs and Current Inputs
● 120V DC Overvoltage Protection
● Resolution: 14/12 bits
● Adjustable Sampling Rate
● 4 kV ESD and EFT Protecton
● 3 kV Surge Protection
● Dual Watchdog
● 2500 VDC Intra-module Isolation
● Wide Operating Temperature Range: -25 ~ +75°C
ICPdas tM-AD4P2C2 - 4-channel Analog Input, 2-channel Digital Input and 2-channel Digital Output Module4-channel Analog Input, 2-channel Digital Input and 2-channel Digital Output Module
● Multifunction (4 AI, 2 DI and 2 DO)
● 2 Voltage Input Channels and 2 Current Input Channels
● Digital Input Channels can be used as 16-bit Counters
● Digital Output Channels can be used as Voltage Input Limit Alarms
● 4 kV ESD and EFT Protection
● 120 VDC Overvoltage Protection
● Adjustable Sampling Rate
● Dual Watchdog
● 2500 VDC Intra-module Isolation
● Configurable Power-on Value Settings
● Configurable Safe Value Settings
● Wide Operating Temperature Range: -25 ~ +75°C

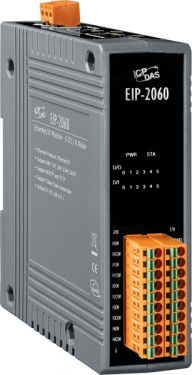

ICPDAS EIP-2060Isolated 6-ch DI and 6-ch Relay Output EtherNet/IP I/O module
● Transfer protocol: EtherNet/IP
● Powerful 32-bit MCU handles efficient network traffic
● 10/100 Base-TX Ethernet, RJ-45 x 2 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
● Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
● Easy firmware update via Ethernet
● Removable terminal block connector
● RoHS compliant with Halogen-free
● LED display to indicate the I/O status

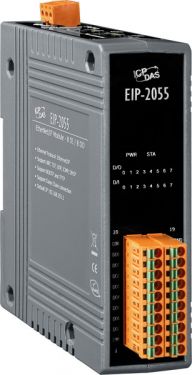

ICPDAS EIP-2055Isolated 8-ch DI and 8-ch DO EtherNet/IP I/O module Transfer protocol: EtherNet/IP
● Powerful 32-bit MCU handles efficient network traffic
● 10/100 Base-TX Ethernet, RJ-45 x 2 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
● Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols
● Easy firmware update via Ethernet
● Removable terminal block connector
● RoHS compliant with Halogen-free
● LED display to indicate the I/O status
ICPDAS CAN-2015CCANopen Slave Module of 8-channel RTD Inputs
● Default EDS file
● Passed the validation of CiA CANopen Conformance
● Test tool
● ESD Protection 4 KV Contact for each channel
● Support Power Supply +10 ~ +30 VDC
● Support CiA-301 v4.02, CiA-401 v2.1
● Support Dynamic PDO

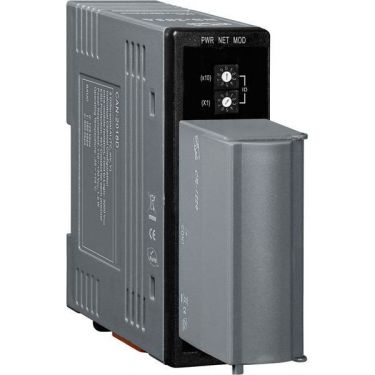

ICPDAS CAN-2018DDeviceNet Slave Module of 8-channel thermocouple input
● DeviceNet general I/O slave devices
● Comply with DeviceNet specification Volume I,
● Release 2.0 & Volume II, Release 2.0, Errata 5
● Group 2 Only Server (non UCMM-capable)
● Support Predefined Master/Slave Connection Set
● Connection supported:
● 1 connection for Explicit Messaging
● 1 connection for Polled I/O
● 1 connection for Bit-Strobe I/O connection
● Support DeviceNet heartbeat and shutdown messages
● Provide EDS file for DeviceNet master interface
ICPDAS tM-DA1P1R11-channel Analog Output, 1-channel Digital Input and 1-channel Relay Output Module
● 1 Analog Output Channel
● 1 Digital Input Channel
● 1 Relay Output Channel
● Dual Watchdog
● Configurable Power-on Value Settings
● Configurable Safe Value Settings
● 4 kV ESD Protection
● 3 kV Intra-module Isolation
● Wide Operating Temperature Range: -25 ~ +75°C
● RoHS Compliant
ICPDAS M-70038-channel AI and 4-channels Relay Output Module
● Voltage and Current Inputs
● ±240 Vrms Overvoltage Protection
● High Resolution: 16-bit
● 2500 VDC Intra-Module Isolation
● Sink and Source Type Digital Inputs
● Photocouple Isolation
● Support Relay Outputs
● DIN-Rail Mountable
● Dual Watchdog
● Operating Temperature Range: -25 °C ~ +75 °C

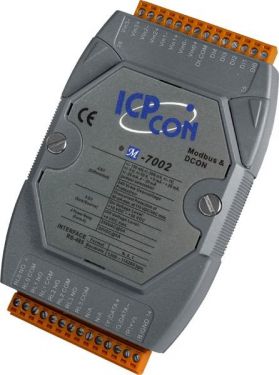

ICPDAS M-70024-channel AI, 5-channel DI and 4-channel Relay Output Module
● Voltage and Current Inputs
● ±240 Vrms Overvoltage Protection
● High Resolution: 16-bit
● 2500 VDC Intra-Module Isolation
● Sink and Source Type Digital Inputs
● Photocouple Isolation
● Support Relay Outputs
● DIN-Rail Mountable
● Dual Watchdog
● Operating Temperature Range: -25 °C ~ +75 °C
ICPDAS I-87019PW8-channel Thermocouple Input Module with High Overvoltage Protection
● 8-channel Analog Input
● Individual Channel Configuration
● Open Thermocouple Detection
● Temperature Output Consistency
● Stable Temperature Output in the Field
● 240 Vrms Overvoltage Protection
● Jumper Selectable Voltage or Current Input
● 4 kV ESD Protection
● Dual Watchdog
● 3000 VDC Intra-Module Isolation, Field-to-Logic
● Wide Operating Temperature Range: -25 °C ~ +75 °C
ICPDAS I-87017ZW10/20-channel Analog Input Module with High Voltage Protection
● 10-channel Differential or 20-channel Single-ended Inputs
● Voltage and Current Inputs
● 240 Vrms Overvoltage Protection
● High Resolution: 16 bits
● Adjustable Sampling Rate
● 4 kV ESD Protection
● 3000 VDC Intra-module Isolation
● Dual Watchdog
● Operating Temperature Range: -25 °C ~ +75 °C
ICPDAS tM-TH88-channel Isolated Thermistor Input Module with High Voltage Protection
● 8-channel
● Thermistor Inputs
● 120 VDC Overvoltage Protection
● Resolution: 16-bits
● User-Defined
● 4 kV ESD and EFT Protecton
● 3 kV Surge Protection
● Dual Watchdog
● 2500 VDC Intro-module Isolation
● Cost-effective
● Wide Operating Temperature Range: -25 °C ~ +75 °C
ICPDAS tM-AD8C8-channel Isolated Current Module
● 8-channel Single-ended Inputs
● Current Inputs
● Resolution: 14/12 bits
● Adjustable Sampling Rate
● 4 kV ESD and EFT Protecton
● 3 kV Surge Protection
● Dual Watchdog
● 2500 VDC Intra-module Isolation
● Cost-effective
● Wide Operating Temperature Range: -25 °C ~ +75 °C

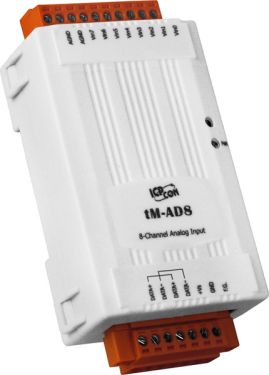

ICPDAS tM-AD88-channel Isolated Analog Input Module with High Voltage Protection
● 8-channel Single-ended Inputs
● Voltage Inputs
● 120 VDC Overvoltage Protection
● Resolution: 14/12 bits
● Adjustable Sampling Rate
● 4 kV ESD and EFT protection
● 3 kV Surge Protection
● Dual Watchdog
● 2500 VDC Intra-module Isolation
● Cost-effective
● Wide Operating Temperature Range: -25 °C ~ +75 °C

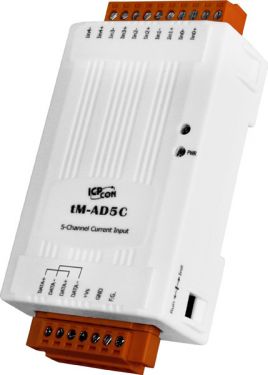

ICPDAS tM-AD5C5-channel Isolated Current Input Module
● 5-channel Differential Inputs
● Current Inputs
● 120 VDC Overvoltage Protection
● Resolution: 14/12 bits
● Adjustable Sampling Rate
● 4 kV ESD and EFT Protecton
● 3 kV Surge Protection
● Dual Watchdog
● 2500 VDC Intra-module Isolation
● Cost-effective
● Wide Operating Temperature Range: -25 °C ~ +75 °C
ICPDAS tM-AD55-channel Isolated Analog Input Module with High Voltage Protection
● 5-channel Differential Inputs
● Voltage Inputs
● 120 VDC Overvoltage Protection
● Resolution: 14/12 bits
● Adjustable Sampling Rate
● 4 kV ESD and EFT Protecton
● 3 kV Surge Protection
● Dual Watchdog
● 2500 VDC Intra-module Isolation
● Cost-effective
● Wide Operating Temperature Range: -25 °C ~ +75 °C

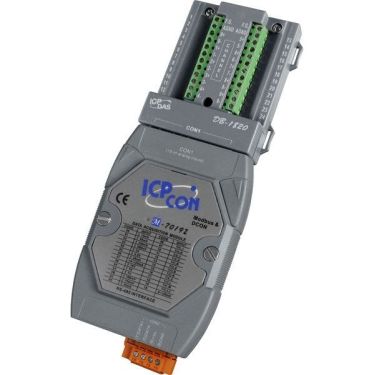

ICPDAS M-7019Z10-channel Universal Analog Input Module
● 10-channel Analog Input
● Individual Channel Configuration
● Open Thermocouple Detection
● Temperature Outputs Consistency
● Stable Temperature Output in the Field
● 240 Vrms Overvoltage Protection
● Jumper Selectable for Voltage or Current Input
● 4 kV ESD Protection
● Dual Watchdog
● 3000 VDC Intra-Module Isolation, Field to Logic
● Wide Range Operating Temperature: -25 °C ~ +75 °C
ICPDAS CAN-2017C8-channel 14-bit analog input module
● NMT Slave
● NMT Error Control support Guarding and Heartbeat
● Provide default EDS file
● Passed the validation of CiA CANopen Conformance
● Test tool
● Sampling mode support normal and fast mode
● ESD Protection 4 KV Contact for each channel
● Support Power Supply +10 ~ +30 VDC
● Support CiA DS-301 v4.02, DSP-401 v2.1
● Support Dynamic PDO
