Strain Gauge

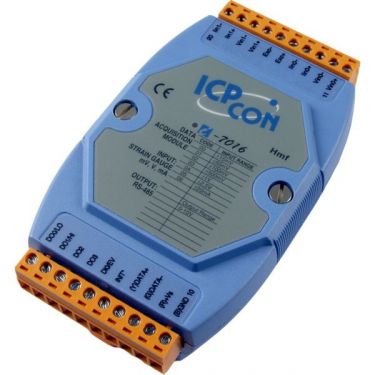

2-channel Strain Gauge Input Module with LED Display

● Resolution: 16-bit
● Channels: 2
● Input type: mV, V and mA
● Input range: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±20 mA
● Isolation: 3000 V
● Sampling rate: 10 Hz

2-channel Strain Gauge Input Module

● Resolution: 16-bit
● Channels: 2
● Input type: mV, V and mA
● Input range: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±20 mA
● Isolation: 3000 V
● Sampling rate: 10 Hz

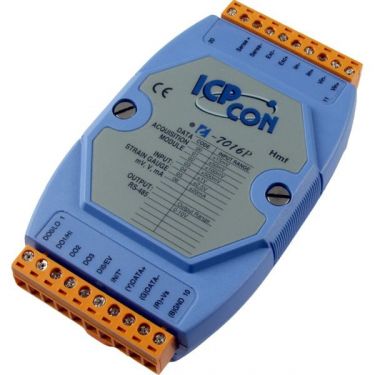

1-channel Strain Gauge Input Module with LED Display (6 wires)

● Channel: 1
● Requires two more cables for remote sensing
● Resolution: 16-bit
● Input type: mV, V and mA
● Input range: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±20 mA
● Isolation: 3000 V
● Sampling rate: 10 Hz
● Dual Watchdog

2-channel Strain Gauge Input Module with LED Display

● Resolution: 16 bit
● Channels: 2
● Input type: mV, V and mA
● Input range: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±20 mA
● Isolation: 3000 V
● Sampling rate: 10 Hz
● Dual Watchdog

1-channel Strain Gauge Input Module (6 wires)

● Channel: 1
● Requires two more cables for remote sensing
● Resolution: 16-bit
● Input type: mV, V and mA
● Input range: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±20 mA
● Isolation: 3000 V
● Sampling rate: 10 Hz
● Dual Watchdog

2-channel Strain Gauge Input Module

● Resolution: 16-bit
● Channels: 2
● Input type: mV, V and mA
● Input range: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±20 mA
● Isolation: 3000 V
● Sampling rate: 10 Hz
● Dual Watchdog
