As a leading automation solutions provider, ICP DAS not only provides PAC solutions, but also develops PC based solutions for machine automation applications.

For PC based solutions, ICP DAS has provided VISION BOX fan-less embedded platforms, PCI bus motion control cards and MAVIS IEEE 1394 industrial camera series.

The VISION BOX series is a fan-less platform designed and is ideally to work with MAVIS IEEE 1394 industrial camera for AOI (Automation Optical Inspection) applications. Meanwhile VISION BOX also provides one standard PCI bus for function extension. It could hold plug-in motion control card such as: PISO-PS200 or PISO-PS400 as well as I/O or encoder card for machine automation inspection applications.

In addition, we also offer a variety of quick connect terminal blocks for various servo motors including Mitsubishi, Panasonic, Yaskawa, and Delta, etc. Thus, helps customers quickly implement the wiring and reduce wrong wiring.



Desc
per pagina

9 producten

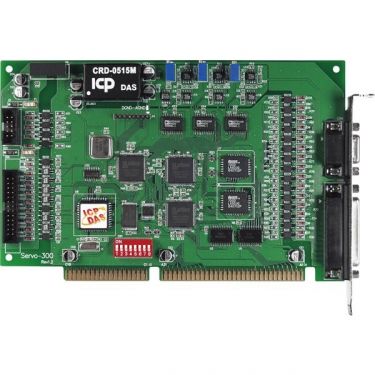

  1. 3-Axis V-command Servo motor board

    3-Axis V-command Servo motor board

    ● 3-axis V-command servo motor board
    ● Simulation / open loop / close loop mode
    ● Command-type execution, 49 commands
    ● Embedded CPU
    ● Linear interpolation, circular interpolation
    ● Programmable trapezoidal speed profile
    ● Programmable DDA cycle
    ● Programmable direction configuration
    ● Programmable 2 speed home return, home preset
    ● 2500 points per axis pitch error compensation
    ● Home, forward, backward limit switches per axis
    ● Limit switch auto-protection
    ● Hardware failure detection
    ● 8 digital input, 7 digital output
    ● Software / hardware emergency stop
    ● 2500Vrms optical couple
    ● DOS, Windows 95, Windows NT driver
    ● BCB, VB, Delphi, LabView driver
    ● Programmable limit switch normal state: N.O. (normal open) or N.C. (normal close)



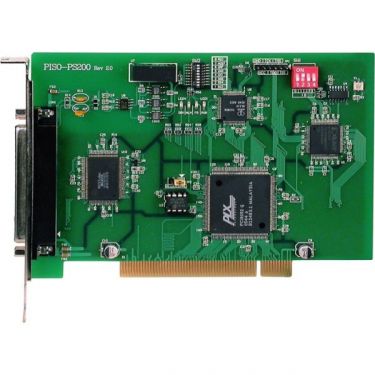

  2. 2-axis, High-speed Stepper Motor Controller

    2-axis, High-speed Stepper Motor Controller

    ● 2-axis independent, simultaneous stepper motor control/servo motor control (pulse input type)
    ● DOS, windows 95, windows NT driver
    ● Embedded Micro-processor
    ● Command type interface
    ● Linear, circular interpolation
    ● Automatic trapezoidal acceleration/deceleration
    ● Output polarity can be programmable
    ● 5 optical isolated digital inputs per axis for limit switches

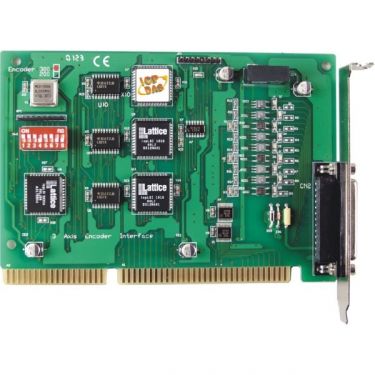

  3. 3-axis encoder input board

    3-axis encoder input board

    ● Accepts inputs from incremental or quadrature encoders
    ● 3 independent axis
    ● Max. quadrature input frequency: 1MHz
    ● Counts per encoder cycle : X1 , X2, X4 (Softwareselectable)
    ● Encoder input modes: Quadrature , Up/Down , Pulse/Direction

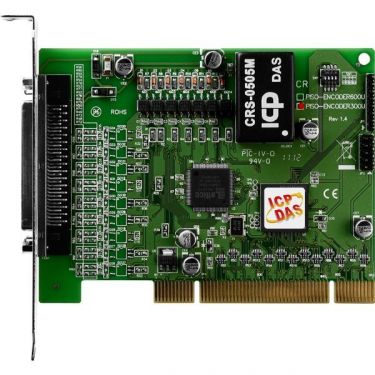

  4. PCI Bus 3-axis encoder input board

    PCI Bus 3-axis encoder input board

    ● PCI bus
    ● 3-axis Encoder counter
    ● True 32 bits counter
    ● Maximum counting rate: 1MHz.
    ● Third-order internal digital filter
    ● Counting mode: Quadrant, CW_CCW, PULSE_DIR
    ● A+, A-, B+, B-, C+, C- inputs
    ● Programmable reset counter function
    ● Index (C channel) reset counter function
    ● Hardware reset (HR1~HR6), reset counter function
    ● SCSI-II 68-pin connector



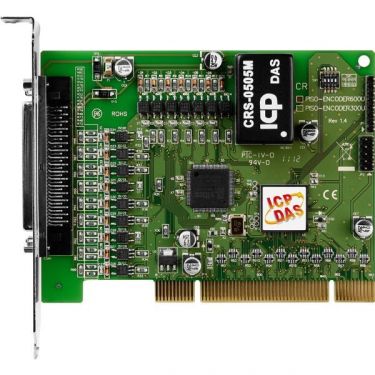

  5. PCI Bus 6 Axis encoder input board

    PCI Bus 6 Axis encoder input board

    ● PCI bus
    ● 6-axis Encoder counter
    ● True 32 bits counter
    ● Maximum counting rate: 1MHz
    ● Third-order internal digital filter
    ● Counting mode: Quadrant, CW_CCW, PULSE_DIR
    ● A+, A-, B+, B-, C+, C- inputs
    ● Programmable reset counter function
    ● Index (C channel) reset counter function
    ● Hardware reset (HR1~HR6), reset counter function
    ● SCSI-II 68-pin connector

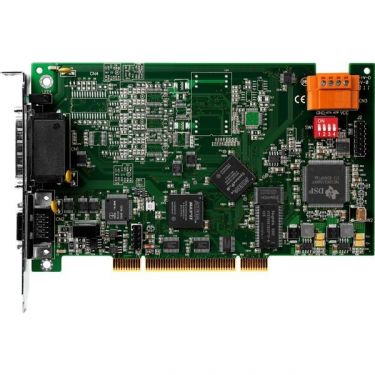

  6. High-Speed, DSP-based, 6-Axis Motion Control Card with FRnet

    High-Speed, DSP-based, 6-Axis Motion Control Card with FRnet

    ● DSP-based motion control card with PCI interface
    ● Independent 6-axis motion control
    ● Support both full-closed and semi-closed control modes
    ● Maximum pulse output frequency: 4Mpps
    ● Maximum Encoder input frequency: 12Mpps
    ● 4-step home mode with auto-searching
    ● 2~6-axis linear interpolation function
    ● 2/3-axis circular interpolation function
    ● Programmable T/S-curve acceleration and deceleration
    ● Change speed and position on the fly
    ● High-speed position latch and compare trigger
    ● Home sensor, positive and negative limit sensors accepted for each axis
    ● Support fully-functional manual-pulse-generator and jog functions
    ● Expandable distributed I/Os: 128 DI & 128 DO via two-wired FRnet interface

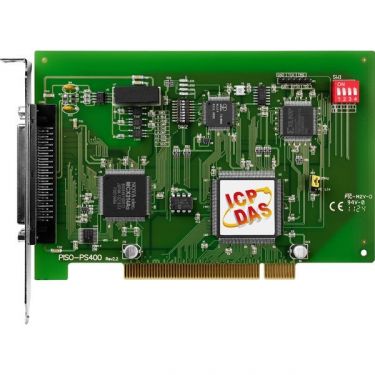

  7. High Speed 4-axis Motion Control Module

    High Speed 4-axis Motion Control Module

    ● Independent 4-axis motion control
    ● Support for hand wheel and jog functions
    ● 2/3-axis linear interpolation function
    ● 2-axis circular interpolation function
    ● Continuous interpolation function
    ● Programmable T/S-curve acceleration and deceleration
    ● A maximum of 4M pps pulse output rate for each axis
    ● Pulse output types: CW/CCW or Pulse/Direction
    ● 32-bit encoder counter for each axis
    ● Encoder pulse input types: A/B phase or Up/Down
    ● Programmable automatic homing for each axis
    ● Position comparison management and software limits
    ● Many synchronous actions (event-triggered actions)
    ● Support for hand wheel and jog functions
    ● 2/3-axe/s linear interpolation function
    ● Expandable remote I/O: 128 DI and 128 DO via two-wired FRnet interface

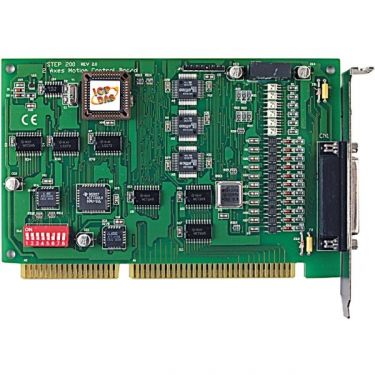

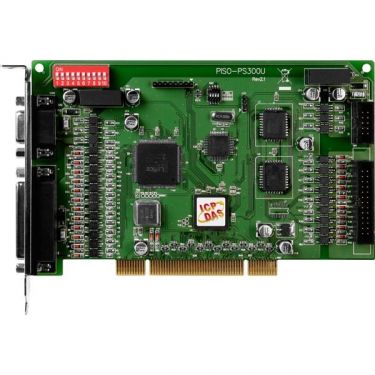

  8. 3-axis High Speed Stepping/Servo Control Board

    3-axis High Speed Stepping/Servo Control Board

    ● 3-axis Pulse-command servo motor board
    ● Embedded CPU
    ● Max. Pulse rate: 1 MHz
    ● 3 Axis linear interpolation, Circular interpolation
    ● Programmable trapezidal speed profile
    ● Programmable DDA cycle
    ● Hardware emergency stop
    ● DOS, Windows 95, Windows NT driver
    ● 8 digital input, 7 digital output
    ● Dimensions: 208 x 121mm

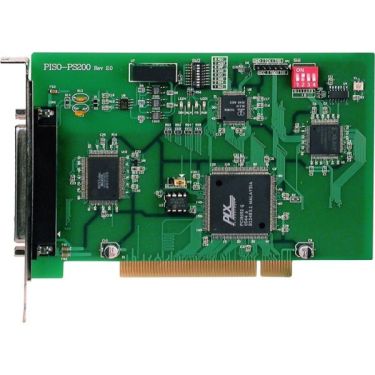

  9. High Speed 2-axis Motion Control Module

    High Speed 2-axis Motion Control Module

    ● Independent 2-axis motion control
    ● Support for hand wheel and jog functions
    ● 2-axis linear interpolation function
    ● 2-axis circular interpolation function
    ● Continuous interpolation function
    ● Programmable T/S-curve acceleration and deceleration
    ● A maximum of 4M pps pulse output rate for each axis
    ● Pulse output types: CW/CCW or Pulse/Direction
    ● 32-bit encoder counter for each axis
    ● Encoder pulse input types: A/B phase or Up/Down
    ● Programmable automatic homing for each axis
    ● Position comparison management and software limits
    ● 2-axis linear interpolation function
    ● Expandable remote I/O: 128 DI and 128 DO via two-wired FRnet interface
