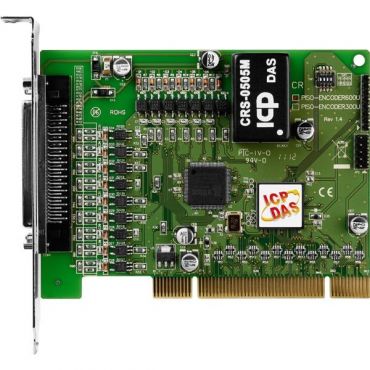

ICPDAS PISO-ENCODER300

Levertijd:

2~7 dagen

SKU

PISO-ENCODER300

PCI Bus 3-axis encoder input board

● PCI bus
● 3-axis Encoder counter
● True 32 bits counter
● Maximum counting rate: 1MHz.
● Third-order internal digital filter
● Counting mode: Quadrant, CW_CCW, PULSE_DIR
● A+, A-, B+, B-, C+, C- inputs
● Programmable reset counter function
● Index (C channel) reset counter function
● Hardware reset (HR1~HR6), reset counter function
● SCSI-II 68-pin connector

Details

The PISO-ENCODER300 has a 3-axis encoder counter and each axis has a 32-bits, true counter with maximum counting rate of 1MHz. The counting mode has 3 types of selections: 1.QUADRANT mode, 2.CW_CCW mode, 3.PULSE_DIR mode.

The PISO-ENCODER300 provides 3 kinds of counter reset mode: 1.register reset, 2.index reset, 3. hardware reset. The Index reset resets by using a C+/C- channel, which will reset every revolution. The hardware reset resets by an external pin (HR1~HR6). The HR1~HR6 also can be a digital input. The PISO-ENCODER300 also provides 8-channel digital outputs. 2500Vrms photo couplers isolate the digital I/O.This board provides DOS, windows 95 and windows NT drivers.

SOFTWARE:

● Toolkit for Windows 95/98/ME
● ToolKit for Windows NT4.0/2000/XP
● Driver/Dll/Lib for Windows 2000/XP
● Library for Dos
● Software Development Kit for LabVIEW

SPECIFICATIES

Meer informatie

Art.nr.

PISO-ENCODER300

Fabrikant

ICPDAS

Algemeen

● Number of axis: 3

● PCI bus

● Counter Resolution: 32-bit

● Maximum pulse rate: 1MHz

● 8 digital outputs

● 2500V optical isolation

● Connector: SCSI-II 68-pin female connector

● Power Consumption: +5V @ 500mA

● Operating Temperature: 0 °C ~ 60 °C

● Storage Temperature: -20 °C ~ 80 °C

● Humidity: 0 ~ 90% RH, non-condensing

● Dimensions: 157 x 106mm
