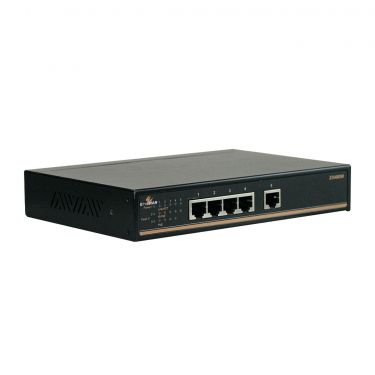

EtherWAN Series

Web-smart Industrial 5-port 10/100BASE PoE Ethernet Switch

● Provides flexibility of 5 Ethernet ports that configure in combinations of copper and fiber optic interfaces
● -40°C to 75°C (-40°F to 167°F) and is tested for functional operation @-40°C to 85°C (-40°F to 185°F)
● Port1 - 4 support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● Provides Wall and Desktop mounting
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack

 EX78931-0VB   12-Port 10/100/1000BASE-TX with 8-port PoE + 4-port Gigabit SFP Hardened Managed Ethernet Switch

● Ultra High-Power PoE Switch 60W PoE
● Intelligent Management
● Remote Secure Access

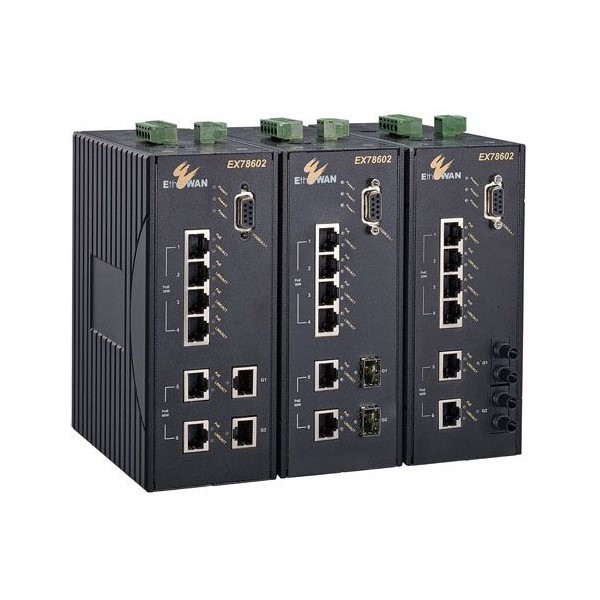

Hardened Managed 6-port 10/100BASE (4 x PoE + 2 x 60W PoE) and 2-port Gigabit Ethernet Switch

● Ultra High-Power PoE Switch 60W PoE
● Intelligent Management
● Remote Secure Access

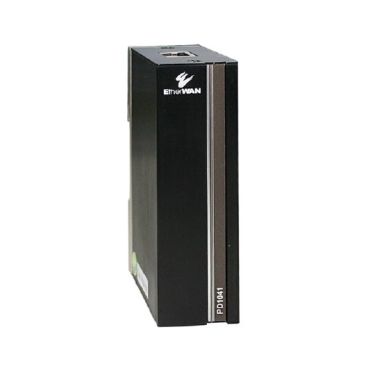

Hardened Surge Protection Device – RJ45

● Protection Solution Against Voltage Surge
● Flexible Installation
● Wide Temperature Range
● Compatible with 10/100BASE-T, Gigabit and PoE products

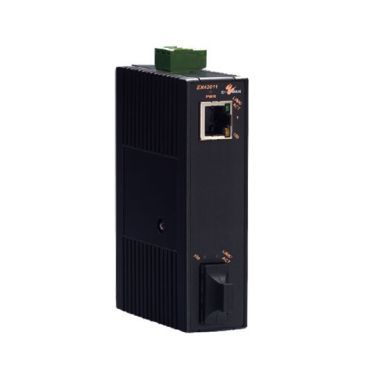

Industrial 10/100BASE-TX to 100BASE-FX Media Converter

● Provides 1-port 10/100BASE-TX plus 1-port 100BASE-FX
● The fiber port is available with SC or ST with a fiber connection that can reach up to 120Km (74.4miles)
● -10°C to 60°C (-14°F to 140°F) and is tested for functional operation @ -20°C to 70°C (-4°F to 158°F)
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Supports 12 to 48VDC Power inputs
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● 384K bits buffer memory

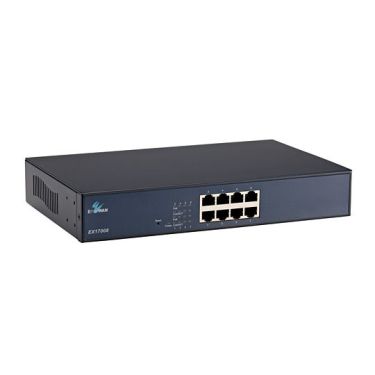

Web-smart 8-port PoE 10/100BASE-TX Ethernet Switch

● 8 ports support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● PoE (Power status, Link status) through the Web browser Interface
● System, IP Configuration, Port-based VLAN, QoS Mode, QoS Priority through the Web browser Interface
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● 100 - 240VAC, 50 - 60Hz Internal Universal PSU
● 0°C to 45°C (32°F to 113°F) operating temperature range

Unmanaged 8-port PoE (IEEE802.3at) 10/100BASE-TX and 2-port combo Gigabit SFP Ethernet Switch

● 8 10/100TX ports support 30W (IEEE802.3at) Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● 100 to 240VAC, 50 to 60Hz Internal Universal PSU
● 0°C to 45°C (32°F to 113°F) operating temperature range

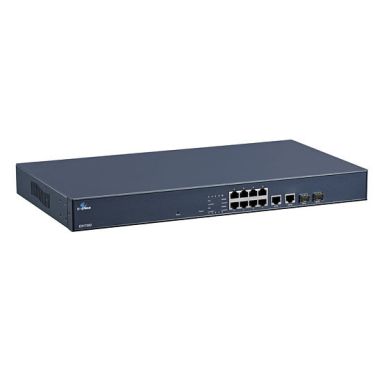

Web-Smart 8-port 10/100BASE-TX PoE (IEEE802.3at) and 2-port combo Gigabit SFP Ethernet Switch

● 8 10/100TX ports support 30W (IEEE802.3at) Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● PoE (Power status, Link status) through the Web browser Interface
● System, IP Configuration, Port-based VLAN, QoS Mode, QoS Priority through the Web browser Interface
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● 100 to 240VAC, 50 to 60Hz Internal Universal PSU
● 0°C to 45°C (32°F to 113°F) operating temperature range

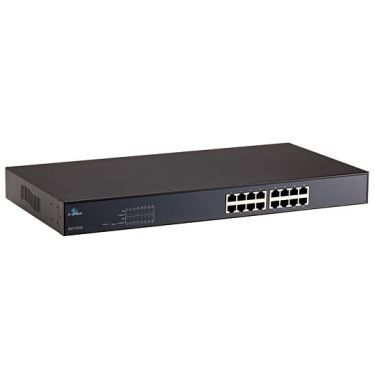

Web-smart 16-port 10/100BASE-TX PoE Ethernet Switch

● 16 ports support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● PoE (Power status, Link status) through the Web browser Interface
● System, IP Configuration, Port-based VLAN, QoS Mode, QoS Priority through the Web browser Interface
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● 100 - 240VAC, 50 - 60Hz Internal Universal PSU
● 0°C to 45°C (32°F to 113°F) operating temperature range

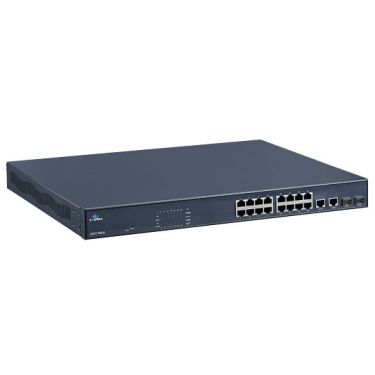

Unmanaged 16-port 10/100BASE-TX PoE and 2-port combo Gigabit SFP Ethernet Switch

● 16 10/100TX ports support 15.4W (IEEE802.3af) Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Internal Universal Power Supply 100VAC to 240VAC, 50 to 60HZ
● Operating Temperature Range 0°C to 45°C (32°F to 113°F)

Web-smart 16-port 10/100BASE-TX PoE and 2-port combo Gigabit SFP Ethernet Switch

● 24 10/100TX ports support 15.4W (IEEE802.3af) Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● PoE (Power status, Link status) through the Web browser Interface
● System, IP Configuration, Port based VLAN, QoS Mode, QoS Priority, MAC/Port based trunking through the Web browser interface
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation, Auto-MDI/MDIX
● Internal Universal PSU 100VAC - 240VAC, 50 - 60HZ
● Operating Temperature Range 0°C - 45°C (32°F - 113°F)

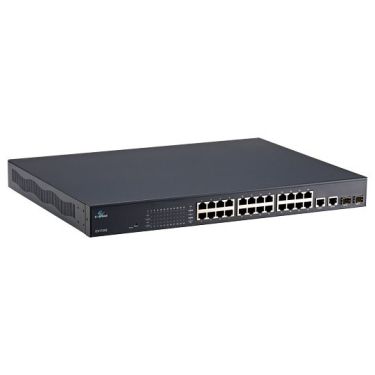

Web-smart 24-port 10/100BASE-TX PoE and 2-port combo Gigabit SFP Ethernet Switch

● 24 10/100TX ports support 15.4W (IEEE802.3af) Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● PoE (Power status, Link status) through the Web browser Interface
● System, IP Configuration, Port based VLAN, QoS Mode, QoS Priority, MAC/Port based trunking through the Web browser interface
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation, Auto-MDI/MDIX
● Internal Universal PSU 100VAC - 240VAC, 50 - 60HZ
● Operating Temperature Range 0°C - 45°C (32°F - 113°F)

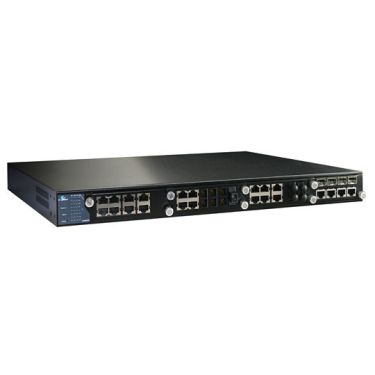

IEC61850-3/IEEE1613 Modulized Managed 24-port 10/100BASE and 4-port Gigabit Ethernet Switch with SFP options

● Complies with IEC61850-3/IEEE1613 for power substations & EN50121-4 for railway applications
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking with automatic link fail-over
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
● Supports Command Line Interface in RS-232 Console
● Supports IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● Supports NTP
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -10°C to 60°C (-14°F to 140°F) operating temperature range

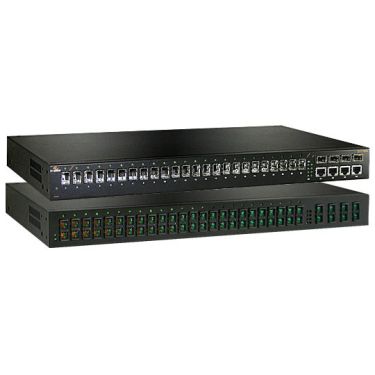

IEC61850-3/IEEE1613 Managed 24-port 10/100BASE and 4-port Gigabit Ethernet Switch with SFP options

● Complies with EN50121-4 Railway application environment
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking and LACP
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● DHCP Client/Server
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -10°C to 60°C (-14°F to 140°F) operating temperature range

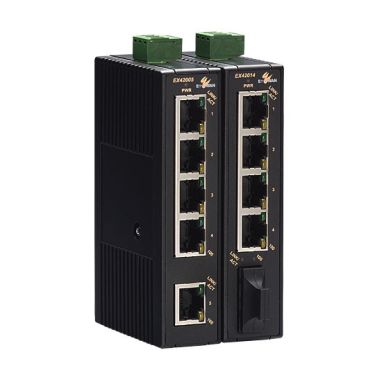

Unmanaged Industrial 5-port 10/100BASE Ethernet Switch

● Provides 5-port 10/100BASE-TX or 4-port 10/100BASE-TX plus 1-port 100BASE-FX
● The fiber port is available with SC or ST with a fiber connection that can reach up to 120Km (74.4miles)
● -10°C to 60°C (-14°F to 140°F) and is tested for functional operation @ -20°C to 70°C (-4°F to 158°F)
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Supports 12 to 48VDC Power inputs
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment

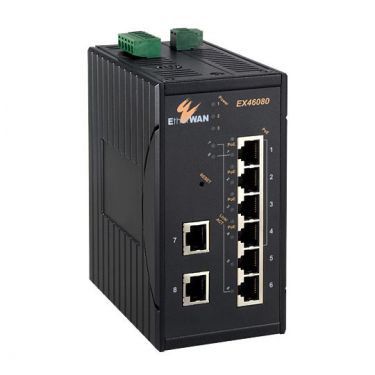

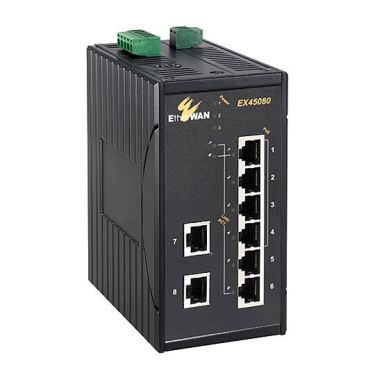

Hardened Unmanaged 8-port 10/100BASE PoE (4 x PoE) Ethernet Switch

● Provides flexibility of 8 Ethernet ports that configure in combinations of copper and fiber optic interfaces
● -40°C to 75°C (-40°F to 167°F) and is tested for functional operation @ -40°C to 85°C (-40°F to 185°F)
● Port1 - 4 support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● Provides DIN- Rail, Panel, or Rack Mounting
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX

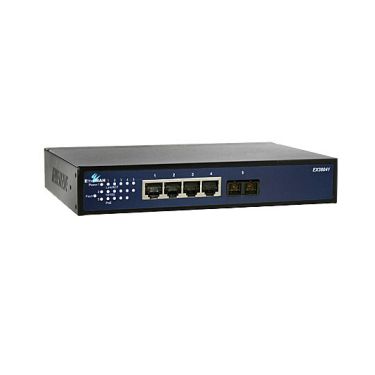

Industrial Web-Smart 5-port 10/100BASE PoE (4 x PoE) Ethernet Switch

● Provides flexibility of 5 Ethernet ports that configure in combinations of copper and fiber optic interfaces
● -10°C to 60°C (-14°F to 140°F) and is tested for functional operation @-20°C to 70°C (-4°F to 158°F)
● Port1-port4 support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● PoE ports can supports the IEEE802.3af+ standard and power up 30W devices
● Provides Wall and Desktop mounting
● System, IP Configuration, Port-based VLAN and QoS Priority setting through the Web browser Interface
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack

Hardened Web-Smart 5-port 10/100BASE PoE (4 x PoE) Ethernet Switch

● Provides flexibility of 5 Ethernet ports that configure in combinations of copper and fiber optic interfaces
● -40°C to 75°C (-40°F to 167°F) and is tested for functional operation @-40°C to 85°C (-40°F to 185°F)
● Port1 - 4 support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● Provides Wall and Desktop mounting
● System, IP Configuration, Port-based VLAN and QoS Priority setting through the Web browser Interface
● PoE (Power budget Control, PoE status, Port status) through the Web browser Interface
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack

Hardened Web-smart 8-port 10/100BASE High Power PoE (4 x PoE) Ethernet Switch

● Provides flexibility of 8 Ethernet ports that configure incombinations of copper and fiber optic interfaces
● -40°C to 75°C (-40°F to 167°F) and is tested for functional operation @-40°C to 85°C (-40°F to 185°F)
● Port1 - 4 support IEEE802.3af+Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● Provides DIN-rail, panel or Rack mounting
● System, IP Configuration, Port-based VLAN and QoS Priority setting through the Web browser Interface
● PoE (Power budget Control, PoE status, Port status) through the Web browser Interface
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack

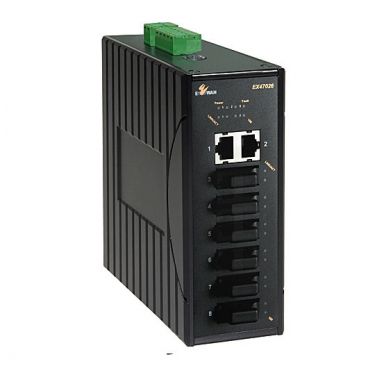

IEC61850-3/IEEE1613 Unmanaged Hardened 8-port 10/100BASE Ethernet Switch

● Provides flexibility of 4 to 8 10/100BASE-TX ports and 2 100BASE-FX ports
● Supports 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Redundant power inputs (12 - 48VDC) with Terminal Block and DC Jack (12VDC)
● Alarms for power and Link Down failure by relay output
● Supports DIP switch configuration for link down alarm
● -40°C to 75°C (-40°F to 167°F) operating temperature range, tested for functional operation @ -40°C to 85°C (-40°F to 185°F)
● Provides DIN-rail or panel mounting
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with IEC61850-3 and IEEE1613 Environmental requirements for power substation automation systems
● Complies with EN50121-4 environmental requirement for Railway application
