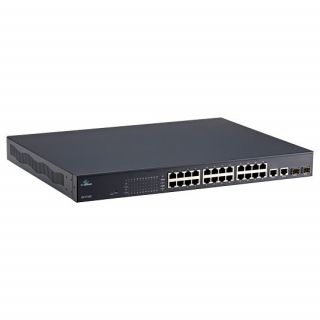

EtherWAN Ethernet Switch EX17242

Levertijd:
3~4 weken
SKU
EX17242

Web-smart 24-port 10/100BASE-TX PoE and 2-port combo Gigabit SFP Ethernet Switch

● 24 10/100TX ports support 15.4W (IEEE802.3af) Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● PoE (Power status, Link status) through the Web browser Interface
● System, IP Configuration, Port based VLAN, QoS Mode, QoS Priority, MAC/Port based trunking through the Web browser interface
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation, Auto-MDI/MDIX
● Internal Universal PSU 100VAC - 240VAC, 50 - 60HZ
● Operating Temperature Range 0°C - 45°C (32°F - 113°F)

EtherWAN's EX17242 provides a 26-port switching platform supporting IEEE802.3af Power over Ethernet, high performance switching with features required for small-business or enterprise environments.

The EX17242 is equipped with 24 10/100BASE-TX PoE ports, in combination with two Gigabit SFP options. The EX17242 is feature rich with full wire speed throughput, QoS support, making the EX17242 Series a powerful network switch.

The IEEE802.3af PoE ports provide up to 15.4W/port with a total power budget of 369.6W or 195W, making the switch truly versatile for connecting with PoE Powered Devices (PD) with different bandwidth and power consumption requirements.

Users are able to access management features such as IP configuration, QoS, VLANs, trunking and via web browser interfaces.

Meer informatie
Art.nr.
EX17242
Fabrikant
EtherWAN
Land van herkomst
Taiwan
Technology
Standards IEEE802.3af, IEEE802.3 10BASE-T, IEEE802.3u
100BASE-TX, IEEE802.3x, IEEE802.3ab 1000BASE-T,
IEEE802.3z 1000BASE-SX/LX, IEEE802.1p
Forward and Filtering Rate 14,880pps for 10Mbps
148,810pps for 100Mbps
1,488,100pps for 1000Mbps
Packet Buffer Memory 2.75M bits
Processing Type Store-and-Forward
Half-duplex back-pressure and IEEE802.3x full-duplex flow control
Address Table Size 4096 MAC addresses
Interface
Ethernet Port 10/100BASE-TX: 24 PoE ports
Gigabit: 2 ports
LED Indicators Per Unit: Power Status
Per Port: 10/100TX: Link/Activity, PoE Act/status
Gigabit: Link/Activity
Power
Input 100 - 240VAC, 50 / 60Hz
Power Consumption EX17242: 390W Max.
PoE power budget: 369.6W
EX17242L: 195W Max.
PoE power budget: 180W
PoE Power Output
IEEE802.3af: up to 15.4W/port, 47 - 55VDC, 350mA Max.
Mechanical
Casing Metal case
Dimensions (w x h x d) 440mm (W) x 220mm (D) x 44mm (H)
(17.32" (W) x 8.67" (D) x 1.73" (H))
Standard 19" rack-mount size, one-unit-height
Weight 4Kg (8.81lbs.)
Installation Rack Mounting
Environmental
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 10% to 95% (non-condensing)
Approvals
ISO Manufactured in an ISO9001 facility
Emission Compliance FCC Part 15, Class A, CE mark Class A
