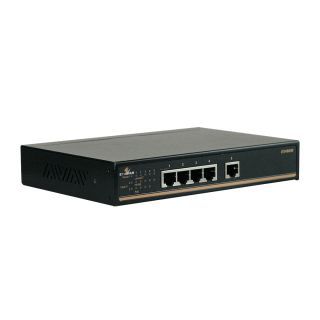

EtherWAN Ethernet Switch EX48000A
Web-smart Industrial 5-port 10/100BASE PoE Ethernet Switch
● Provides flexibility of 5 Ethernet ports that configure in combinations of copper and fiber optic interfaces
● -40°C to 75°C (-40°F to 167°F) and is tested for functional operation @-40°C to 85°C (-40°F to 185°F)
● Port1 - 4 support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● Provides Wall and Desktop mounting
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack
EtherWAN's EX48000A Series provides a hardened 5-port switching platform supporting IEEE802.3af Power over Ethernet, high performance switching with robust features required for mission-critical and harsh environments where sustained connectivity is crucial.
The EX48000A Series is equipped with 4 10/100BASE-TX PoE ports, in combination with one 100FX Fiber option.
The IEEE802.3af PoE ports provide up to 15.4W/port with a total power budget of 61.6W, making the switch truly versatile for connecting with PoE Powered Devices (PD) with different bandwidth and power consumption requirements.
The EX48000A Series is designed to operate at -40°C to 75°C in harsh environments, where high ESD, shock, and vibration may be present.
EtherWAN — "When Connectivity is Crucial."
| Standards | IEEE802.3 10BASE-TX, IEEE802.3u 100BASE-TX/FX, IEEE802.3x, IEEE802.3af |
| Forward and Filtering Rate | 14,880pps for 10Mbps 148,810pps for 100Mbps |
| Packet Buffer Memory | 512K bits |
| Processing Type | Store-and-Forward Half-duplex back-pressure and IEEE802.3x full-duplex flow control |
| Address Table Size | 1024 MAC addresses |
| Ethernet Port | 10/100BASE-TX: 5 or 4 ports 100BASE-FX: 0 or 1 ports |
| LED Indicators | Per Unit: Power Status (Power 1, Power 2, Power 3,Fault) Per Port: 10/100TX, 100FX: Link/Activity (Green)PoE: Link (Amber) |
| Alarm Contact | One relay output with current 1A @ 250VAC |
| Input | Redundant power inputs: Terminal Block: 47 - 55VDC DC Jack: 47 - 55VDC |
| Power Consumption | Device: Max. 10W (without PoE) PoE power budget (depends on power input):61.6W Max. |
| PoE Power Output |
Port 1 to 4 IEEE802.3af: up to 15.4W/port, 47 - 55VDC, 350mA Max |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Casing | Metal case IP30 |
| Dimensions (w x h x d) | 200mm (W) x 134.3mm (D) x 35mm (H) (7.87" (W) x 5.29" (D) x 1.38" (H)) |
| Weight | 0.8Kg (1.76lbs.) |
| Installation | Wall, Desktop Mounting |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) Tested @ -40°C to 85°C (-40°F to 185°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% (non-condensing) |
| ISO | Manufactured in an ISO9001 facility |
| EMI | FCC Part 15, Class A EN61000-6-4 - EN55022 - EN61000-3-2 - EN61000-3-3 |
| EMS |
EN61000-6-2 |
| Environmental Test Compliance | IEC60068-2-6 Fc (Vibration Resistance) 5g @ 10 - 150Hz, Amplitude 0.35mm (Operation/Storage/Transport) IEC60068-2-27 Ea (Shock) 25g @ 11ms (Half-Sine Shock Pulse; Operation) 50g @ 11ms (Half-Sine Shock Pulse; Storage/Transport) FED STD 101C Method 5007.1 (Free fall w/ package) -Tested with Cross Weight and Drop High standard table |
