● Provides flexibility of 4 to 8 10/100BASE-TX ports and 2 100BASE-FX ports ● Supports 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX ● Redundant power inputs (12 - 48VDC) with Terminal Block and DC Jack (12VDC) ● Alarms for power and Link Down failure by relay output ● Supports DIP switch configuration for link down alarm ● -40°C to 75°C (-40°F to 167°F) operating temperature range, tested for functional operation @ -40°C to 85°C (-40°F to 185°F) ● Provides DIN-rail or panel mounting ● Complies with NEMA TS2 Environmental requirements for Traffic control equipment ● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment ● Complies with IEC61850-3 and IEEE1613 Environmental requirements for power substation automation systems ● Complies with EN50121-4 environmental requirement for Railway application

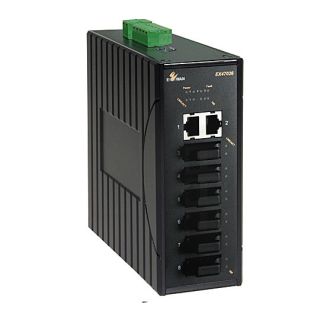

EtherWAN’s EX47000 Series is a hardened unmanaged Fast Ethernet switching platform, designed for easy deployment in harsh environments.
The EX47000 Series is equipped with eight Fast Ethernet ports, or a combination of Fast Ethernet copper ports and two 100FX ports for long distance connectivity. Although unmanaged, the EX47000 is feature rich with full wire speed Fast Ethernet throughput, making the EX47000 Series a powerful network switch. With its hardened-grade specifications and IEC61850 & IEEE1613 certifications, the EX47000 Series is capable of operating under high EMI environments at the temperatures ranging from -40°C to 75°C, making it an ideal choice for harsh applications.
