CANopen Remote Modules

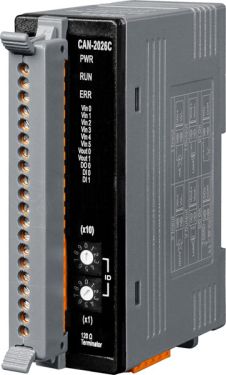

6-ch Analog Input, 2-ch Analog Output, 2-ch Digital Input and 1-ch Digital Output CANopen Slave Module

● I/O Channels: 6AI, 2AO, 2DI and 1DO
● Analog Input Type: +/-150mV, +/-500 mV, +/-1V, +/-5 V, +/-10 V +/-20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Current measurement with external 125Ω resistor required )
● Analog Output Type: +0 V ~ +5 V, +/-5 V, +0 V ~ +10 V, +/-10 V
● Analog Input sample rate: 60 Samples/Sec. (Total)
● Digital Input Type: Sink
● Digital Output Type: Sink
● Analog Input Resolution: 16-bit
● Analog Input Accuracy: +/-0.1% FSR
● Analog Output Resolution: 12-bit
● Analog Output Accuracy: +/-0.1% FSR
● ESD Protection: +/- 4kV, Contact for each terminal
● Intra-module Isolation: Field to logic 3000 VDC



CANopen Slave Module of 8-channel RTD Inputs

● Default EDS file
● Passed the validation of CiA CANopen Conformance
● Test tool
● ESD Protection 4 KV Contact for each channel
● Support Power Supply +10 ~ +30 VDC
● Support CiA-301 v4.02, CiA-401 v2.1
● Support Dynamic PDO

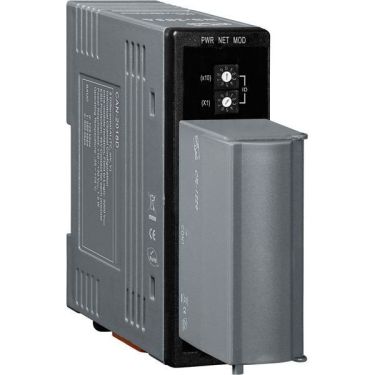

DeviceNet Slave Module of 8-channel thermocouple input

● DeviceNet general I/O slave devices
● Comply with DeviceNet specification Volume I,
● Release 2.0 & Volume II, Release 2.0, Errata 5
● Group 2 Only Server (non UCMM-capable)
● Support Predefined Master/Slave Connection Set
● Connection supported:
● 1 connection for Explicit Messaging
● 1 connection for Polled I/O
● 1 connection for Bit-Strobe I/O connection
● Support DeviceNet heartbeat and shutdown messages
● Provide EDS file for DeviceNet master interface

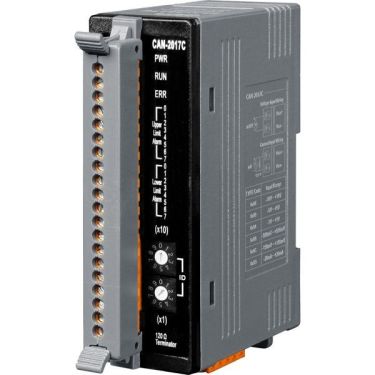

8-channel 14-bit analog input module

● NMT Slave
● NMT Error Control support Guarding and Heartbeat
● Provide default EDS file
● Passed the validation of CiA CANopen Conformance
● Test tool
● Sampling mode support normal and fast mode
● ESD Protection 4 KV Contact for each channel
● Support Power Supply +10 ~ +30 VDC
● Support CiA DS-301 v4.02, DSP-401 v2.1
● Support Dynamic PDO

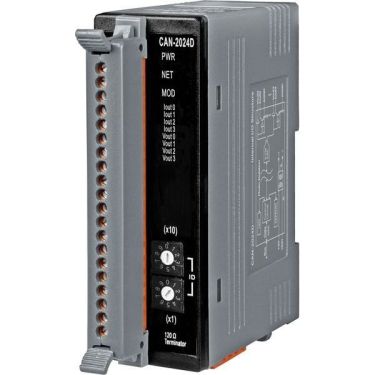

CANopen module of 4-channel 14-bit analog output module

● NMT Slave
● Read-Back Accuracy ±1% of FSR
● Provide default EDS file
● ESD Protection 4 kV Contact for each channel
● Support Power Supply +10 VDC ~ +30 VDC
● Support CiA DS-301 v4.02, DSP-401 v2.1
● Support PDO Mapping

8-channel 14-bit analog output module

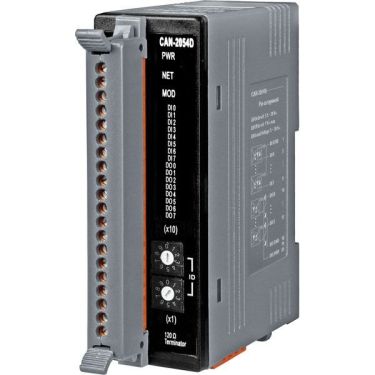

8-channel isolated sink/source digital input and 8-channel isolated open-collector digital output module

● DeviceNet general I/O slave devices
● Comply with DeviceNet specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata 5
● Group 2 Only Server (non UCMM-capable)
● Support Predefined Master/Slave Connection Set
● Connection supported (1 connection for Explicit Messaging, 1 connection for Polled I/O, 1 connection for Bit-Strobe I/O connection)
● Support DeviceNet heartbeat and shutdown messages
● Provide EDS file for DeviceNet master interface

DeviceNet Module of 16-channel Isolated Open Collector Digital Output

● DeviceNet general I/O slave devices
● Group 2 Only Server (non UCMM-capable)
● Support Predefined Master/Slave Connection Set
● Connection supported (1 connection for Explicit Messaging, 1 connection for Polled I/O, 1 connection for Bit-Strobe I/O connection)
● Support DeviceNet heartbeat and shutdown messages
● Provide EDS file for DeviceNet master interface
● Support Application: Drive Relay, Resistance Load
● ESD Protection 4 kV Contact for each channel

DeviceNet Module of 16-channel Isolated Sink/Source Digital Input

● DeviceNet general I/O slave devices
● Group 2 Only Server (non UCMM-capable)
● Support Predefined Master/Slave Connection Set
● Connection supported (1 connection for Explicit Messaging, 1 connection for Polled I/O, 1 connection for Bit-Strobe I/O connection)
● Provide EDS file for DeviceNet master interface
● Support Application: PNP, NPN, TTL, and Relay Contact
● ESD Protection 4 kV Contact for each channel

CAN bus Remote I/O module with CANopen Protocol of 8-Channel PWM and 8-Channel High Speed Counter

● NMT Slave
● Providing Pair-Connect function
● Provide default EDS file
● ESD Protection 4 kV Contact for each channel
● Support Power Supply +10 ~ +30 VDC
● Support CiA DS-301 v4.02, DSP-401 v2.0
● Support PDO Mapping

CANopen Slave Module of 8-Channel Isolated Digital Input and 8-Channel Isolated Digital Output

● NMT Slave
● Providing Pair-Connect function
● Provide default EDS file
● ESD Protection 4 kV Contact for each channel
● Support Power Supply +10 ~ +30 VDC
● Support CiA DS-301 v4.02, DSP-401 v2.0
● Support PDO Mapping

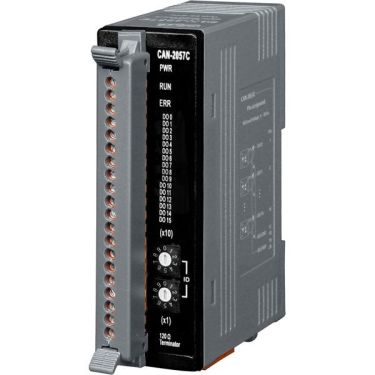

CANopen Slave Module of 16-Channel Isolated Open-collector Digital Output

● NMT Slave
● Providing I/O Pair-connection Function
● Provide default EDS file
● Passed the validation of CiA CANopen Conformance Test tool
● Support Polarity Output Setting and Save
● Support Error Value Output Setting and Save
● Support Dynamic PDO
● Support Application: Drive Relay, Resistance Load
● ESD Protection 4 kV Contact for each channel

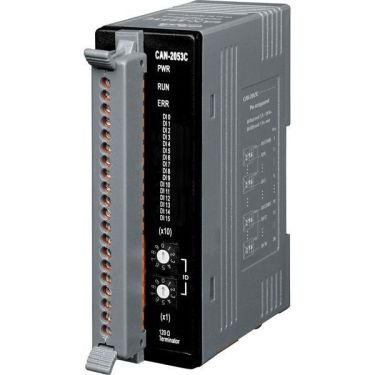

CANopen Slave Module of 16-channel Isolated Sink/Source Digital Input

● NMT Slave
● Providing I/O Pair-connection Function
● Provide default EDS file
● Passed the validation of CiA CANopen Conformance Test tool
● Support Polarity Output Setting and Save
● Support Error Value Output Setting and Save
● Support Dynamic PDO
● Support Application: PNP, NPN, TTL, and Relay Contact
● ESD Protection 4 kV Contact for each channel
