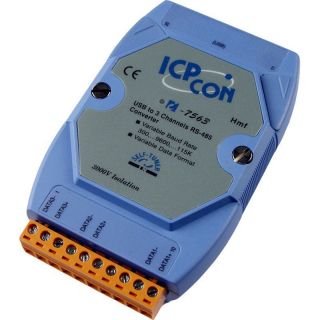

USB to Isolated RS-485 Active Star Wiring Converter

● Fully Compliant with USB 1.1/2.0 (High Speed)
● No External Power Supply is required as the I-7561 is powered
● RS-485 Active Star Wiring Applications from the USB Bus
● Baud Rate: 300 ~ 115200 bps
● 3000 VDC Isolation Protection on the RS-485 side
● ESD Protection for the RS-485 Data Line
● Operating Temperatures: -25 °C ~ +75 °C
● Driver Supports Windows 7/10 (32/64-bit)/Linux
● DIN-Rail Mountable



The I-7563 is a cost-effective module for transferring serial data via USB. It allows you to connect your serial devices to systems that use a USB interface.

Connecting the I-7563 to a PC. The I-7563 contains "Self-Tuner" This chip auto-tunes the Baud Rate and data format to the RS-485 network.

The I-7563 module derives its power from the USB port and doesn't need any power adapter. It also features a high-speed 115.2 kbps transmission rate, and supports various O.S.

Do you have any RS-485 wiring problems I-7563 is a USB to 1-channel RS-485 converter with a 3-way RS-485 Hub. Each channel contains its own RS-485 driver IC, so it can support star-shaped wiring.

Meer informatie
Art.nr.
I-7563
Fabrikant
ICPDAS
Land van herkomst
Taiwan
Interface
USB Compatibility: USB 1.1 and 2.0 standards
RS-485
3 Channels: For active star wiring applications
Data1+, Data1-
Data2+, Data2-
Data3+, Data3-
2-wire cabling Belden 8941 (2P twisted-pair cable), if different cables are used, the transmission distance may change
RS-485 Transfer Distance Max. 1,200 m at 9.6 kbps; Max. 400 m at 115.2 kbps
Maximum Supported RS-485 Devices Max. of 256 devices
Self-Tuner Asic Inside for RS-485 Yes
Speed 300 ~ 115200 bps
Connection RS-485 Removable 10-Pin Terminal Block
Connection USB Type B
Cable Included CA-USB18 (1.8 m Cable) x 1
LED Indicators
Power Yes
Power
Input Voltage Range +5 VDC from USB
Power Consumption 0.5 W
Mechanical
Casing Plastic
Flammability UL94-V0
Dimensions (w x h x d) 72 x 115 x 35mm
Installation DIN-Rail
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +75 °C
Humidity 10 ~ 90% RH, non-condensing
