3G/4G/LTE/Wi-Fi/ZigBee/GPS

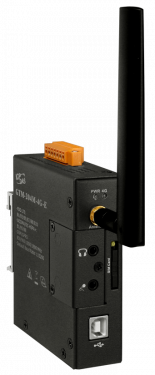

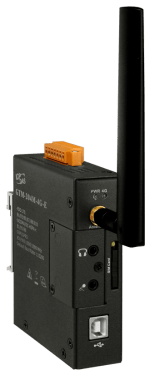

Industrial 4G LTE Modem industrial design, making it a reliable cellular solution for data collection and transmission


● Reliable GSM/GPRS/EDGE/WCDMA/HSPA/LTE
● Designed for Data, SMS and Voice Applications
● Support TCP Server, TCP Client, UDP Client Connection stack
● Support Standard AT Commands
● A Digital Input Channel for Resetting the System
● LED Indicators for 2G/3G/4G and Power Indication
● High Reliability in Harsh Environment
● RS-232 Port Supports 9600 bps to 115200 bps
● USB 2.0 high speed
● USB Driver for Windows, LinPAC (Linux 2.6)
● Mount Easily on DIN-Rail

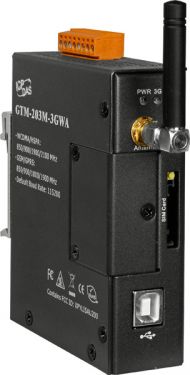

Industrial Quad-band industrial 3G WCDMA Modem


● Reliable GSM/GPRS/EDGE/WCDMA/HSPA network connectivity, providing fast and cost-effective long-range wireless applications
● Designed for Data, SMS and Voice Applications
● Support TCP Server, TCP Client, UDP Client Connection stack
● Support Standard AT Commands
● A Digital Input Channel for Resetting the System
● LED Indicators for 2G/3G and Power Indication
● High Reliability in Harsh Environment
● RS-232 Port Supports 9600 bps to 115200 bps
● USB 2.0 high speed
● USB Driver for Windows, LinPAC (Linux 2.6)
● Mount Easily on DIN-Rail

Digi TransPort® WR31 Secure 4G LTE cellular ATEX router


● Global HSPA+ and 4G LTE support and certification on major carrier networks around the world
● Ethernet, serial and I/O for connecting diverse field assets
● Extremely resilient cellular connection through Digi’s patented SureLink™, VRRP+ protocol, and dual SIM slots
● Enterprise Routing features for security, logging, and redundancy (e.g. stateful firewall, VPN, SNMP); no annual enterprise software license required
● Digi Remote Manager provides mass configuration, device management, and troubleshooting tools
● Rugged aluminum enclosure, optimized for Din rail or shelf mounting
● 5-year warranty standard

Digi TransPort® WR11 Secure 3G/4G LTE cellular router


● Compact global 3G/4G LTE networking platform
● Extremely resilient cellular connection through patented Digi SureLink™, VRRP+ protocol and dual SIM slots
● Enterprise routing features for security, logging and redundancy (e.g., stateful firewall, VPN, SNMP); no annual enterprise software license required
● Digi Remote Manager provides mass configuration, device management and troubleshooting tools
● Dual SIMs and Digi SureLink™ provide redundant connection
● 5-year warranty standard

Enterprise Class Cellular Router

● Enterprise class cellular routers with advanced dynamic routing, security and firewall features
● CAN Bus support and rugged enclosure options
● High speed cellular interfaces
● Optional integrated 802.11a/b/g/n Wi-Fi access point
● Flexible interfaces including serial (async/sync), GPS, USB and telemetry, with flexible DC power options
● Powerful integrated end user programming
● Digi remote management software for easy setup, configuration and maintenance

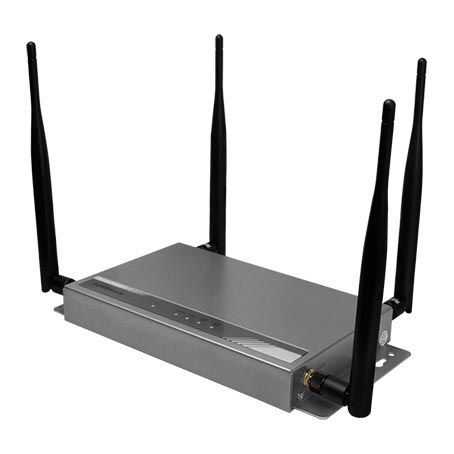

Enterprise Class Wi-Fi to Cellular Router

● Enterprise class cellular routers with advanced dynamic routing, security and firewall features
● High speed cellular interfaces: GSM GPRS/EDGE/HSPA/CDMA EV-DO
● Optional integrated 802.11 b/g Wi-Fi access point
and 4-port Ethernet switch
● Flexible interfaces including serial (async/sync), GPS, USB and telemetry, with flexible DC power options
● Powerful integrated end user programming
● Digi Remote Manager software for easy setup, configuration, and maintenance
● Available in industrial and commercial grade platforms



Compact Enterprise Class Cellular Router

● Compact, low-cost, flexible cellular routing platform with standard and enterprise feature sets
● Standard option includes basic routing and IP filtering; Enterprise option includes advanced routing protocols, VPN and stateful firewall
● High-performance architecture, flexible power and extended operating temperature
● 2.5G/3G/4G cellular interface including: including LTE, GSM:EDGE, HSPA, HSPA+ and CDMA: 1xRTT, EV-DO
● RS-232 serial and 10/100 Ethernet or RS-232/422/485 serial and 2-port Ethernet switch
● Digi remote management software solutions, including the Device Cloud by Etherios, provide easy setup, configuration and maintenance of large installations

Enterprise Class Cellular Routers for Rugged Applications

● Rugged, enterprise-class cellular routers with advanced dynamic routing, security and firewall features
● Heavy-duty cast aluminum enclosure for reliable performance in rugged environments
● Integrated 802.11b/g/n Wi-Fi access point (optional) and 4-port Ethernet switch
● Flexible interfaces including multiple serial, GPS, CAN, and telemetry I/O with flexible DC power options
● Cellular to Wi-Fi autoswitch feature automatically uses the highest speed/lowest cost WAN network available
● Digi’s remote management solutions include software for easy setup, configuration and maintenance

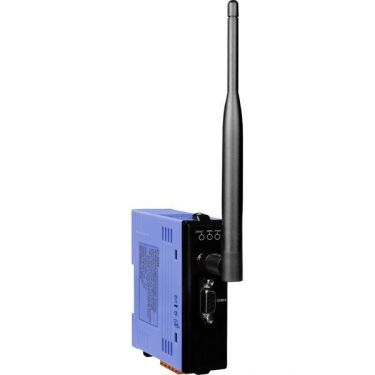

ZigBee Repeater

● ISM 2.4 GHz Operating Frequency
● Fully Compliant with 2.4 G (IEEE802.15.4/ZigBee Specifications)
● Fully Compliant with ZigBee ZigBee Pro (ZigBee 2007)
● Wireless Transmission Range up to 700 m
● GUI Configuration Software (Windows Version)
● RS-232/RS-485/Ethernet Interface Supported
● DIN-Rail Mountable

10-channel High Power Relay Module

● e-Classroom service
● Lighting Scenario Control
● Home and Building Automation
● 10 channels high power loops: 15A x 2, 10A x 2, 5A x 6
● NO/NC for each channel
● Protection circuit for each channel
● Logic and sequential power control
● Supports maximum 5 sets of interlock switches (e.g. for CW/CCW motor control)
● Supports RS-232 and RS-485 serial interface
● Supports Modbus/RTU protocol
● Assignable Modbus Network IDs: 1 ~ 15
● Supports IR remote control
● Built-in watchdog

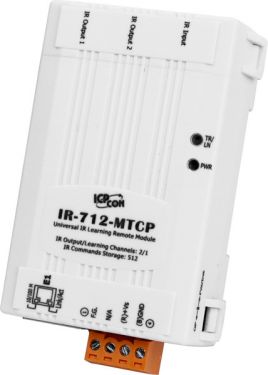

Universal IR Learning Remote Module (MBTCP, 2 IR outputs, 512 IR Cmds) with 2 CA-IR-SH2251  (RoHS)

● 2 IR output channels for controlling multiple devices
● 1 IR learning input
● IR command storage: 512
● Supports IR carrier frequencies: 33、36、37、38、40 and 56 kHz
● Supports Ethernet interface
● Supports Modbus TCP/UDP protocol
● Provides IR transmitting/learning and power indication LEDs
● Built-in Watchdog
● RoHS Compliance

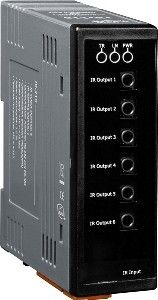

Universal IR Learning Remote Module

● 6 IR output channels for controlling multiple devices
● 1 IR learning input
● Supports 6 learning IR carrier frequencies: 32.768、36、37.037、38、40 and 56 kHz
● Can learn and store 176 IR commands
● Supports RS-232 and RS-485 serial interface
● Supports Modbus/RTU protocol
● Assignable 256 Modbus Network IDs
● Baud rate settings: 9600, 19200, 38400, 57600 and 115200 bps
● Configurable NONE / ODD / EVEN parity and 1 or 2 stop bits
● Provides transmitting / learning / power indication LEDs
● Built-in Watchdog

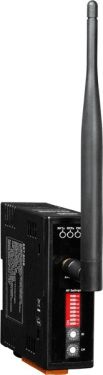

900 MHz Wireless Modem

● Half-duplex up to 115200 bps
● Internal Self-Tuner
● ISM Band 900 MHz
● Typical wireless transmission range is 700 meters (LOS)
● UI Configuration via external switch

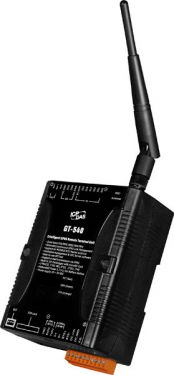

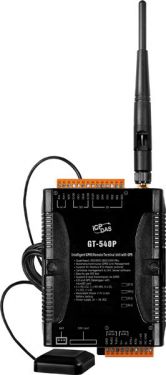

Intelligent GPRS Remote Terminal Unit with GPS

● Automatic/continuous GPRS Link Management
● Support Modbus RTU protocol to connect to Max 3 Modbus RTU devices via RS-485 port
● Support M2M OPC server for SCADA system
● Easy-to-use API tool for users to develop their applications by various program development tools
● Be the GPRS I/O devices
● Support data transferring by E-mail
● Support GPS function
● Local I/O linkage function to make the simple local control
● Support 3.7 V Li-ion Battery backup
● Power supply 10 VDC ~ 30 VDC

Intelligent GPRS Remote Terminal Unit

● Automatic/continuous GPRS Link Management
● Support Modbus RTU protocol to connect to Max 3 Modbus RTU devices via RS-485 port
● Support M2M OPC server for SCADA system
● Easy-to-use API tool for users to develop their applications by various program development tools
● Be the GPRS I/O devices
● Support data transferring by E-mail
● Local I/O linkage function to make the simple local control
● Support 3.7 V Li-ion Battery backup
● Power supply 10 VDC ~ 30 VDC

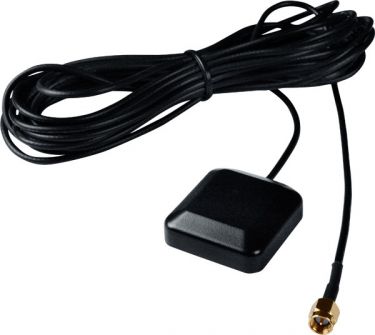

GPS Active External Antenna with a Magnetic Mount Base (Directional)

GSM/GPRS External Antenna (Omni Directional) (Dipole)

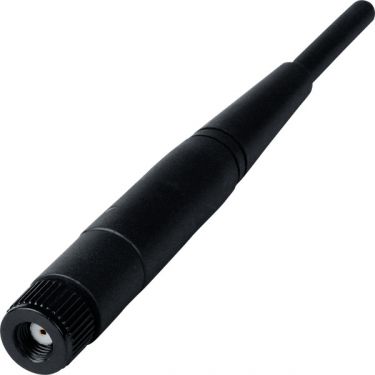

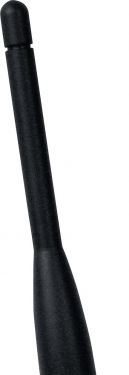

5 dBi 2.4GHz External Antenna with 300 m Transmission Distance (LOS) (Omni Directional) (Dipole)

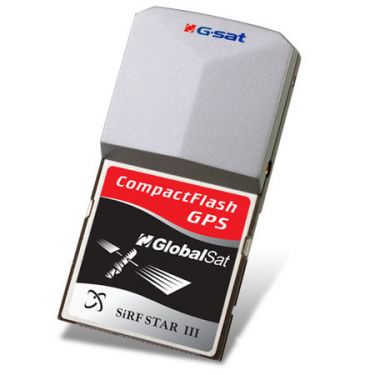

GPS Receiver

● CFA compliant
● Within SiRF Star III/LP low power All-in-View high performance 20-parallel channels
● Support Standard NMEA 0183 command: GGA, GSA, GSV, RMC, GLL, VTG
● SingleSat updates in reduced visibility
● Superior urban canyon performance
● FoliageLock for weak signal tracking
● Optional external antenna
● Built-in Antenna for high sensitivity to satellite signal
● LED indicator for GPS fix or not fix



3 dBi 2.4GHz External Antenna with 300 m Transmission Distance (LOS) (Omni Directional) (Dipole)
