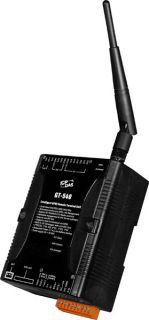

ICPDAS GT-540

Levertijd:
2~7 dagen
SKU
GT-540

Intelligent GPRS Remote Terminal Unit

● Automatic/continuous GPRS Link Management
● Support Modbus RTU protocol to connect to Max 3 Modbus RTU devices via RS-485 port
● Support M2M OPC server for SCADA system
● Easy-to-use API tool for users to develop their applications by various program development tools
● Be the GPRS I/O devices
● Support data transferring by E-mail
● Local I/O linkage function to make the simple local control
● Support 3.7 V Li-ion Battery backup
● Power supply 10 VDC ~ 30 VDC

The ICPDAS GPRS Module GT-540 is an intelligent Active GPRS Remote Terminal Unit. Within the high performance 32 bit CPU, the GT-540 is suit for the hard industrial environment. It features GPRS/GSM module, 6 digital inputs, 2 digital outputs, 1 analog input, 2 RS-232, 1 RS-485 and SD interface. It can be used in M2M application fields to transfer the local I/O or Modbus device’s data by GPRS by the defined period or DI/AI triggers. The local I/O data can also be stored in the SD card to become a remote data logger. For another communication path, the GT-540 offers the e-mail mode to transfer the data by e-mail via GPRS for users to choose. The simple I/O linkage function of the ICPDAS GPRS Module GT-540 can reach the real time control in local field. It also supports Li-ion battery as another power source when the main power is failed temporarily. Therefore, the GT-540 is an ideal solution for environmental monitoring and remote device management for M2M applications. Meanwhile, it is supplied with easy-to-use API and OPC server Software that streamline application development process, freeing system integrators from dealing with complex communication protocols of GPRS and the Internet.







APPLICATIONS







SOFTWARE SOLUTIONS:

The M2M RTU center software with friendly Graphic interface is to manage the GPRS RTU products easily. Users can monitor the I/O data and status of GPRS RTU devise by the interface on PC. By using the GPRS RTU API tool and M2M RTU center software, any remote monitoring system can be achieved easily and efficiently. For SCADA system, the M2M.OPC server is provided to connect to SCADA by OPC interface.



Meer informatie
Art.nr.
GT-540
Fabrikant
ICPDAS
CPU
CPU 32 bit, 96 MHz
SRAM 64 Kbytes
Flash Memory 512 Kbytes
RTC Gives time(sec, min, hour) & date, leap year compensation from 1980 to 2079
WDT (watchdog) Yes
SD Interface 2 GB max.
Serial Ports
COM1
RS-232 TxD,RxD,GND for configuration
COM2
RS-485 D2+, D2-
Digital Input
Input Channels 6
Input Type Sink or Source, Isolated channel with common power or ground
On Voltage Level 3.5 VDC ~ 24 VDC
Off Voltage Level 1 V max.
Isolated Voltage 3750 Vrms
Counters 6 (16 Bit, 5 ~ 40 Hz), Min. Pulse Width: 25 ms
Digital Output
Output Channels 2
Output Type Open-Collector (NPN) (500 mA@24 VDC)
Load Voltage 24 V max.
Load Current 500 mA max.
Isolated Voltage 3750 Vrms
Analog Input
Input Channels 1
Resolution 12-bit
Input Range/Type 0 ~ 20 mA
GSM/GPRS System
Quad-band 850/900/1800/1900 MHz
GPRS Multi-slot class 10/8
GPRS Mobile Station Class B
GPRS Class 10 Max. download speed 85.6 kbps
CSD Max. speed 14.4 kbps
Compliant to GSM phase 2/2+
Class 4 (2 W@900 MHz)
Class 1 (1 W@1800/1900 MHz)
Coding Schemes CS 1, CS 2,CS 3,CS 4
SMS Text and PDU mode
Power
Protection Reverse polarity protection
Frame Ground Protection ESD, Surge, EFT, Hi-Pot
Required Supply Voltage
10 VDC ~ 30 VDC
With 600 mAh Li-on battery backup
Mechanical
Casing Plastic
Flammability UL 94V-0 materials
Dimensions (w x l x h) 91 x 132 x 52mm
Installation DIN-Rail Mounting
Omgeving
Operating Temperature -25 °C ~ +55 °C
Storage Temperature -40 °C ~ +80 °C
Humidity 5 ~ 95% RH, non-condensing
ICPDAS GT-540 aanpassen
Intelligent GPRS Remote Terminal Unit (RoHS)
3.7V 600 mAh Battery
