ICPDAS IR-210

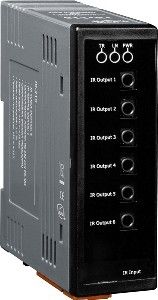

Universal IR Learning Remote Module
● 6 IR output channels for controlling multiple devices
● 1 IR learning input
● Supports 6 learning IR carrier frequencies: 32.768、36、37.037、38、40 and 56 kHz
● Can learn and store 176 IR commands
● Supports RS-232 and RS-485 serial interface
● Supports Modbus/RTU protocol
● Assignable 256 Modbus Network IDs
● Baud rate settings: 9600, 19200, 38400, 57600 and 115200 bps
● Configurable NONE / ODD / EVEN parity and 1 or 2 stop bits
● Provides transmitting / learning / power indication LEDs
● Built-in Watchdog
IR-210 is a universal IR learning remote module which can learn IR remote commands of diverse electronic devices. The learning commands can be stored in the module or saved to a file. IR-210 supplies 6 IR output channels for individual or simultaneous control on multiple devices. The accompanied RS-232 and RS-485 interfaces with Modbus/RTU protocol provide more flexible expansion and control on the module. Besides, IR-210 software utility provides users with easy configuration, learning, test and storage of IR commands. As a replacement of IR remote controls and a module that can be easily integrated with Modbus master devices (e.g. PAC, PLC, PC… etc.), IR-210 is well-suited for smart home and building automation.
UTILITY:
IR-210 Utility supports the OS of Windows XP, Vista and Windows 7 with .NET framework 4.0 platform. IR-210 Utility provides the functions as follows:
● IR quantify configuration
● IR commands learning and testing
● Save IR learning commands to files
● Get/Set IR learning commands from/to IR-210
● Reference to Modbus commands
● Set/Reset basic settings of IR-210
APPLICATION:
● Home Entertainment Devices
● Video Conferencing System
● Surveillance System
● e-Classroom service
● Lightning Scenario Control
● Home and Building Automation
| Chip | MediaTek solution | ||
| Frequency | L1 1575.42 MHz, C/A code | ||
| Support Channel | 32 | ||
| Position Accuracy | Capable of SBAS (WAAS, EGNOS, MSAS) | ||
| Max. Altitude | <18,000 m | ||
| Max. Velocity | <515 m/s | ||
| Acquisition Time | Cold Start (Open Sky) = 42 s (typical) | ||
| Sensitivity |
|
||
| Protocol Support | NMEA 0183 v3.01 |
| 1 PPS | Pulse per second output (Default 100 ms pulse/sec.) |
| RS-232 Interface | GPS information output |
| Output Channel | 1 (Sink) |
| Output Type | Non-isolated Open Collector |
| Output Current | 100 mA |
| Load Voltage | 5V DC ~ 30V DC |
| Power/Communication | 1 LED |
| GPS | 3 LEDs |
| Protection | Power reverse polarity protection |
| Frame Ground Protection | Yes |
| Required Supply Voltage | 10V DC ~ 30V DC (non-regulated) |
| Power Consumption | 2.5W |
| Dimensions (w x h x d) | 72 x 117 x 35mm |
| Casing | Plastic |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +80 °C |
| Humidity | 5 ~ 95% RH, non-condensing |
