Serial Interfaces

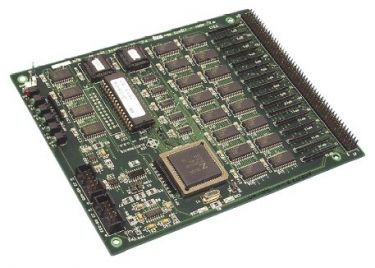

Serial to Relay Interface OEM Board

● Multiple relay configurations: 16 low-level SPST relays, 16 hi-power SPST relays or 16 relay drivers. Choose the right contact or relay driver for your application.
● Multiple relay programming modes: individual relays, single or multipole scanning. Flexible relay programming.
● Isolated digital inputs accept contact closures and CMOS/TTL logic levels. Eliminates ground loops.
● IEEE-488.2 compatible unit uses SCPI commands. Meets the latest GPIB specifications.
● Includes a menu-driven configuration program. Steps user thrugh configuration choices.
● Metal case provides full EMI/RFI protection. Proven EMI/RFI Compliance.

Serial to Relay Interface Module

● Multiple relay configurations: 16 low-level SPST relays, 16 hi-power SPST relays or 16 relay drivers. Choose the right contact or relay driver for your application.
● Multiple relay programming modes: individual relays, single or multipole scanning. Flexible relay programming.
● Isolated digital inputs accept contact closures and CMOS/TTL logic levels. Eliminates ground loops.
● IEEE-488.2 compatible unit uses SCPI commands. Meets the latest GPIB specifications.
● Includes a menu-driven configuration program. Steps user thrugh configuration choices.
● Metal case provides full EMI/RFI protection. Proven EMI/RFI Compliance.

RS-232/RS-485 to Parallel Digital Interface OEM Board

● Provides a user-definable parallel interface with bit, byte and string data transfer capabilities. Fully configurable to the user's needs by bus commands.
● Signal monitor feature detects signal changes. Relieves controller of time consuming polling function.
● High-current drivers and input pullup resistors. Drives larger loads and inputs CMOS signals or contacts.
● Programmable RS-232 and RS-485 serial interfaces. Supports point-to-point or network connections.
● Provides IEEE-488.2 Status Structure and SCPI parser. GPIB functionality over a serial link.
● Device setup and network address stored in Flash. Stored setup eliminates program initialization statements.
● Includes a menu-driven configuration program. Steps user through configuration choices.

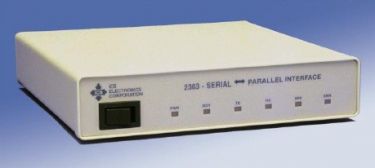

RS-232/RS-485 to Parallel Digital Interface Module

● Provides a user-definable parallel interface with bit, byte and string data transfer capabilities. Fully configurable to the user's needs by bus commands.
● Signal monitor feature detects signal changes. Relieves controller of time consuming polling function.
● High-current drivers and input pullup resistors. Drives larger loads and inputs CMOS signals or contacts.
● Programmable RS-232 and RS-485 serial interfaces. Supports point-to-point or network connections.
● Provides IEEE-488.2 Status Structure and SCPI parser. GPIB functionality over a serial link.
● Device setup and network address stored in Flash. Stored setup eliminates program initialization statements.
● Includes a menu-driven configuration program. Steps user through configuration choices.

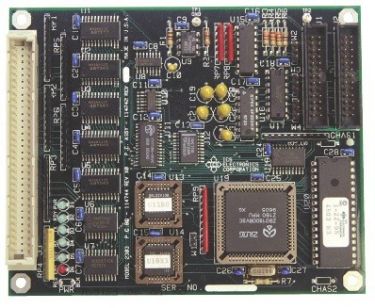

Serial <-> Parallel Digital Interface Board

● Provides a user-definable, 128-line parallel interface with bit, byte, string and binary data trasnfer capabilities. Fully configurable to the user's needs by bus commands.
● Signal monitor feature detects input changes. Relieves controller of time consuming polling function.
● Fast RS-232/RS-422/RS-485 interface operates up to 115.2 Kbaud. Supports network and packet protocols.
● High-current drivers and input pullup resistors. Drives more devices, longer lines and inputs CMOS signals or switch contacts.
● Device configuration, user's IDN message and bus address stored in Flash. User can easily set the power-on configuration.
● Two companion Relay Driver Boards drive 5-48 Volt relays. Boosts drive signals to control larger relays and solenoids.
● Includes a men-driven configuration program. Steps user through configuration choices.

Serial <-> Parallel Digital Interface Board

● Provides a user-definable, 40-line parallel interface with bit, byte, pulse and string data transfer capabilities. Fully configurable to the user's needs by bus commands.
● Pull up resistors on all inputs for switches and CMOS signals. Handles TTL/CMOS signals and contact closures.
● Monitors up to 15 input lines for level changes. Automatic event and status change detection.
● Fast RS-232/RS-485 interface operates up to 115.2 Kbaud. Also supports network protocol.
● IEEE-488.2 Compliant with SCPI Commands. GPIB functionality over a serial link.
● Interchangeable with ICS's 4803 GPIB and 8003 Ethernet Interfaces. Convert from Serial to GPIB or Ethernet (LAN) interfaces replacing a card.
● Support includes a menu driven configuration program and SERkybd program. Easy configuration and serial command generation.

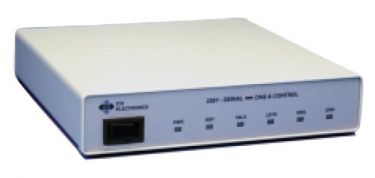

Serial Data Acquisition and Control Module

● Combines analog I/O, digital I/O, relay drivers and temperature readings in one board. Versatile serial control board handles many applications.
● User selectable RS-232 or RS-422/RS-485 interface. Flexible serial interface supports point-to-point and network connections.
● Uses SCPI commands and IEEE-488.2 status reporting structure. Provides GPIB functionality over a serial link.
● Optional packet protocol adds checksum protection to each message. Added protection against erroneous messages.
● Rugged metal case that can be rack mounted. Suitable for portable or airborne applications.
● Support includes a menu driven configuration and an example Visual Basic program. Easy to use, easy to program.
● Companion Terminal Board simplifies test connections. Saves connection time.

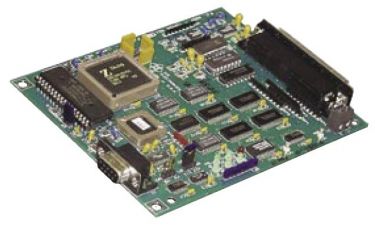

Serial Data Acquisition and Control Board

● Combines analog I/O, digital I/O, relay drivers and temperature readings in one board. Versatile serial control board handles many applications.
● User selectable RS-232 or RS-422/RS-485 interface. Flexible serial interface supports point-to-point and network connections.
● Uses SCPI commands and IEEE-488.2 status reporting structure. Provides GPIB functionality over a serial link.
● Optional packet protocol adds checksum protection to each message. Added protection against erroneous messages.
● Rugged metal shell connectors provide secure connections. Suitable for portable or airborne applications.
● Support includes a menu driven configuration program, Visual Basic and LabView programs. Easy to use, easy to program.
● Companion Terminal Board simplifies test connections. Saves connection time.

RS-232/RS-485 to Analog Interface

● Provides four floating 16-bit analog outputs with 750 VDC isolation. Controls analog devices without ground loops.
● Four differential analog inputs with programmable ranges. Scalable inputs for reading voltage sources, current shunts, sensors etc.
● User setable scale factors for all analaog singals. Matches 2361A commands and data to real values.
● High current drivers can operate external relays etc. Digital control of external devices.
● Digital inputs read or monitor external signals. Generates Service Request Message on selected signal changes.
● RS-485 network capability. Supports multiple units on one RS-485 network.
● Includes sample control, calibration and configuration programs. Complete software package.

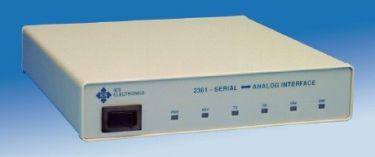

RS-232/RS-485 to Analog Interface

● Provides four floating 16-bit analog outputs with 750 VDC isolation. Controls analog devices without ground loops.
● Four differential analog inputs with programmable ranges. Scalable inputs for reading voltage sources, current shunts, sensors etc.
● User setable scale factors for all analaog singals. Matches 2361A commands and data to real values.
● High current drivers can operate external relays etc. Digital control of external devices.
● Digital inputs read or monitor external signals. Generates Service Request Message on selected signal changes.
● RS-485 network capability. Supports multiple units on one RS-485 network.
● Includes sample control, calibration and configuration programs. Complete software package.
