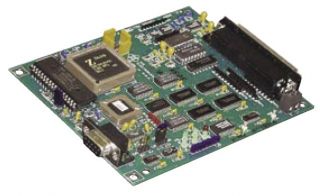

Serial Data Acquisition and Control Board 2307

Levertijd:
3~4 weken
SKU
2307

Serial Data Acquisition and Control Board

● Combines analog I/O, digital I/O, relay drivers and temperature readings in one board. Versatile serial control board handles many applications.
● User selectable RS-232 or RS-422/RS-485 interface. Flexible serial interface supports point-to-point and network connections.
● Uses SCPI commands and IEEE-488.2 status reporting structure. Provides GPIB functionality over a serial link.
● Optional packet protocol adds checksum protection to each message. Added protection against erroneous messages.
● Rugged metal shell connectors provide secure connections. Suitable for portable or airborne applications.
● Support includes a menu driven configuration program, Visual Basic and LabView programs. Easy to use, easy to program.
● Companion Terminal Board simplifies test connections. Saves connection time.

ICS Serial Data Acquisition and Control Board 2307 provides analog and digital signals for controlling a device and the capability to read back analog voltages, digital signals and temperatures. The ICS Serial Data Acquisition and Control Board 2307's serial interface has selectable RS-232, RS-422 or RS-485 signals and supports point-to-point or network connections. The ICS Serial Data Acquisition and Control Board 2307 has a SCPI command parser and an IEEE-488.2 Status Structure so it provides the user with true GPIB functionality over a serial link.
Meer informatie
Art.nr.
2307
Fabrikant
ICS Electronics
Land van herkomst
Verenigde Staten
Interface Specifications

Provides RS-232 and RS-422/RS-485 asynchronous serial interfaces. Signal type selected by jumpers on the board.

RS-232 Interface
Signals AB, BA and BB
Mode Full Duplex
RS-422/RS-485 Signals
Signals TX/RX pairs
Mode Half duplex with or without network address detection.
Data Rates and Formats
Baud Rate 300 to 115.2 Kbaud
Data Bits 7 or 8
Stop Bits 1 or 2
Parity Odd, Even or None
Command Sets
SCPI and short form commands plus the following IEEE-488.2 Common Commands:
*CLS, *ESE, *ESE?, *IDN?, *OPC, *OPC?, *PSC, *PSC?, *RCL, *RST, *SAV, *SRE, *SRE?, *TRG, *TST, and *WAI.
Digital I/O

32 lines configurable as input or outputs in 8-bit byte increments.

Input Logic Levels
High = > +2.4 V
Low = <0.5 V
33 KΩ pullup to +5 VDC for normally open contacts.
Output Logic Levels
High = >3 V, 3 mA source
High = >2 V, 24mA source
Low = 0.0 to +0.8 VDC, 48 mA sink
Analog Inputs

6 single ended inputs with programmable ranges.

Ranges ±10, ±5, 0 to +5, 0 to + 10VDC
Resolution 1 part in 12 bits
Accuracy 4 bits
Offset 5 bits (Zero and endpoints)
Scaling Offset and gain
Scan Rate 50 samples/sec.
Averaging 1 to 100 samples
Response 8.5 ms after terminator
Analog Outputs

4 outputs with common ground.

Vout 0 to 4.99 VDC
(Limited to VCC-30 mV)
Resolution 1 part in 10 bits (4.88 mv)
Accuracy 2 bits (Non-linearity)
Offset 4 bits (Zero and endpoint)
Load 5 kΩ maximum
Scaling Offset and Gain
Update 8 ms after terminator
Driver Outputs

6 open collector relay drivers

Imax 300 mA
Vmax 48 VDC
Response 2 ms after terminator
Temperature Measurements

Four type J thermocouple inputs

Range -100 to +400 °C
Resolution 0.1 °C
Accuracy ±2 °C exclusive of thermocouple error
Filter 1 to 100 samples
Diagnostic Indicators
Six on Board LEDs PWR, RDY, MTA, MLA, SRQ and ERR.
Grootte
139.7 x 114.3 x 12.7mm (L x W x H)
Connectors and Headers
GPIB 26-pin (2 row x 13 pin) header
Data 62-pin DC shell female connector
Power 2 screw terminals
Omgeving
Operation Temperature -10 °C ~ +70 °C
Storage Temperature -20 °C ~ +85 °C
Humidity 0-90% RH, no condensation
Power
+5 ± 0.2 VDC@ 400 mA (typ)
Included Accessories
Instruction Manual
Support CD with configuration programs ans sample Visual Basic program
62-pin mating connector and hood
