Power Supplies

● Universal input voltage
● 3 pole AC inlet IEC320-C14
● Class power (with earth pin)
● Protections: Short circuit / Overload/Over voltage
● PWM 3842 control circuit and regulated
● Approvals: UL/CUL/TUV/BSMI/CB /FCC/CE

Isolated Power Module

● 1000 VDC isolation
● Flexible DIN-Rail Mounting

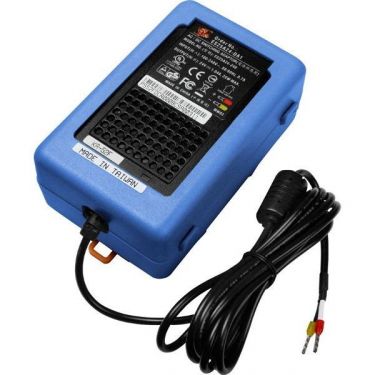

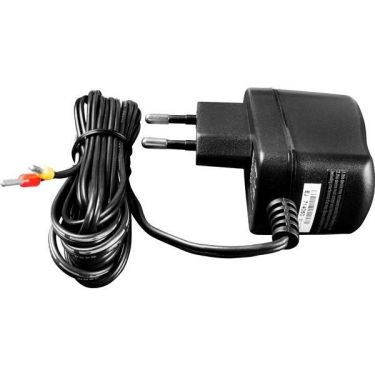

24 V/0.25 A (max.) Power Supply with 2 pole EURO plug

● Universal input voltage
● No load power consumption <0.3W
● ErP step2 compliant
● Meet EISA 2007 (Energy Independence and Security Act)
● 2 pole EURO plug
● Class power (without earth pin)
● Protections: Short circuit/Overload/Over voltage
● PASS LPS
● Fully enclosed plastic case

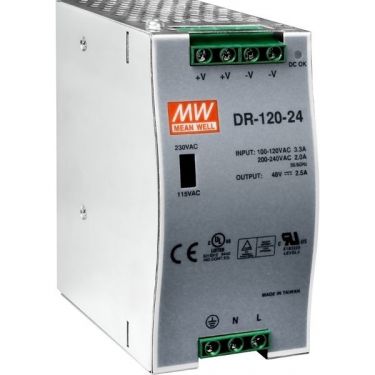

120 W Single Output Industrial DIN-Rail Power Supply

● Universal AC input/Full range
● Protections: Short circuit / Overload / Overvoltage
● Cooling by free air convection
● Can be installed on DIN rail TS-35/7.5 or 15
● UL 508(industrial control equipment) approved
● LED indicator for power on
● Fixed switching frequency at 55 KHz
● 100% full load burn-in test

48V/0.52A, 25 W Power Supply

● Universal input voltage
● 3 pole AC inlet IEC320-C14
● Class power (with earth pin)
● Protections: Short circuit/Overload/Overvoltage
● PWM 3842 control circuit and regulated
● Approvals: UL / CUL / TUV / BSMI / CB / FCC / CE

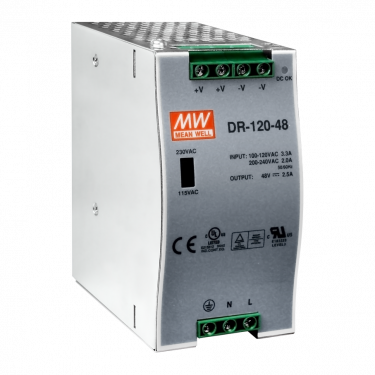

48 V/2.5 A, 120 W Single Output Industrial DIN-Rail Power Supply

● Universal AC input/Full range
● Protections: Short circuit / Overload / Overvoltage
● Cooling by free air convection
● Can be installed on DIN rail TS-35/7.5 or 15
● UL 508 (industrial control equipment) approved
● LED indicator for power on
● Fixed switching frequency at 55KHz
● 100% full load burn-in test

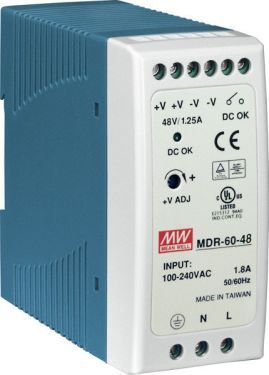

48 V/1.25 A, 60 W Single Output Industrial DIN-Rail Power Supply

● Universal AC input/Full range
● Protections: Short circuit / Overload / Overvoltage
● Cooling by free air convection
● Can be installed on DIN-Rail TS-35/7.5 or 15
● NEC class 2 / LPS compliant (48V only)
● LED indicator for power on
● DC OK relay contact
● No load power consumption <0.75 W
● 100% full load burn-in test

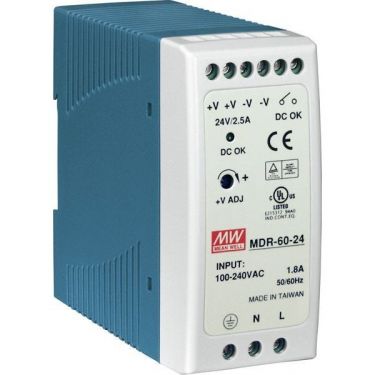

60 W Single Output Industrial DIN-Rail Power Supply

● Universal AC input/Full range
● Protections: Short circuit / Overload / Overvoltage
● Cooling by free air convection
● Can be installed on DIN-Rail TS-35/7.5 or 15
● NEC class 2 / LPS compliant (24 V,48 V only)
● LED indicator for power on
● DC OK relay contact
● No load power consumption <0.75W
● 100% full load burn-in test
● 3 years warranty

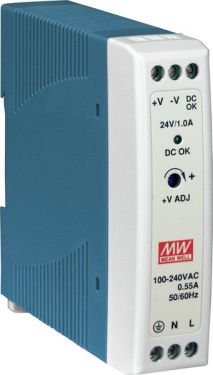

24 W Single Output Industrial DIN-Rail Power Supply

● Universal AC input/Full range
● Protections: Short circuit / Overload / Overvoltage
● Cooling by free air convection
● Can be installed on DIN rail TS-35/7.5 or 15
● NEC class 2 / LPS compliant
● Built in DC OK active signal
● DC OK relay contact
● No load power consumption <0.75 W
● 100% full load burn-in test
● 3 years warranty

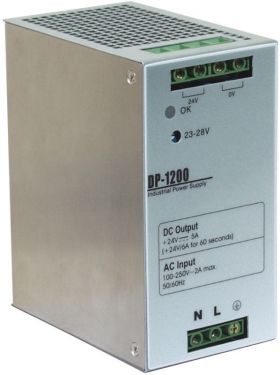

24 V/5 A Power Supply

● With built in PFC
● 90% efficiency
● 60% power boost ability
● 23 V ~ 28 V adjustable range

24 V/1.7 A Power Supply

● Input voltage: 90 VAC to 264 VAC
● Input frequency: 47 Hz to 63 Hz
● Inrush current (Cold start) less than 10 A at 115 VAC; less than 21 A at 230 VAC
● DC Outputs: +24 V/1.7 A
● Efficiency: higher than 70% at nominal line and rated load
● Holdup time: >20 ms at rated load and 115 VAC
● Overload protection: auto recovery
● Short circuit protection: auto recovery
● Overvoltage protection: crowbar
● Operating temperature: 0 °C to 50 °C
● Cooling: Free air convection
● Storage temperature: -20 °C to +85 °C

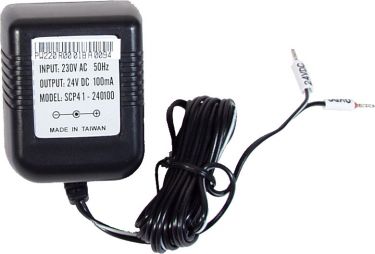

AC 230V input, round type power adapter

● Cost-effective power adapter
● Input 230Vac 50 Hz: 55mA
● Secondary no load: DC voltage: 29.2V; ±5%
● Secondary DC voltage: Load 200 mA: 24.0 V; ±5% (4.8AV)
● High protection test: PRI. TO SEC. & CORE: AC 1240/min; SEC TO CORE: AC 500 V

48 V/0.52 A, 25 W Power Supply with DIN-Rail Mounting

● Universal input voltage
● 3 pole AC inlet IEC320-C14
● Class power (with earth pin)
● Protections: Short circuit/Overload/Overvoltage
● PWM 3842 control circuit and regulated
● Approvals: UL / CUL / TUV / BSMI / CB / FCC / CE

48 V/0.52 A, 25 W Power Supply

● Universal input voltage
● 3 pole AC inlet IEC320-C14
● Class power (with earth pin)
● Protections: Short circuit / Overload / Overvoltage
● PWM 3842 control circuit and regulated
● Approvals: UL / CUL / TUV / BSMI / CB / FCC / CE

24 V/1.04 A, 25 W Power Supply with DIN-Rail Mounting

● Universal input voltage
● 3 pole AC inlet IEC320-C14
● Class power (with earth pin)
● Protections: Short circuit / Overload / Overvoltage
● PWM 3842 control circuit and regulated
● Approvals: UL / CUL / TUV / BSMI / CB / FCC / CE

24 V/1.04 A, 25 W Power Supply

● Universal input voltage
● 3 pole AC inlet IEC320-C14
● Class power (with earth pin)
● Protections: Short circuit / Overload / Overvoltage
● PWM 3842 control circuit and regulated
● Approvals: UL / CUL / TUV / BSMI / CB / FCC / CE
