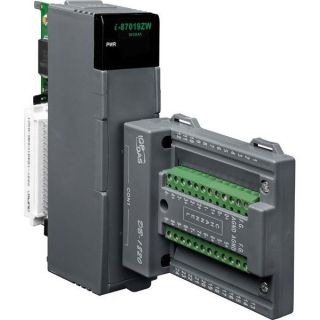

ICPDAS I-87019ZW
8-channel Universal Analog Input Module with High Voltage Protection
● 10-channel Analog Input
● Individual Channel Configuration
● Open Thermocouple Detection
● Temperature Output Consistency
● Stable Temperature Output in the Field
● 240 Vrms Overvoltage Protection
● Jumper Selectable Voltage or Current Input
● 4 kV ESD Protection
● Dual Watchdog
● 3000 VDC Intra-module Isolation, Field-to-Logic
● Operation Temperature Range: -25 °C ~ +75 °C
With different communication interface, the I/O modules can be classified to high communication speed (Parallel bus) 8K series modules and low communication speed (serial interface) 87K series modules.
There are two types of I/O modules, Parallel and Serial. The parallel modules (I-8 Series) are high-speed modules and support MCU (Main Control Unit) only. | |
Item | I-87K Series |
Communication Interface | Serial Bus |
Protocol | DCON |
Communication Speed | Slow |
DI with Latched Function | Y |
DI with Counter Input | Y (100 Hz) |
Power On Value | Y |
Safe Value | Y |
Programmable Slew-rate for AO Module | Y |
High Profile VS Low Profile
With different form factor, I/O modules can be classified to high profile and low profile. Basically, high profile and low profile modules that with same item number also have same I/O channel number.
For example: I-8054 and I-8054W both has 8 DI and 8 DO.
Except I/O channel number, other specifications could be different. You have to double check whether the specifications suit your application.
For example: For I-8054W, its DI logic high level is +10 ~ +50V. But for I-8054, it is +3.5 ~ +30V
I-87K Series | ||
High Profile | Low Profile | |
XPAC | Y | - |
WinPAC | Y | - |
LinPAC | Y | - |
iPAC | Y | - |
ViewPAC | Y | - |
RU-87P1/2/4/8 | Y | - |
USB-87P1/2/4/8 | Y | - |
WinCon | Y | Y |
LinCon | Y | Y |
I-8000 | Y | Y |
I-8KE4/8 | Y | Y |
I-8KE4/8-MTCP | Y | Y |
I-87K4/5/8/9 | Y | Y |
Input Channels | 10 Differential | ||||
Input Type |
|
||||
Resolution | 16-bit | ||||
Sampling Rate | 10 samples/sec. (Total) | ||||
Accuracy | ±0.1% | ||||
Zero Drift | ±20 μV/°C | ||||
Span Drift | ±25 μV/°C | ||||
Common Mode Rejection | 86 dB | ||||
Normal Mode Rejection | 100 dB | ||||
Input Impedance | Voltage Input: >400 kΩ, Current Input: 125 Ω | ||||
Individual Channel Configuration | Yes | ||||
Overvoltage Projection | 240 Vrms | ||||
Open Thermocouple Detection | Yes (Software selectable) | ||||
ESD Protection | ±4 kV, Contact for Each Terminal | ||||
Intra-module Isolation, Field-to-Logic | 3000 VDC |
Interface | RS-485 |
Format | N, 8, 1; N, 8, 2; E, 8, 1; O, 8, 1 |
Baud Rate | 1200 ~ 115200 bps |
Dual Watchdog | Yes, Module (1.6 seconds) and Communication (Programable) |
1 LED | Power/Communication Indicator |
Power Consumption | 1.4 W max. |
Dimensions (w x l x h) | 30 x 86 x 114 mm |
Operating Temperature | -25 °C ~ +75 °C |
Storage Temperature | -40 °C ~ +85 °C |
Humidity | 5 ~ 95% RH, non-condensing |
