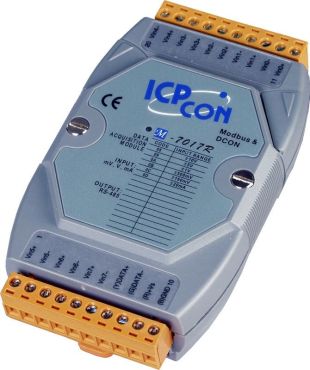

ICPDAS I-7017R

Levertijd:

2~7 dagen

SKU

I-7017R

8-channel High-speed Analog Input Module with 8 differential input channels

● Input channels: 8 differential
● Input Types: mV, V, mA (requires optional external 125 Ω resistor)
● Sampling Rate: 10/60 samples/sec total
● -3dB Bandwith: 15.7 Hz.
● Accuracy: ±0.1%
● Common Mode Rejection: Typical 86 dB
● Voltage Imput Impedance: >2 MΩ
● Overvoltage Protection: 240 Vrms
● Isolation Voltage: 3000 Vrms
● Dual Watchdog

Details

I-7000 is a family of network data acquisition and control modules. They provide analog-to-digital, digital-to-analog, digital input/output, timer/counter and other functions. These modules can be remote controlled by a set of commands. The common features of analog input modules are given as follows:

● 3000 VDC Isolated analog input.
● 24-bits sigma-delta ADC to provide excellent accuracy.
● Software calibration

SPECIFICATIES

Meer informatie

Art.nr.

I-7017R

Fabrikant

ICPDAS

Analog Input

Input Channels	8 differential
Input Type	mV, V, mA (requires optional external 125 Ω resistor)
Resolution	16-bit
Sampling Rate	10/60 samples/sec total
Accuracy	±0.1%
-3dB Bandwidth	15.7 Hz
Zero Drift	±20 uV/°C
Span Drift	±25 ppm/°C
Input Impedance	20 MΩ
Common Mode Rejection	Typical 86 dB min
Normal Mode Rejection	100 dB
Overvoltage Protection	±35 V (P-P)
Intra-module Isolation, Field to Logic	3000 VDC
Voltage Input Impedance	2 MΩ

Interface

Interface	RS-485
Format	N, 8, 1
Baud Rate	1200 ~ 115200 bps

LED Indicators

LED	Power/Communication

Power

Input	+10 VDC ~ +30 VDC
Power Consumption	1.3 W

Omgeving

Operating Temperature	-25 °C ~ 75 °C
Storage Temperature	-40 °C ~ 85 °C
Humidity	5 ~ 95% RH, non-condensing
