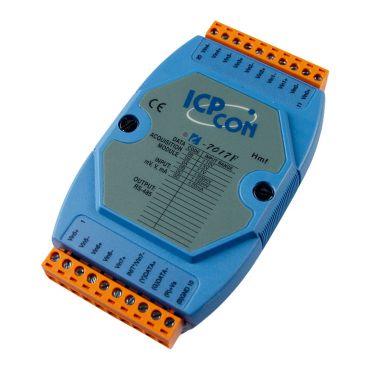

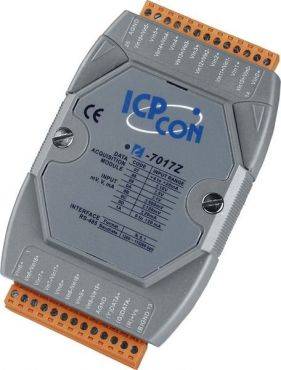

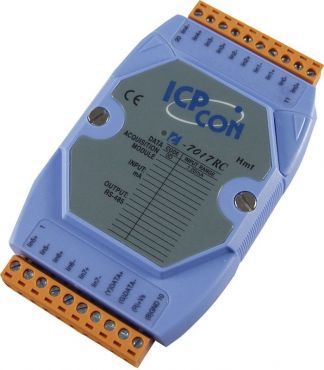

I-7017 - 8-channel analog input module

Levertijd:

Uit voorraad leverbaar

SKU

I-7017

8-channel Analog Input Module

● Input types: mV, V, mA (requires optional external 125 Ω resistor)
● Input Ranges: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA
● Channels: 6 differential, 2 single-ended or 8 differential (jumper selectable)
● Sampling rate: 10 samples/sec. total
● Dual Watchdog

Details

I-7000 is a family of network data acquisition and control modules. They provide analog-to-digital, digital-to-analog, digital input/output, timer/counter and other functions. These modules can be remote controlled by a set of commands. The common features of analog input modules are given as follows:

● 3000 VDC Isolated analog input.
● 24-bits sigma-delta ADC to provide excellent accuracy.
● Software calibration

SPECIFICATIES

Meer informatie

Art.nr.

I-7017

Fabrikant

ICPDAS

Analog Input

Input Channels

8 differential or 6 differential and 2 single- ended by jumper select

Input Type

±150 mV, ±500 mV , ±1 V, ±5 V, ±10 V
