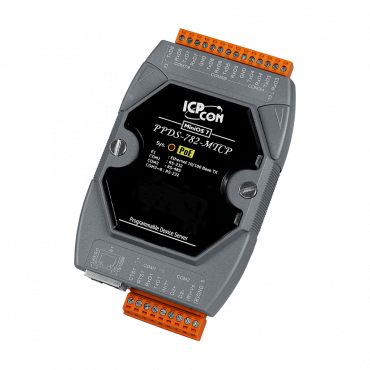

ICPDAS PPDS-743-MTCP
Programmable Device Server with PoE, Modbus Gateway, 3 RS-232 ports and 1 RS-485 port
● Incorporate Serial Devices in an Ethernet network
● "Virtual COM" Extend COM Ports
● Virtual COM on Windows NT 4.0, 2000/XP/2003 and Vista32
● Powerful Programmable Device Server
● Watchdog Timer suitable for use in harsh environments
● Power Reverse Polarity Protection
● Serial Port ±4 kV ESD Protection Circuit
● Self-Tuner ASIC Controller on the RS-485 Port
● Built-in High Performance MiniOS7
● 10/100 Base-TX Ethernet, RJ-45 Port (Auto-negotiating, auto MDI/MDI-X, LED indicator)
● ODM Service Is Available
● Low power consumption
● Palm-Sized with multiple Serial Ports
● Made from fire retardant materials (UL94-V0 Level)
● Supports D/I, Latched D/I and Counter Functions
● Supports Modbus TCP to RTU/ASCII Gateway
● Supports PoE (IEEE 802.3af, Class 1)
The PDS-700 series is a family of Programmable Device Servers, also known as "Serial-to-Ethernet gateway", that are designed for linking RS-232/422/485 devices to an Ethernet network.
The user-friendly VxComm Driver/Utility allows users to easily turn the built-in COM ports of the PDS-700 series into standard COM ports on a PC. By virtue of its protocol independence, a small-core OS and high flexibility, the PDS-700 series is able to meet the demands of every network-enabled application.
The PDS-700 series includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in, high-performance MiniOS7 boots the PDS-700 up in just one second and gives you fastest responses.
The PPDS-700-MTCP series features true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch like the NS-205PSE. The PPDS-700-MTCP also works as a Modbus TCP to RTU/ASCII gateway that supports most SCADA/HMI communications based on the Modbus/TCP protocol.
The PDSM-700 is the PDS-700 with Metal Case (RoHS) and the PPDSM-700-MTCP is the PPDS-700-MTCP with Metal Case (RoHS). Metal Case version includes stronger protection than PDS-700 and PPDS-700-MTCP.
The PPDS-743-MTCP is equipped with 3 RS-232 ports, 1 RS-485 port and DI/DO. The removable on-board terminal block connector is designed for easy and robust wiring in industrial situations.
APPLICATIONS
● Factory Automation
● Building Automation
● Home Automation
Output Channel | 4 |
Output Type | Open Collector (Sink/NPN) |
Load Voltage | 30 VDC, max. |
Load Current | 100 mA, max. |
Isolated Voltage | Non-isolated |
Input Channel | 4 | ||||
Input Type | Source (Dry Type), Common Ground | ||||
Off Voltage Level | +1 V max. | ||||
On Voltage Level | +3.5 ~ +30 V | ||||
Isolated Voltage | Non-isolated | ||||
Counters |
|
CPU | 80186-80 MHz or compatible |
SRAM | 512 KB |
Flash Memory | Flash ROM: 512 KB; Erase unit is one sector (64 KB); 100,000 erase/write cycles |
EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles |
Built-in Watchdog Timer | Yes |
Non-isolated COM1 | RS-232 (TxD, RxD, RTS, CTS,GND) |
Non-isolated COM2 | RS-485 (D2+, D2-,GND) |
Non-isolated COM3 | RS-232 (TxD, RxD,GND) |
Non-isolated COM4 | RS-232 (TxD, RxD,GND) |
Ethernet | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
PoE | IEEE 802.3af |
Data Bit |
|
||
Parity | None, Even, Odd, Mark, Space | ||
Stop Bit |
|
||
Baud Rate | 115200 bps Max. |
Protection | Power Reverse Polarity Protection |
Required Supply Voltage | PoE or +12 VDC ~ +48 VDC (non-regulated) |
Power Consumption | 2.2 W |
5-digit 7 Segment | No |
System | Red |
PoE | Green |
Flammability | Fire Retardant Materials (UL94-V0 Level) |
Dimensions (w x h x d) | 72 x 123 x 35mm |
Installation | DIN-Rail or Wall Mounting |
Casing | Fire Retardant Plastic |
Operating Temperature | -25 ~ +75 °C |
Storage Temperature | -40 ~ +80 °C |
Humidity | 5 ~ 90% RH, non-condensing |
