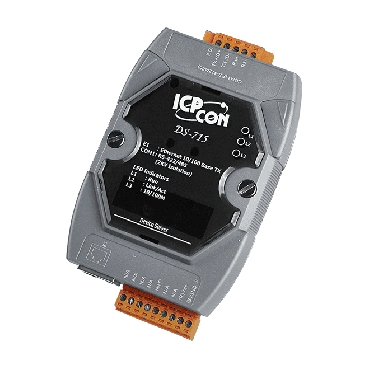

Programmable Device Server with PoE, Modbus Gateway and 1 Isolated RS-422/485 port
● Incorporate Serial Devices in an Ethernet network ● "Virtual COM" Extend COM Ports ● Virtual COM on Windows NT 4.0, 2000/XP/2003 and Vista32 ● High Performance Device Server ● Watchdog Timer suitable for use in harsh environments ● Power Reverse Polarity Protection ● Serial Port ±4 kV ESD Protection Circuit ● Built-in High Performance MiniOS7 ● 10/100 Base-TX Ethernet, RJ-45 Port (Auto-negotiating, auto MDI/MDI-X, LED indicator) ● ODM Service Is Available ● Low power consumption ● Palm-Sized with multiple Serial Ports ● Made from fire retardant materials (UL94-V0 Level) ● Self-Tuner ASIC Controller on the RS-485 Port ● Supports Modbus TCP to RTU/ASCII Gateway ● Supports PoE (IEEE 802.3af, Class 1)
The PPDS-715-MTCP is a programmable product. This series features true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch like the NS-205PSE.
The PPDS-715-MTCP also works as a Modbus TCP to RTU/ASCII gateway that supports most SCADA/HMI communications based on the Modbus/TCP protocol.
APPLICATIONS
● Factory Automation ● Building Automation ● Home Automation
