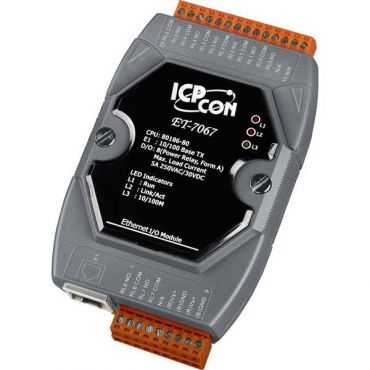

ICPDAS PET-7067

Levertijd:
2~7 dagen
SKU
PET-7067

8-channel Power Relay Output Module PoE Module

● PoE Ethernet Options
● Built-In Web Server
● Web HMI
● Modbus/TCP, Modbus/UDP Protocol
● Communication Security
● Dual Watchdog
● Operating Temperature: -25 °C ~ +75 °C
● I/O Pair Connection
● Built-In I/O (PhotoMOS Relay: 8 Channels)

The ET-7000/PET-7000, a web-based Ethernet I/O module, features a built-in web server which allows configuration, I/O monitoring and I/O control by simply using a regular web browser. Remote control is as easy as surfing the Internet.

Besides, with the web HMI function, no more programming or HTML skills are required; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun to engineers ever after. The ET-7000/PET-7000 offers easy and safe access for users from anytime and anywhere! In addition, the ET-7000/PET-7000 also supports Modbus/TCP protocol that makes perfect integration to SCADA software.

Furthermore, PET-7000 features "PoE" that not only data but also power is carried through an Ethernet cable. This feature makes installation of PET-7000 a piece of cake. Imagine that no more unnecessary wires, only an Ethernet cable takes care of everything in the field.

The PET-7067, a web-based Ethernet I/O module, features a built-in web server, which allows configuration, I/O monitoring and I/O control by simply using a regular web browser. Besides, with the web HMI function, no more programming or HTML skills are needed; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun to engineers ever after.

The ET-7067 offers easily and safely access for users from anytime and anywhere! In addition, the ET-7067 also supports Modbus/TCP protocol that makes perfect integration for ET-7067 to SCADA software.

The PET-7067 provides 8 power relay (form A) output channels. Each power relay supports contact rating as 5A@250V AC or 5A@30V DC.



APPLICATIONS:
● Building Automation
● Factory Automation
● Machine Automation
● Remote Maintenance
● Remote Diagnosis
● Testing Equipment

Meer informatie
Art.nr.
PET-7067
Fabrikant
ICPDAS
CPU
CPU 80186, 80 MHz
SRAM 512 KB
Flash Memory 512 KB
EEPROM 16 KB
Dual Watchdog Yes
Software
Built-In Web Server Yes
Web HMI Yes
I/O Pair Connection Yes
Communication
Ethernet Port 10/100 Base-TX with Auto MDI/MDI-X
Protocol Modbus/TCP, Modbus/UDP
Security ID, Password and IP Filter
Dual Watchdog Yes, Module (0.8 second), Communication (Programmable)
Power Relay
Output Channels 8
Type Power Relay, Form A (SPST N.O.)
Operating Voltage Range 250 VAC/30 VDC
Max. Load Current 5.0A/channel at 25 °C
Operate Time 6 ms (Typical)
Release Time 3 ms (Typical)
Electrical Life
(Resistive Load)
VDE 5A 250 VAC 30,000 ops (10 ops/minute) at 75 °C
5A 30 VDC 70,000 ops (10 ops/minute) at 75 °C
UL 5A 250 VAC/30 VDC 6,000 ops
3A 250 VAC/30 VDC 100,000 ops
Mechanical Life 20,000,000 ops. at no load (300 ops./minute)
Power On Value Yes, Programmable
Safe Value Yes, Programmable
2-Way Isolation
Ethernet -
I/O 3000 Vrms
EMS Protection
ESD (IEC 61000-4-2) 4 kV Contact for each terminal
EFT (IEC 61000-4-4) ±2 kV for Power
LED Indicators
LED 1 System Running
LED 2 Ethernet Link/Act
LED 3 Ethernet 10/100 M Speed
LED 4 PoE Power
Power
Reverse Polarity Protection Yes
Powered from Terminal Block Yes, 12 ~ 48 VDC
Powered from PoE Yes, IEEE 802.3af, Class1
Consumption 5.3 W
Mechanical
Dimensions (w x l x d) 72 x 123 x 35mm
Installation DIN-Rail or Wall Mounting
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Humidity 10 ~ 90% RH, non-condensing
