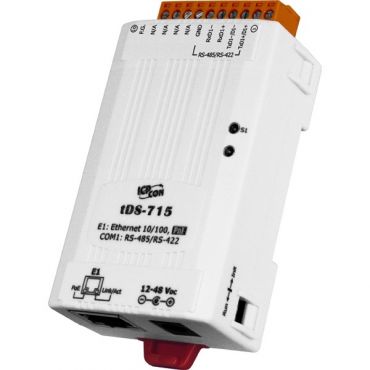

ICPDAS DS-715
Device Server with 1 Isolated RS-422/RS-485 port
● Incorporate Serial Devices in an Ethernet network
● "Virtual COM" Extend COM Ports
● Virtual COM on Windows NT 4.0, 2000/XP/2003 and Vista32
● High Performance Device Server
● Watchdog Timer suitable for use in harsh environments
● Power Reverse Polarity Protection
● Serial Port ±4 kV ESD Protection Circuit
● RoHS Compliant with no Halogen
● Built-in High Performance MiniOS7 from ICP DAS
● 10/100 Base-TX Ethernet, RJ-45 Port
(Auto-negotiating, auto MDI/MDI-X, LED indicator)
The DS-700 is a series of Serial-to-Ethernet Device Servers that are designed for linking RS-232/422/485 devices to an Ethernet network. By using the VxComm Driver/Utility, the built-in COM port of the DS-700 series can be virtualized to a standard PC COM port in Windows. By virtue of its protocol independence, a small size and flexibility, the DS-700 series meets the demands of virtually any network-enabled application.

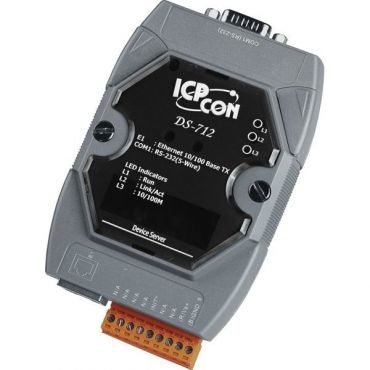

The DS-715 is equipped with a male DB-9 connector and supports a 5-wire RS-232 port, while the DS-715 is equipped with a removable terminal block connector and supports a 4-wire RS-422 port or a 2-wire RS-485 port with 2000Vrms isolation.
The DS-700 is a non-programmable device server, while the PPDS-700-MTCP is a programmable product. The PPDS-700-MTCP series features true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch like the NS-205PSE. The PPDS-700-MTCP also works as a Modbus TCP to RTU/ASCII gateway that supports most SCADA/HMI communications based on the Modbus/TCP protocol.
APPLICATIONS
● Factory Automation
● Building Automation
● Home Automation
| CPU | 80186-80 MHz or compatible |
| SRAM | 512 KB |
| Flash Memory | Flash ROM: 512 KB |
| EEPROM | 16 KB; Data return: 40 years |
| Built-in Watchdog Timer | Yes |
| Isolated (2000Vrms): COM1 |
|
||
| Ethernet | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) | ||
| PoE | - |
| Data Bit | 7, 8: for COM1 |
| Parity | None, Even, Odd, Mark, Space |
| Stop Bit | 1: for COM1 |
| Baud Rate | 115200 bps Max. |
| Protection | Power Reverse Polarity Protection |
| Required Supply Voltage | +12 VDC ~ +48 VDC (non-regulated) |
| Power Consumption | 2.2 W |
| L1 | Run (Red) |
| L2 | Link/Act (Red) |
| L3 | 10/100M (Orange) |
| PoE | - |
| Flammability | Fire Retardant Materials (UL94-V0 Level) |
| Dimensions (w x h x d) | 72 x 124 x 35mm |
| Installation | DIN-Rail or Wall mounting |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
