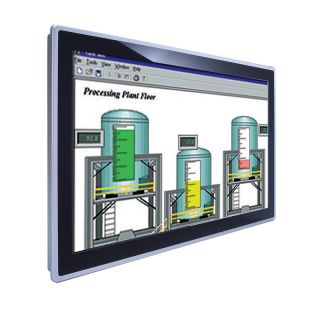

Axiomtek Panel PC GOT3187WL-834-PCT
18.5" WXGA TFT Multi-Touch Panel Computer with Intel® Celeron® Processor J1900 (0°C ~ +40°C)
● 18.5" WXGA wide screen
● Multi-Touch 18.5" projected capacitive
● Fanless design with Intel® Celeron® Processor J1900
● Supports 2.5" SATA HDD & CFast™ or mSATA
● Supports 4G, WLAN module & antennas (optional)
● Supports 2 Gigabit LANs, 2 USB 3.0, 2 USB 2.0 & 2 COM ports
● IP65 aluminum front bezel
● Supports panel mount and optional VESA arm/desktop stand/ wall mount
● Supports wide temperature range of 0°C ~ +40°C
● Adjust RS-232/422/485 setting via BIOS
The GOT3187WL-834-PCT adopts an 18.5-inch WXGA LCD and supports Intel® Bay Trail-D processor.
The Lite rugged industrial panel PC supports low power Intel® Celeron®processor J1900.
It also provides two PCI Express Mini card slots for 3G, wireless network connectivity. This 18.5" multi-touch panel computer is suitable for transportation,
heavy-duty industry, smart factory automation, and oil pipe monitoring systems.
18.5-inch WXGA LCD with Projected Capacitive Multi-touch
The 18.5" WXGA touch panel PC supports 250 nits brightness and can display contents in
HD resolution. With projected capacitive multi-touch screen, users can operate the device
more directly and friendly. The hardness of touch glass surface is up to 7h for anti-scratch
purpose.
WLAN Antenna Supported (optional)
The IP65-rated industrial panel PC, GOT3187WL-834-PCT, provides two PCI Express Mini
card slots and WLAN antennas for 3G and wireless network connectivity.
Display Type | 18.5" WXGA TFT LCD |
Brightness (cd/m2 ) | 250 nits |
Resolution | 1366 x 768 |
CPU | CPU Intel® Bay Trail-D Celeron®Processor J1900 4C (up to 2.42 GHz) |
Onboard Graphics | Integrated Intel® GFX |
System Memory | 1 x 204-pin DDR3L SO-DIMM max.up to 8 GB |
Storage | 1 x 2.5" SATA HDD 1 x CFast™ 1 x mSATA |
COM | 2 x RS-232/422/485 |
USB | 2 x USB 3.0 2 x USB 2.0 |
Ethernet | 2 x 10/100/1000Mbps |
Audio | Line out & MIC-in |
1 x Full-Size Mini PCI Express Mini Card with SIM Slot
AC version : 12VDC w/adapter
Relative humidity: 20% ~ 90% @ 40°C; non-condensing
Operation vibration: 2G, 10 ~ 500Hz, random for CFast™ card
Windows 10 Professional
Windows Embedded 7 Standard
