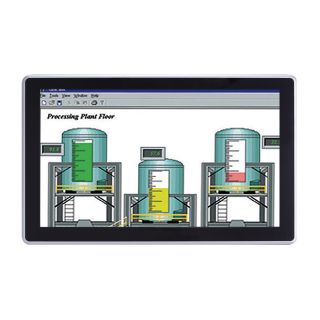

Axiomtek Panel PC GOT318W-521
18.5" FHD TFT Multi-touch Panel Computer with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3, Intel® Pentium® Processors Gold/Celeron® Processors (Tj 100°C, TDP 35W)
● 18.5" FHD projected capacitive multi-touch or 5-wire resistive touch
● Supports WLAN module & antenna (optional)
● 2.5" SATA HDD/SSD
● 2 LAN, 4 USB, 2 COM, 1 HDMI, 1 DP and 1 VGA
● IP65-rated aluminum front bezel
● Supports panel mount and VESA mount and wall mount
The GOT318W-521 adopts a 18.5-inch TFT LCD and supports LGA1151 Socket 9th Generation Intel® Core™ i7/i5/i3 & Celeron® processor that can support Windows® 11, Windows® 10 Embedded, and variety applications.
This fanless platform has below abilities make it surely a robust and cost-effective solution.
High Performance Intel® Core™-based Haswell Processor
The GOT318W-521 supports LGA1151 Socket Intel® Core™ i7/i5/i3 & Celeron® processors. User can choose different processors for different applications. It also
supports up to 32 GB DDR4 MHz memory modules. There are rich I/O, such as dual PCIe Mini Card slot, Removable 2.5” SDD bay, USB 3.0 port, RS-232/422/485, HDMI/DP output. This platform is a power-efficient solution.
Reliable and Stable Design
The GOT318W-521 is a fanless cooling system, which makes it suitable for vibration environments, such as the industrial machinery markets. For high capacity storage requirement, the industrial panel PC can work under 1G (10 ~ 500Hz, random for SSD) in operation mode with a patent of anti-vibration design. The patent improves the system reliability and sustainability.
18.5-inch Projected Capacitive Multi-touch
18.5 inch WXGA TFT LCD is with 500nits higher brightness and can displays contents in Full HD resolution. With projected capacitive multi-touch or 5-wire resistive touch, users can operate more directly and friendly.
| Display Type | 18.5" WXGA TFT LCD |
| Brightness (cd/m2 ) | 500 nits |
| Resolution | 1920 x 1080 |
| CPU | LGA1151 socket 9th generation Intel® Core™ i7/i5/i3 or Celeron® processor |
| Chipset | Intel® H310 |
| System Memory |
1 x 260-pin DDR4-2666/2400 SO-DIMM, up to 32GB |
| Storage | 1 x 2.5" SATA SDD 1 x mSATA |
| COM |
2 x RS-232/422/485 (COM1/2) |
| USB |
2 x USB 3.0 |
| Ethernet |
2 x 10/100/1000Mbps |
| Display |
1 x HDMI/DP/VGA |
| Audio |
Line out |
1 x M.2 Key E 2230 (for Wi-Fi)
24V DC
Operating temperature: 0°C ~ +50°C
Storage temperature: -20°C ~ +60°C
Relative humidity: 20% ~ 90% @ 40°C; non-condensing
Operation vibration: 1G, 10 ~ 500Hz
Windows 10 Professional
Windows 11 Professional
Windows IoT 10
