Axiomtek Panel PC GOT3177T-834
Levertijd:
Uit voorraad leverbaar
SKU
GOT3177T-834

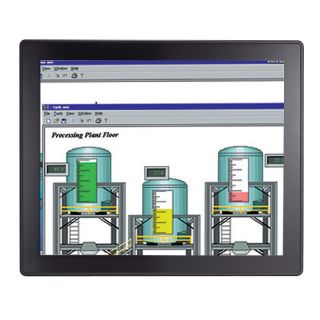

17" SXGA TFT Flat Front Bezel Touch Panel Computer with Intel® Bay Trail-D Celeron® Processor J1900 (-10°C ~ +50°C)
● 17" SXGA TFT with modulized design
● Supports 17" flat resistive touch
● Fanless design with Intel® Celeron® processor J1900 [email protected]
● Supports 2.5 SATA HDD & CFast™ or mSATA
● Supports WLAN/3G module and antenna (optional)
● Supports 2 Giga LAN, 2 USB 2.0, 2 USB 3.0 and 2 COM ports
● IP65 front bezel
● Supports panel mount and optional VESA arm/desktop stand/ wall mount
● Supports wide temperature range of -10°C ~ +50°C
The GOT3177T is a 17" SXGA fanless touch panel computer. By supporting a wide temperature range from -10°C ~ +50°C, it can be used in any harsh environment. The
unit adopts 17" SXGA TFT-LCD and low power consumption Intel® Celeron® processor. With the growing demand of wireless application, it provides two mini card slots for
wireless/3G network connection. By just plugging in the WLAN/3G mini card, customers have instant access wireless environment. This model is suitable for many applications including transportation, train, control platform of ships, heavy industry, and oil pipe monitoring systems.
Wide-temperature (-10°C ~ +50°C) supported
The 17-inch industrial panel PC GOT3177T adopts unique extended temperature technology, with a temperature range from -10°C ~ +50°C, with fanless cooling system
and compact design for harsh environment.
WLAN and 3G antennas supported (optional)
The GOT3177T provides two Mini card slots and WLAN/3G antennas for network connections. By simply plugging in the WLAN/3G mini card, customers can use the unit in
a wireless environment.
Meer informatie
Art.nr.
GOT3177T-834
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Documenten
Front Bezel
IP65 front bezel
LCD Panel
| Display Type | 17" SXGA TFT LCD |
| Brightness (cd/m2 ) | 350 nits |
| Resolution |
1280 x 1024 |
Main System
| CPU | Intel® Bay Trail-D Celeron®Processor J1900 (up to 2.42 GHz) |
| Chipset | Onboard |
| System Memory | 1 x 204-pin DDR3L 1333 and 1600 MT/s SO-DIMM up to 8 GB |
BIOS
AMI UEFI BIOS
Storage
1 x 2.5" SATA /SSDHDD
1 x CompactFlash™ 1 x mSATA
1 x CompactFlash™ 1 x mSATA
Watchdog Timer
255 levels, 0~255 sec.
Onboard Graphics
Integrated in Intel® GFX
I/O Connector
2 x RS-232/422/485 (default RS-232)
1 x Audio (Line-out)
2 x USB3.0
2 x USB2.0
2 x 10/100/1000Mbps Ethernet (Intel® i210IT)
1 x Audio (Line-out)
2 x USB3.0
2 x USB2.0
2 x 10/100/1000Mbps Ethernet (Intel® i210IT)
Expansion Interface
1 x PCIe Mini Card slot (w/SIM slot, full size)<br>
1 x PCIe Mini Card slot (support mSATA optional, full size)
1 x PCIe Mini Card slot (support mSATA optional, full size)
Touchscreen
Flat resisitve touch
Power Supply
DC version : 9~36V DC
AC version : 12V DC met adapter
AC version : 12V DC met adapter
Grootte
398.02 mm (W) x 59.9 mm (D) x 330.44 mm
Weight (net/gross)
4.8 kg / 7.1 kg
Environmental
Operating temperature:
-10°C ~ +50°C
Storage Temperature:
-20°C ~ +60°C
Relative humidity:
20% ~ 90% @ 40°C non-condensing
Operation vibration:
2G , 10 ~ 500Hz, random for CFast™
-10°C ~ +50°C
Storage Temperature:
-20°C ~ +60°C
Relative humidity:
20% ~ 90% @ 40°C non-condensing
Operation vibration:
2G , 10 ~ 500Hz, random for CFast™
Certification
CE
Operating System
Windows® 7
Windows 7 Embedded
Windows® 8
Windows 8 Embedded
Windows 7 Embedded
Windows® 8
Windows 8 Embedded
