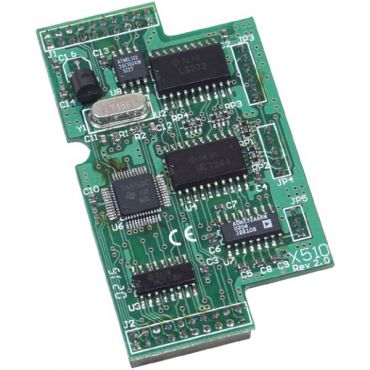

ICPDAS X510
Levertijd:
2~7 dagen
SKU
X510
1-Port RS-232 ( 3-Pin ) add 5-channel D/I, 5-channel D/O , EEPROM 128K x2
For 7188XB,7188XG,7188EX,7188EG,μPAC-7186EG
EG/XG not supporting EEPROM and Flash memory
Expansion boards for RS-232/422/485, DI, DO
Meer informatie
Art.nr.
X510
Fabrikant
ICPDAS
Digital Input
| Channels | 5 | ||
| Input Voltage |
|
||
| Isolated | None |
Digital Output
| Channels | 5 |
| Open-collector Output | 100 mA / 30V max. |
| Isolated | None |
Parallel I/O Module
| RS-232 port | 1 |
| COM3 | TXD, RXD, GND |
| 16550 compatible | |
| Internal FIFO | 16 bytes |
| Transmission speed | 115.2K BPS max. |
| EEPROM | 128K * 2 bytes |
| Endurance | 100.000 Write Cycles/Page |
| Data Retention | 40 Years |
| Isolated | None |
Specifications
| Power Consumption | 0.7 W |
