ICPDAS PCI-1002LU
Levertijd:
2~7 dagen
SKU
PCI-1002LU

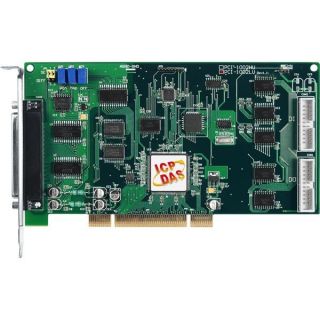

Universal PCI, 32-channel, 12-bit, 110 kS/s Low Gain Multi-function Board
● Universal PCI card, supports both 5 V and 3.3 V PCI bus
● 12-bit resolution, 100 kS/s high-speed AD converter
● 32 single-ended/ 16 differential inputs
● The max. sampling rate is low-gain 110 kS/s
● 16 digital input / 16 digital output channels
● Programmable low gain: 1, 2, 4, 8
● Internal / external trigger
● Half size board
● Digital input port can be set to pull-high or pull-low
SOFTWARE FEATURES:
● DOS Lib and TC/BC/MSC sample program (with source codes)
● DLL and OCX SDK for Windows 95/98/NT/2K
● DLL and OCX SDK for 32-bit Windows XP/2003/Vista and 32-bit Windows 7
● VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included
● LabVIEW toolkit for Windows
● Driver for Linux
The PCI-1002LU/HU universal PCI card supports 3.3 V/5 V PCI bus and is the new generation product that ICP DAS provides to meet RoHS compliance. The new PCI-1002LU/HU (universal PCI) are totally compatible with the PCI-1002L/H (PCI), and users can replace the PCI-1002L/H directly by the PCI-1002LU/HU without software/driver modification.
The PCI-1002 series is a family of A/D board and features low-gain 110 kS/s or high-gain 44 kS/s analog input. It provides 12-bit 32 single-ended or 16 differential analog inputs, 16 digital input and 16 digital output channels.
The PCI-1002 series supports various OS such as Linux, DOS, Windows 98/NT/2000 and 32-bit Windows XP/2003/Vista/7. It also provides the DLL and Active X control, and various language sample programs in Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW to help users to quickly and easily develop their applications.
APPLICATIONS:
● Laboratory Automation
● Production Test
● Sensor Interface
Meer informatie
Art.nr.
PCI-1002LU
Fabrikant
ICPDAS
Analog Input
| Channels | 32 single-ended/16 differential |
| A/D Converter | 12-bit, 8 μs Conversion time |
| Sampling Rate | 110 kS/s. max. |
| FIFO Size | N/A |
| Overvoltage Protection | Continuous ±35 Vp-p |
| Input Impedance | 10 MΩ/6 pF |
| Trigger Modes | Software, Internal programmable pacer, External (5 V/TTL compatible) |
| Data Transfer | Polling, Interrupt |
| Accuracy | 0.01 % of FSR ±1 LSB @ 25 °C, ±10 V |
| Zero Drift | ±4 ppm/°C of FSR |
Digital Input
| Channels | 16 | ||
| Compatibility | 5 V/TTL | ||
| Input Voltage |
|
||
| Response Speed | 1.0 MHz (Typical) |
Digital Output
| Channels | 16 | ||
| Compatibility | 5 V/TTL | ||
| Output Voltage |
|
||
| Output Capability |
|
||
| Response Speed | 1.0 MHz (Typical) |
Timer/Counter
| Channels | 3 (Independent, Internal pacer, External pacer) |
| Resolution | 16-bit |
| Compatibility | 5 V/TTL |
| Input Frequency | 10 MHz max. |
| Reference Clock | Internal: 4 MHz |
Algemeen
| Bus Type | 3.3 V/5 V Universal PCI, 32-bit | ||
| Data Bus | 16-bit | ||
| Card ID | No | ||
| I/O Connector |
|
||
| Dimensions (l x w x d) | 188 x 105 x 22mm | ||
| Power Consumption | 960 mA @ +5 V | ||
| Operating Temperature | 0 °C ~ 60 °C | ||
| Storage Temperature | -20 °C ~ 70 °C | ||
| Humidity | 5 ~ 85% RH, non-condensing |
Analog Input Range
| Gain | 1 | 10 | 100 | 1000 |
| Bipolar | ±10 | ±1 | ±0.1 | ±0.01 |
| Sampling Rate Max. | 44 kS/s. | 36 kS/s. | 7 kS/s. | 0.8 kS/s. |
