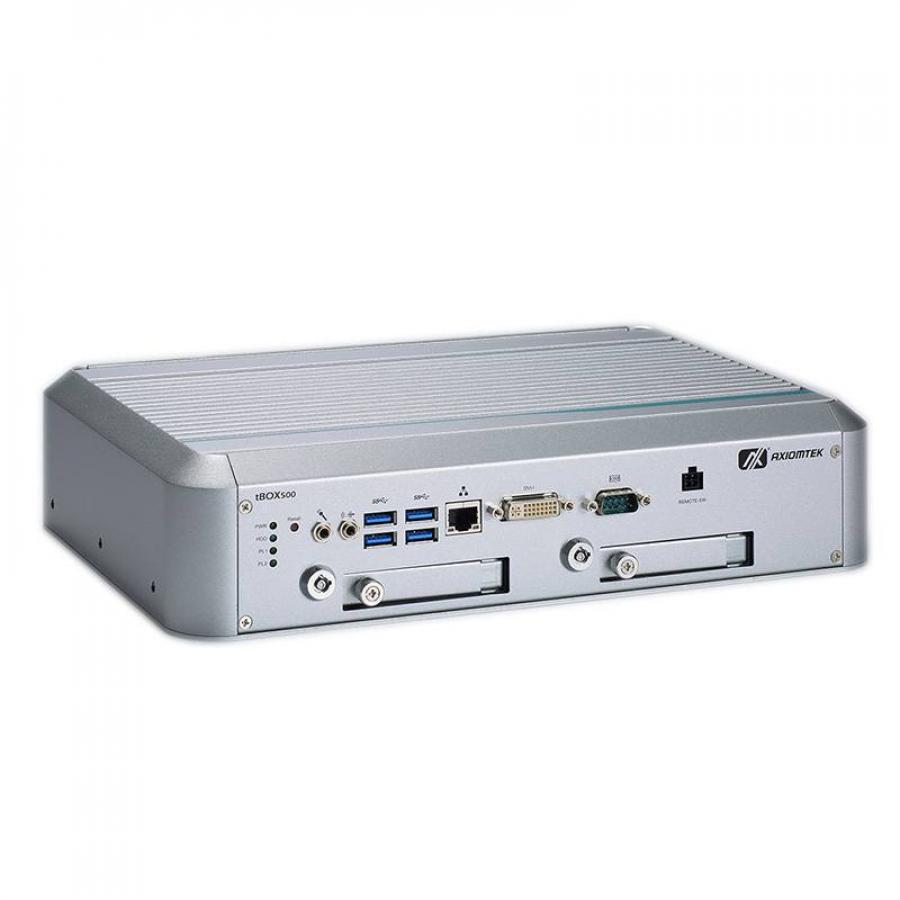

Axiomtek's Modular Transportation Embedded PC with E-Mark, ISO 7637-2, EN 50155, EN 50121, DNV 2.4, EN 45545-2 and IEC 60945 Certificates - tBOX500-510-FL

The tBOX500-510-FL supports a wide temperature range from -40°C to +70°C and anti-vibration of up to 5 Grms. The fanless embedded box PC equipped with intelligent power management offers ACC on/off delay, shutdown delay and over/under voltage protection. It supports a wide voltage input range: 9V to 36V DC for vehicle applications, 14V to 32V DC for railway & marine applications, and 16.8V to 137.5V DC for railway applications. For system integrators with extensive storage needs, the box computer offers two 2.5” SATA HDDs and one mSATA. The new transportation embedded system is well suited for transportation-related applications such as security surveillance, onboard devices controller, truck fleet management, data transfer, and onboard passenger infotainment system.

“Axiomtek’s tBOX500-510-FL is a communication-rich platform. It offers nine different kinds of VAMs for selection, making it an extremely flexible system that can be used in a wide range of applications. The user can choose the value-added module to customize the system to fit their needs. With PoE module, the customer can connect IP camera directly without installing an extra PoE switch and further save overall cost. Each port supports maximum 30W PoE (IEEE 802.3at) output, the total power budget is 120W. Also, with external PoE power supply, the embedded PC can support 8-port PoE outputs while operating under extreme environments. Thanks to its compact size, the transportation embedded computer can be easily fit into the traffic control cabinet. The unit comes with three full-sized PCI Express Mini Card slots and two SIM card slots for 3G/4G, GPS, Wi-Fi, and Bluetooth connections. Above features makes the tBOX500-510-FL a perfect match for every customer’s needs,” said Jessica Tseng, a product manager of Product PM Division at Axiomtek.

The all-in-one tBOX500-510-FL features multiple I/O design including one GbE LAN, four USB 3.0 ports, one COM port, one DVI-I port, two audio ports, one power input (M12 or phoenix connector), one PoE power input, four antenna openings, one remote power switch, and one reset button. To fulfill various applications in one single system, the solution-ready computer has a wide range of VAM (value-added modules) options, such as 4-port PoE module, 4-port GbE LAN module, 4-port isolated RS-232/422/485 module, isolated DIO (8-in/8-out) module, 4-port isolated CANbus 2.0A/B module, 5-port BNC (4-port video-in &1-port audio-in) module, etc. With VAM design, even custom I/O module can be done within a short period of time and achieve real cost savings with minor equipment adjustments.

Main Features:
EN 50155, EN 50121, E-Mark, ISO 7637, DNV 2.4, EN 45545-2 and IEC 60945 certified
● 7th gen Intel® Core™ i7/i5/i3 processors & Celeron® processors (Codename: Kaby Lake)
● 2 optional I/O module slots
● 9 VAM (value-added module) are available
● 2 DDR4-2133 SO-DIMM, up to 32GB
● Typical 12/24/24-110VDC power input for different power modules
● Fanless design and wide operating temperatures from -40°C to +70°C
● Intelligent solution of vehicle power management
● Two 2.5” SATA drives
● 3 full-size PCIe Mini Card slots and 2 SIM card sockets
