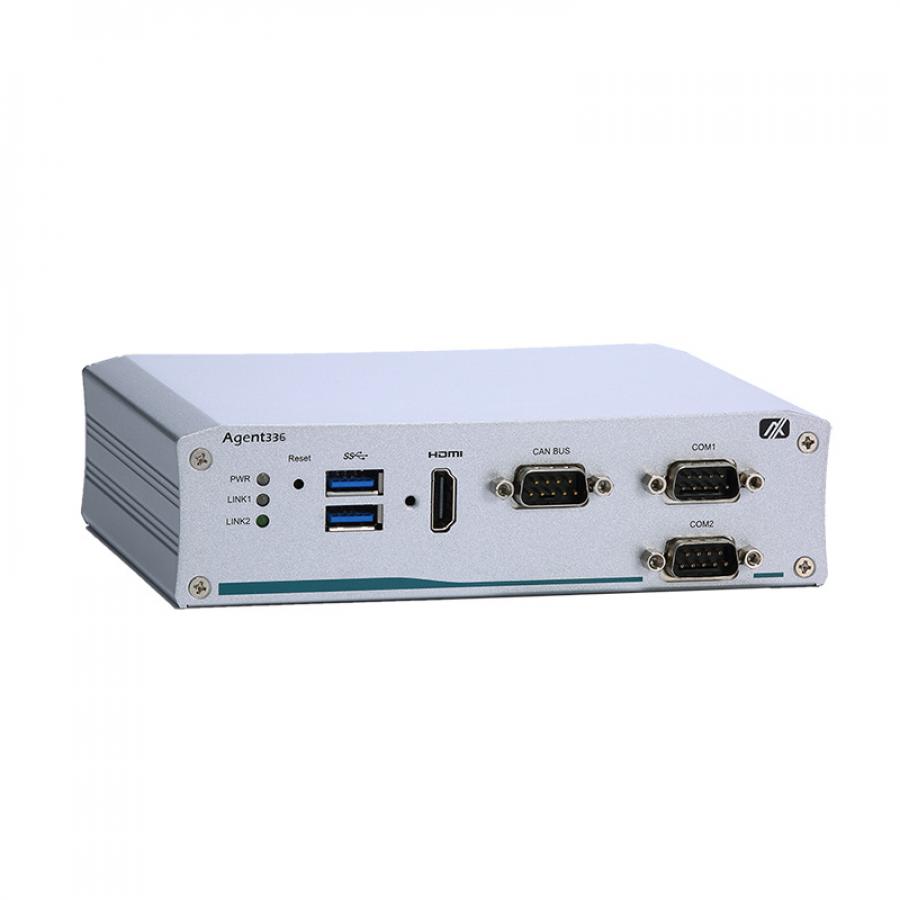

Axiomtek leverages its global expertise to provide complete product solutions for transportation applications. Our first-class transportation embedded box computers are easy to install and offer superior performance and reliability to thrive in harsh environments. Concerning the reliability and durability, the Agent336 comes with intelligent power management for ACC on/off delay, shutdown delay and over/under voltage protection. It runs on Linux (Yocto) and Android 8.1 operating systems. This IP40-rated RISC-based embedded gateway with strict certification is definitely the top choice for in-vehicle solutions, such as devices controller, fleet management, surveillance, and gateway.
“The Agent336 is an all-in-one, extremely small embedded box PC targeted at in-vehicle fields. It featuring tracking, monitoring and displaying functions in one system is well-suited for cold chain logistics and infotainment system, offering instant status reports, vehicle predictive maintenance and real-time vehicle dispatching and routing,” said Gordon Cho, a product manager of Embedded PM Division at Axiomtek. “This low power embedded platform features rich I/O interfaces with isolation protection to provide reliable system operation. For fleet management applications, the Agent336 offers flexible communication modules for 3G/4G, GPS and Wi-Fi connections. Moreover, when connecting to an LCD panel via HDMI, drivers can get visual information in time.”

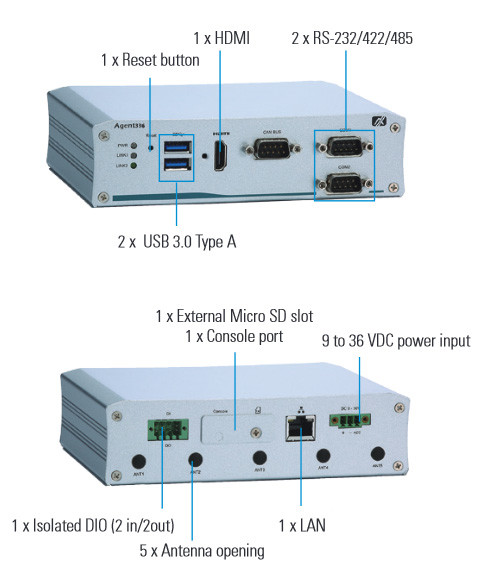

The newest RISC-based Agent336 supports two RS-232/422/485 ports, one isolated DIO, one HDMI port, two USB 3.0 A-type ports, one console port, one Gigabit LAN port, one RTC battery, one reset button, and five antenna openings. One onboard 8GB eMMC and one Micro SD card socket are available for extensive storage needs. Additionally, the rugged embedded computer has high integration ability with two full-size PCI Express Mini Card slots and one SIM card, which makes it a professional embedded system for transportation applications.
RISC-based module (i.MX 8M) processor
3GB LPDDR4 memory onboard
8GB eMMC onboard
9 to 36 VDC wide range power input with terminal block
Ready-to-run embedded Linux/Android operating system
Wide operating temperature range from -40°C to +70°C
Intelligent solution of vehicle power management (ACC ignition)
