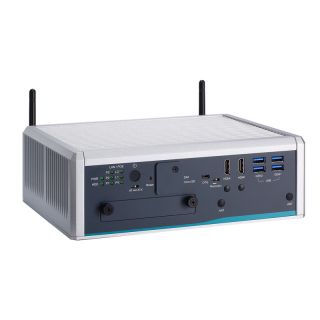

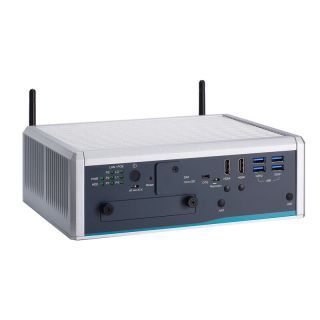

Fanless Edge AI System with NVIDIA® Jetson AGX Xavier™ SoM

The AIE900-902-FL has a ruggedized design for harsh environments, allowing it to operate under a wide temperature range from -30°C to +50°C and vibration of up to 3 Grms. Under the ultra-compact enclosure design, the AIE900-902-FL comes with a 32GB 256-Bit LPDDR4x onboard and has one M.2 Key M 2280 SSD slot with a PCIe x4 NVMe interface, one Micro SD slot and one 2.5” SSD/HDD drive bay for massive data processing and AI applications. This reliable embedded system has one full-size PCI Express Mini Card slot (USB + PCI Express signal), one M.2 Key E 2230 slot and one SIM slot for 3G/4G, GPS, Wi-Fi and Bluetooth connections. To reduce the effort and shorten the deployment process, the NVIDIA® JetPack has been pre-installed on the edge AI system for quick development. Moreover, the AIE900-902-FL is certified with CE and FCC Class A.

The AIE900-902-FL offers multiple I/O options including two lockable HDMI 2.0 ports with 4k2k supported, two 10/100/1000 Mbps Ethernet (Intel® i210-IT), four 10/100/1000 Mbps PoE (Intel® i210-IT), two USB 3.1 Gen2 ports, two USB 3.1 Gen1 ports, two USB 2.0 ports, one Micro USB port, one 8-CH DIO, two RS-232 default (or 2 x CAN by jumper settings) and four SMA-type antenna openings. There are eight LED indicators showing for power/storage/LAN/PoE active status alert. Also included are one recovery switch and one 24 VDC power input connector.
