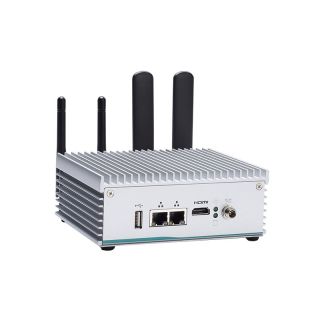

Industrial Fanless Edge System - eBOX560-900-FL
Fanless Edge System with NVIDIA® JETSON™ TX2, 1 HDMI 2.0, 2 GbE LANs and 1 USB 2.0
● NVIDIA® JETSON™ TX2 w/ Pascal™, 256 CUDA cores GPU
● High AI computing performance for GPU-accelerated processing
● Ideal for intelligent edge applications
● Compact size w/ NVMe supported
● JetPack support
Axiomtek's eBOX560-900-FL is a high performance AI embedded system based on the high-efficiency, low-power NVIDIA Jetson™ TX2 module, offering diverse features in a palm-size box.
It also supports NVIDIA JetPack 3.2 SDK including TensorRT, cuDNN, CUDA Toolkit, VisionWorks, GStreamer, and OpenCV, all built on top of L4T with LTS Linux kernel.
The extremely compact system is your superb choices for AI, deep learning, and edge computing.
Its tough construction is IP40-rated, and it has an extended operating temperature range of -10°C to 50°C and up to 3G vibration endurance.
To meet a variety of Artificial Intelligence solution-ready system requirements, the AI embedded computer has one USB 2.0 port, two Gigabit Ethernet ports, one HDMI 2.0 port and four SMA type antenna connectors.
This fanless embedded system has a 32GB eMMC onboard; moreover, it is equipped with a M.2 SSD PCIe 2.0 x4 socket for extensive storage option. This outstanding embedded PC also features a PCI Express Mini Card slot for 3G/4G/LTE/GPRS, Wi-Fi and Bluetooth connections. Its flexible mounting options include wall mount and DIN-rail mount. Furthermore, Axiomtek's eBOX560-900-FL has passed the strict certification with CE and FCC Class A.
CPU: HMP Dual Denver 2/2 MB L2 + Quad ARM® A57/2 MB L2
GPU: NVIDIA® Pascal™, 256 CUDA cores
4 x Antenna opening
2 x 10/100/1000 Mbps Ethernet (NVIDIA® + Intel® I210-IT)
1 x HDMI 2.0 w/ 4K2K supported
1 x DC power input (screw type)
*Either mini PCIe connector or LAN Intel® I210-IT (Jumper Select)
1 x M.2 2280 M-Key with PCIe 2.0 x4 for NVMe SSD (optional)
1 x yellow LED for HDD active
