ICPDAS DN-843V-600

Levertijd:
2~7 dagen
SKU
DN-843V-600

3-channel 600 V Voltage Attenuator

● AC/DC Source Input
● High Voltage Input Measurement
● Linear Attenuation Ratio
● High Input Impedance
● Channel to Channel Isolation for DN-848VI-10V,
● DN-848VI-80V, DN-848VI-150V and DN-843VI-600V
● Channel to Channel Isolation for DN-848VI-10V,
● DN-848VI-80V and DN-848VI-150V
● 4 kV ESD Protection
● 3 kV Surge Protection
● RoHS Compliance
● Operating Temperature: -25 °C ~ +75 °C
● Easily wire connection

DN-843V is a series of voltage input attenuator for high voltages. The voltage input range is ±600 V (DN-843V-600 and DN-843VI-600), ±150 V (DN-843VI-150 ) and ±80 V (DN-843VI-80).  The voltage type can be continuous or alternative, and each input channel is attenuated to ±10 V

Hence, DN-843V allows the measurement  of high voltages with standard analog input modules such as I-7017R or ET-7017 for monitoring or recording high voltages in automation applications.

The DN-843V modules are fully ROHS standard compliant, and offer an industrial design with 3kV ESD protection, DIN-Rail installation and an extended operating range [-25°C-75°C]. Excepted for DN-843V-600, each voltage attenuator module integrates a 3kV isolation voltage for higher robustness as well

Meer informatie
Art.nr.
DN-843V-600
Fabrikant
ICPDAS
EMS Protection
ESD (IEC 61000-4-2)
+/- 4 kV contact for power line, input and output channels , +/- 8 kV air for random point
Surge (IEC 61000-4-5) +/- 3 kV for power liner
Power
Input Range +10 ~ +24 VDC
Power Consumption DN-843VI-600V: 3.84 W
DN-843V-600V: 0.56 W
Mechanical
Dimensions (W x L x H)
122 mm x 174 mm x 24.5 mm
Installation
DIN-Rail Mounting
Omgeving
Operating Temperature -25 °C ~ 75 °C
Storage Temperature -30 °C ~ 75 °C
Humidity 5 ~ 95% RH, Non-condensing
Configureren
Aantal

* Verplichte velden

Uw configuratie

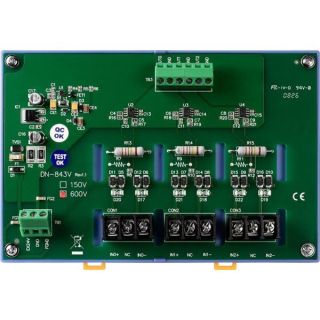

Non-isolation 3-channel Voltage Input Attenuator
ICPDAS DN-843V-600
