I-8K series I/O Modules

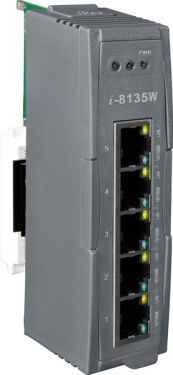

5-port 10/100 Mbps Fast Ethernet Switch Module

● 5-port RJ-45 Ethernet Switch
● Each port supports both 10/100 Mbps speed auto negotiation
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● Automatic MDI/MDI-X crossover for plug-and-play
● 3.2 Gbps high performance memory bandwidth
● 512 Kbit frame buffer memory

8-channel Analog Input Module

● 14-bit 100 KHz AD Converter
● Internal or External Trigger

8-channel Analog Input Module

● 14-bit 100 KHz AD Converter
● Internal or External Trigger

2-axis Stepping/Servo Motor Control Card

● Parallel I/O Module
● 2-axis independent, simultaneous stepping motor control/servo motor control (pulse input type)
● Maximum pulse rate: 1 Mpps
● Maximum step counts: 2³² -1 steps
● DOS driver
● Embedded CPU
● Command type interface
● 2-axis linear, 2-axis circular interpolation
● Automatic trapezoidal acceleration/deceleration
● Output pulse modes: CW/CCW or pulse/direction

High Speed 4-axis Motion Control Module with CPU inside

● Independent 4-axis motion control
● Support for hand wheel and jog functions
● 2/3-axis linear interpolation function
● 2-axis circular interpolation function
● Continuous interpolation function
● Programmable T/S-curve acceleration and deceleration
● A maximum of 4 Mpps pulse output rate for each axis
● Pulse output types: CW/CCW or Pulse/Direction
● 32-bit encoder counter for each axis
● Encoder pulse input types: A/B phase or Up/Down

High Speed 4-axis Motion Control Module with CPU inside

● Independent 4-axis motion control
● Support for hand wheel and jog functions
● 2/3-axis linear interpolation function
● 2-axis circular interpolation function
● Continuous interpolation function
● Programmable T/S-curve acceleration and deceleration
● A maximum of 4 Mpps pulse output rate for each axis
● Pulse output types: CW/CCW or Pulse/Direction
● 32-bit encoder counter for each axis
● Encoder pulse input types: A/B phase or Up/Down

High Speed 4-axis Motion Control Module

● Independent 4-axis motion control
● Support for hand wheel and jog functions
● 2/3-axis linear interpolation function
● 2-axis circular interpolation function
● Continuous interpolation function
● Programmable T/S-curve acceleration and deceleration
● A maximum of 4M pps pulse output rate for each axis
● Pulse output types: CW/CCW or Pulse/Direction
● 32-bit encoder counter for each axis
● Encoder pulse input types: A/B phase or Up/Down

High Speed 4-axis Motion Control Module

● Independent 4-axis motion control
● Support for hand wheel and jog functions
● 2/3-axis linear interpolation function
● 2-axis circular interpolation function
● Continuous interpolation function
● Programmable T/S-curve acceleration and deceleration
● A maximum of 4 Mpps pulse output rate for each axis
● Pulse output types: CW/CCW or Pulse/Direction
● 32-bit encoder counter for each axis
● Encoder pulse input types: A/B phase or Up/Down

3-axis Encoder Module

● 3-axis encoder inputs
● 1 MHz input rate for quadrant input mode
● 4 MHz input rate for pulse/direction and CW/CCW input modes
● 32-bit count range
● 2500 Vrms Optical isolation

High Speed 2-axis Motion Control Module

● Independent 2-axis motion control
● Support for hand wheel and jog functions
● 2-axis linear interpolation function
● 2-axis circular interpolation function
● Continuous interpolation function
● Programmable T/S-curve acceleration and eceleration
● A maximum of 4 Mpps pulse output rate for each axis
● Pulse output types: CW/CCW or Pulse/Direction
● 32-bit encoder counter for each axis
● Encoder pulse input types: A/B phase or Up/Down
