Power Relay Output

1-channel Analog Output, 1-channel Digital Input and 1-channel Relay Output Module

● 1 Analog Output Channel
● 1 Digital Input Channel
● 1 Relay Output Channel
● Dual Watchdog
● Configurable Power-on Value Settings
● Configurable Safe Value Settings
● 4 kV ESD Protection
● 3 kV Intra-module Isolation
● Wide Operating Temperature Range: -25 ~ +75°C
● RoHS Compliant

4-channel Isolated Digital Input and 4-channel Relay Output Module with LED Display

● 4 Digital Inputs and 4 Relay Outputs
● Both Form A and Form C Power Relay
● Source and Sink type for DI
● DI Channels can be used as 16-bit counters
● Configurable Power-on value settings
● Configurable Safe value settings
● Dual Watchdog
● Operating Temperature Range: -25 °C ~ +75 °C

4-channel Isolated Digital Input and 4-channel Relay Output Module

● 4 Digital Inputs and 4 Relay Outputs
● Both Form A and Form C Power Relay
● Source and Sink type for DI
● DI Channels can be used as 16-bit counters
● Configurable Power-on value settings
● Configurable Safe value settings
● Dual Watchdog
● Operating Temperature Range: -25 °C ~ +75 °C

8-channel 10 ~ 80 VAC Isolated Digital Input Module with 16-bit Counters

● Support Relay Outputs
● 4 kV ESD Protection
● 3750 Vrms Intra-Module Isolation
● Operating Temperature Range: -25 °C ~ 75 °C

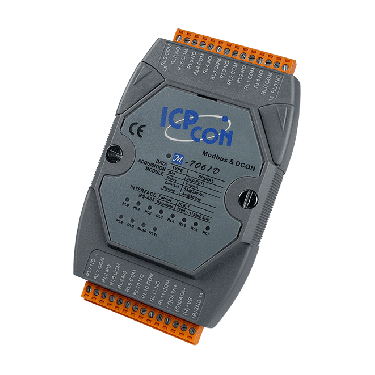

12-channel Relay Output Module with LED Display

● Support Relay Outputs
● 4 kV ESD Protection
● 3750 Vrms Intra-Module Isolation
● Operating Temperature Range: -25 °C ~ 75 °C

12-channel Relay Output Module

● Support Relay Outputs
● 4 kV ESD Protection
● 3750 Vrms Intra-Module Isolation
● Operating Temperature Range: -25 °C ~ +75 °C

8-channel Relay Output Module

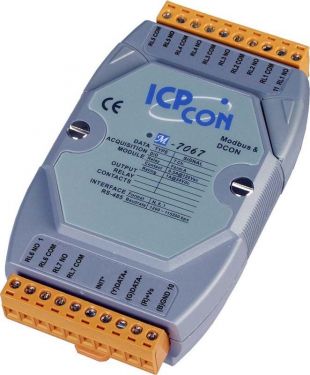

7-channel Relay Output Module with LED Display

● Relay output: 7 Form A
● Contact rating:
   AC: 120 V @ 0.5 A
   DC: 24 V @ 2 A

7-channel Relay Output Module

● Relay output: 7 Form A
● Contact rating:
   AC: 120 V @ 0.5 A
   DC: 24 V @ 2 A

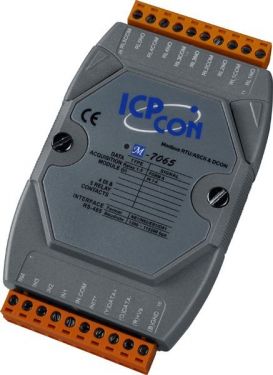

4-channel Isolated Digital Input and 5-channel Relay Output Module with 16-bit Counters and LED Display (Gray Cover)

● Input: 4 single-ended
   ON: Voltage Level: 4 V ~  30 V
   OFF Voltage Level: 0 V ~ 1 V
● Input resistance: 3 kΩ
● Output: 5 Form A power relay
● Contact rating:
   5 [email protected] VAC / 5 [email protected] VDC

4-channel Isolated Digital Input and 5-channel Relay Output Module with 16-bit Counters (Gray Cover)

● Input: 4 single-ended
   ON: Voltage Level: 4 V ~ 30 V
   OFF Voltage Level: 0 ~ 1 V
● Input resistance: 3 kΩ
● Output: 5 Form A power relay
● Contact rating:
   [email protected] VAC / [email protected] VDC

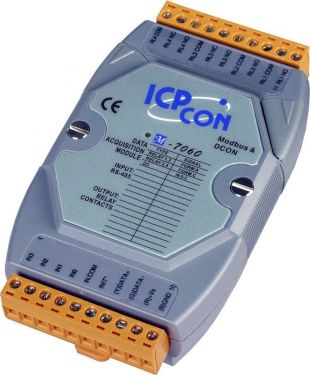

4-channel Isolated Digital Input and 4-channel Relay Output Module with 16-bit Counters and LED Display (Gray Cover)

● Input: 4 single-ended
   ON Voltage Level: 4 V ~ 30 V
   OFF Voltage Level: 0 ~ 1 V
● Isolation voltage: 3750 Vrms
● Input resistance: 3 kΩ, 0.25 W
● Output: 4-channel relay

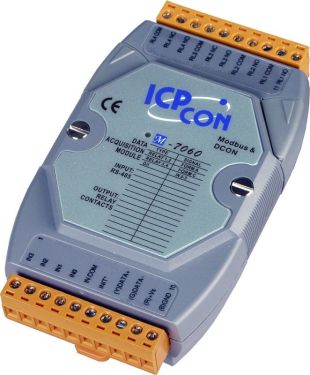

4-channel Isolated Digital Input and 4-channel Relay Output Module with 16-bit Counters (Gray Cover)

● Input: 4 single-ended
   ON Voltage Level: 4 V ~ 30 V
   OFF Voltage Level: 0 ~ 1 V
● Isolation voltage: 3750 Vrms
● Input resistance: 3 kΩ, 0.25 W
● Output: 4-channel relay

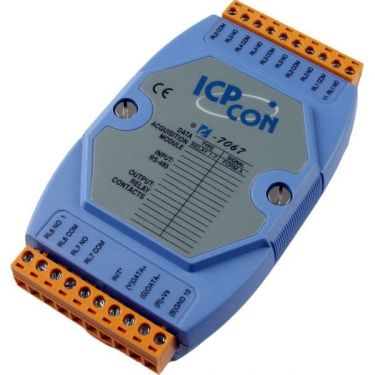

7-channel Relay Output Module with LED Display

● Relay output: 7 Form A
● Contact rating: AC: 125 V @ 0.5 A
● DC: 24 V @ 2 A
● Dual Watchdog

7-channel Relay Output Module

● Relay output: 7 Form A
● Contact rating: AC: 125 V @ 0.5 A
● DC: 24 V @ 2 A
● Dual Watchdog

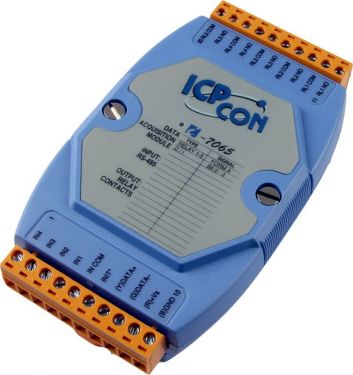

4-channel Isolated Digital Input and 5-channel Relay Output Module with 16-bit Counters and LED Display

● Input: 4 single-ended
   ON: Voltage Level: 4 V ~ 30 V
   OFF Voltage Level: 0 V ~ 1 V
● Input resistance: 3 kΩ
● Output: 5 Form A power relay
● Contact rating:
   5 [email protected] VAC / 5 [email protected] VDC
● Dual Watchdog

4-channel Isolated Digital Input and 5-channel Relay Output Module with 16-bit Counters

● Input: 4 single-ended
   ON: Voltage Level: 4 V ~ 30 V
   OFF Voltage Level: 0 V ~ 1 V
● Input resistance: 3 kΩ
● Output: 5 Form A power relay
● Contact rating:
   5 [email protected] VAC / 5 [email protected] VDC
● Dual Watchdog

8-channel Isolated Digital Input and 3-channel Relay Output Module with 16-bit Counters and LED Display

● Input: 8 single-ended
   ON: Voltage Level: 4 V ~ 30 V
   OFF Voltage Level: 0 V ~ 1 V
● Input resistance: 3 kΩ
● Isolation Voltage: 3750 Vrms
● Output: 3 Form A power relay
● Contact rating:
   5 [email protected] VAC / 5 [email protected] VDC
● Dual Watchdog
