Relay Modules
ICPDAS relay modules zijn apparaten die worden gebruikt in industriële automatiseringssystemen om relaisuitgangen te bieden voor het schakelen van elektrische apparaten, zoals motoren, pompen, kleppen en verlichting. Deze modules zijn ontworpen om digitale signalen om te zetten in relaisuitgangen, waardoor ze geschikt zijn voor diverse toepassingen waarbij het nodig is om elektrische circuits te schakelen.
Relaismodules kunnen worden gebruikt voor zowel aan/uit-besturing als voor het schakelen van elektrische stromen met verschillende spanningen en stromen, afhankelijk van de specificaties van de module. Ze kunnen worden gebruikt om apparaten in te schakelen of uit te schakelen op basis van externe signalen van sensoren, schakelaars, of een PLC (Programmable Logic Controller).
ICPDAS relay modules zijn vaak voorzien van isolatie en storingsbescherming om betrouwbare werking te garanderen, zelfs in veeleisende industriële omgevingen waar elektrische ruis of spanningspieken kunnen optreden. Deze modules zijn ontworpen om te voldoen aan industriële normen en bieden robuuste prestaties voor kritische toepassingen waar betrouwbaarheid van essentieel belang is.
ICPDAS tM-DA1P1R11-channel Analog Output, 1-channel Digital Input and 1-channel Relay Output Module
● 1 Analog Output Channel
● 1 Digital Input Channel
● 1 Relay Output Channel
● Dual Watchdog
● Configurable Power-on Value Settings
● Configurable Safe Value Settings
● 4 kV ESD Protection
● 3 kV Intra-module Isolation
● Wide Operating Temperature Range: -25 ~ +75°C
● RoHS Compliant
ICPDAS I-87069PW8-channel PhotoMOS Relay Output Module
● Support 8 PhotoMos Relay Outputs
● 4 kV ESD Protection
● No Arcing, No Bounce, and No Switching Noise
● Photocouple Isolation
● Embedded Dual Watchdog
● Configurable Power-on Value Settings and Safe Value Settings
● Wide Operating Temperature Range: -25 ~ +75°C
ICPDAS M-7060PD4-channel Isolated Digital Input and 4-channel Relay Output Module with LED Display
● 4 Digital Inputs and 4 Relay Outputs
● Both Form A and Form C Power Relay
● Source and Sink type for DI
● DI Channels can be used as 16-bit counters
● Configurable Power-on value settings
● Configurable Safe value settings
● Dual Watchdog
● Operating Temperature Range: -25 °C ~ +75 °C
ICPDAS M-7060P4-channel Isolated Digital Input and 4-channel Relay Output Module
● 4 Digital Inputs and 4 Relay Outputs
● Both Form A and Form C Power Relay
● Source and Sink type for DI
● DI Channels can be used as 16-bit counters
● Configurable Power-on value settings
● Configurable Safe value settings
● Dual Watchdog
● Operating Temperature Range: -25 °C ~ +75 °C
ICPDAS I-87061W8-channel 10 ~ 80 VAC Isolated Digital Input Module with 16-bit Counters
● Support Relay Outputs
● 4 kV ESD Protection
● 3750 Vrms Intra-Module Isolation
● Operating Temperature Range: -25 °C ~ 75 °C

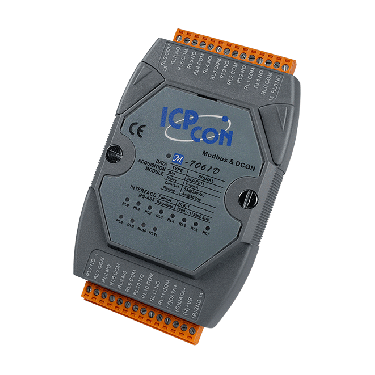

ICPDAS - 12-ch Power Relay Module with LED Display - M-7061D-G12-channel Relay Output Module with LED Display
● Support Relay Outputs
● 4 kV ESD Protection
● 3750 Vrms Intra-Module Isolation
● Operating Temperature Range: -25 °C ~ 75 °C

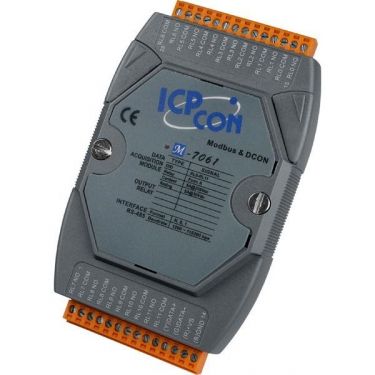

ICPDAS M-706112-channel Relay Output Module
● Support Relay Outputs
● 4 kV ESD Protection
● 3750 Vrms Intra-Module Isolation
● Operating Temperature Range: -25 °C ~ +75 °C
ICPDAS RM-20.222 Poles, 16 A Step relays for direct 35 mm Rail (EN 50022) mounting
● Double phase switch
● 35 mm rail (EN 50022) mount
● 17.4mm wide
● Test button with mechanical indicators
ICPDAS RM-48.62Relay Interface Modules
● Relay interface modules for use with I-7000 remote I/O modules
● 15.5 mm wide, 2 pole (48.62) and 35 mm rail (EN 50022) mounting
● Supplied with integral coil indication and protection circuit
● Instant removal of relay using plastic retaining clip
ICPDAS RM-48.61Relay Interface Modules
● Relay interface modules for use with I-7000 remote I/O modules
● 15.5 mm wide, 1 pole ( 48.61), and 35 mm rail ( EN 50022) mounting
ICPDAS RM-38.61Relay Interface Modules
● Relay interface modules for use with I-7000 remote I/O modules
● 6.2 mm wide, 1 pole and 35 mm rail ( EN 50022) mounting
● Supplied with integral coil indication and protection circuit
● Instant removal of relay using plastic retaining clip
ICPDAS RM-22.222 Poles, 20 A relay for direct 35 mm rail (EN 50022) mounting
● Double phase switch 2 NO (DPST-NO)
● 35 mm rail (EN 50022) mount
● 17.4mm wide
● Test button
ICPDAS RM-216 - 16-channel power relay module , 1 form C● Rate current for each relay: 8 A
● Two NC and two NO contacts for each channel
● Max. peak current: 14 A
● Standard contact material: AgCdO
● Input Voltage: DC 24 V
● The coil current is 22 mA
● Can be used to sink type of digitial output module only
● Rated voltage for each relay: 250 VAC
ICPDAS RM-2088-channel DIN-Rail mounting power relay module, 2 form C
● Rate current for each relay: 8 A
● Two NC and two NO contacts for each channel
● Max. peak current: 14 A
● Standard contact material: AgCdO
● Input Voltage: DC 24 V
● The coil current is 22 mA
● Can be used to sink type of digitial output module only
● Rated voltage for each relay: 250 VAC
ICPDAS RM-2044-channel DIN-Rail mounting power relay module, 2 form C
● Rate current for each relay: 8 A
● Two NC and two NO contacts for each channel
● Max. peak current: 14 A
● Standard contact material: AgCdO
● Input Voltage: DC 24 V
● The coil current is 22 mA
● Can be used to sink type of digitial output module only
● Rated voltage for each relay: 250 VAC
ICPDAS M-7067D7-channel Relay Output Module with LED Display
● Relay output: 7 Form A
● Contact rating:
AC: 120 V @ 0.5 A
DC: 24 V @ 2 A
