DC Digital Input and Output
- ICPDAS tM-P3POR3
3-channel Isolated Digital Input and 3-channel PhotoMOS Relay Output Module
● PhotoMOS Relay Outputs
● Source- or Sink-Type Digital Inputs
● Photocouple Isolation
● All DI channels can be used as 16-bit counters
● Dual Watchdog
● Configurable Power-on Value Settings
● Configurable Safe Value Settings
● Wide Operating Temperature Range: -25 °C ~ +75 °C - I-7570 - Serial to HART Converter
Serial to HART Converter
● Support HART Short/Long frame
● Allow two HART masters
● Working in point-to-point or multi-drop HART mode
● Connecting up to 15 HART modules
● Provide utility tool for module configuration
● Isolated COM 1: RS-232/422/485
● Provide PWR / RUN / ERR indication LED
● Built-in Watchdog
● 4 kV ESD Protection - I-7567 - USB To HART Converter
USB To HART Converter
● Support HART Short/Long frame
● Allow two HART masters
● Working in point-to-point or multi-drop HART mode
● Connecting up to 15 HART modules
● Provide utility tool for module configuration
● No external power supply (powered by USB)
● Support firmware update via USB
● Provide PWR / Tx / Rx indication LED
● 4kV ESD Protection - ICPDAS tM-P3R3
3-channel Isolated Digital Input and 3-channel Relay Output Module
● Relay Outputs
● Source and Sink Type Digital Inputs
● Photocouple Isolation
● All channels can be used as 16-bit counters
● Dual Watchdog
● Configurable Power-on Value Settings
● Configurable Safe Value Settings
● Cost-effective
● Operating Temperature Range: -25 °C ~ +75 °C - 4-channel Isolation Digital Input and 4-channel Source Type Isolated Digital Output Module - tM-P4A4
4-channel Isolated Digital Input and 4-channel Source Type Isolated Digital Output Module
● Digital Outputs Source Type
● Digital Inputs Sink Type
● Photocouple Isolation
● All Channels Can Be Used As 16-bit Counters
● Dual Watchdog
● Configurable Power-on Value Settings
● Configurable Safe Value Settings
● Cost-effective
● Wide Operating Temperature Range: -25 °C ~ +75 °C - ICPDAS tM-P4C4
4-channel Isolated Digital Input and 4-channel Isolated Digital Output Module
● Sink Type Digital Outputs
● Source Type Digital Inputs
● Photocouple Isolation
● All Channels Can Be Used As 16-bit Counters
● Dual Watchdog
● Configurable Power-on Value Settings
● Configurable Safe Value Settings
● Cost-effective
● Operating Temperature Range: -25 °C ~ +75 °C - ICPDAS M-7055D-NPN
8-channel Isolated Digital Input and 8-channel Sink Type Isolated Digital Output Module with LED Display
● Digital Outputs for Sink Type
● Support Digital Inputs (Sink Type or Source Type)
● Photo Couple Isolation
● Can Be Used As Counters
● 4 kV ESD and EFT Protection
● 3 kV Surge Protection for Power Input
● Dual Watchdog
● Power On Value Setting
● Safe Value Setting
● Short Circuit Protection
● 3750 VDC Intra-Module Isolation
● Operating Temperatures Range: -25 °C ~ +75 °C - ICPDAS M-7055
8-channel Isolated Digital Input and 8-channel Isolated Digital Output Module with 16-bit Counters (Gray Cover)
● Digital Input Channels: 8
● Digital Input Status
Dry contact: ON Voltage Level: close to GND
OFF Voltage Level: open
● Wet contact: ON Voltage Level: +10 V ~ +50 V
OFF Voltage Level: +3 V max.
● Effective distance for dry contact: 500 m max.
● Digital Output channels: 8
● Open collector to 40 V, 650 mA max. load (Short Circuit Protection)
● Optical Isolation: 3750 Vrms - ICPDAS CAN-2054D
8-channel isolated sink/source digital input and 8-channel isolated open-collector digital output module
● DeviceNet general I/O slave devices
● Comply with DeviceNet specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata 5
● Group 2 Only Server (non UCMM-capable)
● Support Predefined Master/Slave Connection Set
● Connection supported (1 connection for Explicit Messaging, 1 connection for Polled I/O, 1 connection for Bit-Strobe I/O connection)
● Support DeviceNet heartbeat and shutdown messages
● Provide EDS file for DeviceNet master interface - ICPDAS I-87063W
4-channel Isolated Digital Input and 4-channel Relay Output Module with 16-bit Counters
- ICPDAS I-87055W
8-channel Non-Isolated Digital Input and 8-channel Non-Isolated Digital Output Module with 16-bit Counters

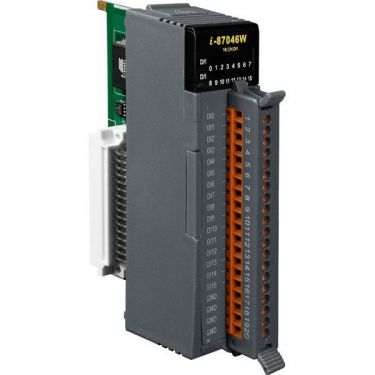

- ICPDAS I-87046W
16-channel Non-Isolated Digital Input Module for Long Distance Measurement with 16-bit Counters

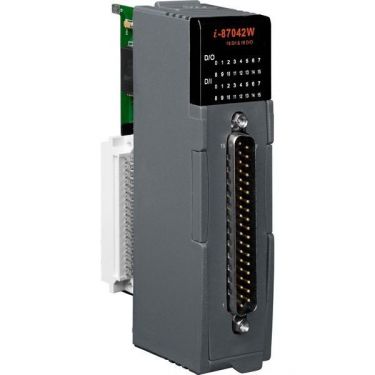

- ICPDAS I-87042W
16-channel Isolated Digital Input & 16-channel Isolated Digital Output Module
● Digital Input for Sink Type or Source Type
● Digital Outputs for Sink Type
● Power On Value Setting
● Safe Value Setting
● Short Circuit Protection
● Photo Couple Isolation
● 4KV ESD Protection
● 3750V DC Intra-module Isolation
● RoHS Compliance
● Operating Temperature Range : -25 °C ~ +75 °C - ICPDAS I-8042W
16-channel Isolated Digital Input & 16-channel Isolated Digital Output Module
- ICPDAS PROFI-5060
PROFIBUS Remote I/O Module (8-channel Isolated Digital Input and 4-channel Relay Output)
● Support for PROFIBUS DP-V0 protocol
● Detect transmission rate automatically (Max. 12Mbps)
● Address 0~99 set by rotary switches
● Network Isolation Protection
● 3000 VDC isolation protection on PROFIBUS side
● 4 kV ESD Protection (contact for any terminal)
● Wide range of power input (DC 10 ~ 40 VDC) and operating temperature (-25 °C ~ +75 °C)
