Digital Modules
ICPDAS digitale invoer-/uitvoermodules zijn apparaten die worden gebruikt in industriële automatiseringssystemen om digitale signalen te ontvangen en te verzenden. Deze modules kunnen worden gebruikt voor verschillende toepassingen, zoals het bewaken van statussen van machines, het aansturen van apparaten zoals motoren of kleppen, en het verzamelen van gegevens voor procesbewaking en -besturing.
Digitale invoermodules worden gebruikt om externe digitale signalen van apparaten of sensoren te ontvangen, zoals schakelaars, drukknoppen, of sensoren die digitale signalen genereren om de status van apparatuur of processen te detecteren. Deze modules kunnen bijvoorbeeld gebruikt worden om te controleren of een machine aan of uit staat, of om te detecteren wanneer een bepaalde gebeurtenis plaatsvindt.
Digitale uitvoermodules worden gebruikt om digitale signalen naar externe apparaten of actuatoren te sturen, zoals relais, kleppen, of motoren, om specifieke acties uit te voeren op basis van de ontvangen signalen. Deze modules kunnen bijvoorbeeld worden gebruikt om een motor aan te sturen om een machine in- of uit te schakelen, of om een klep te openen of te sluiten om de stroom van vloeistoffen of gassen te regelen.
ICPDAS digitale invoer-/uitvoermodules zijn vaak voorzien van isolatie en storingsbescherming om betrouwbare werking te garanderen, zelfs in veeleisende industriële omgevingen waar elektrische ruis of spanningspieken kunnen optreden. Deze functies helpen om de modules te beschermen tegen storingen en om de integriteit van de gegevens te behouden, waardoor de betrouwbaarheid en stabiliteit van het geautomatiseerde systeem worden verbeterd.

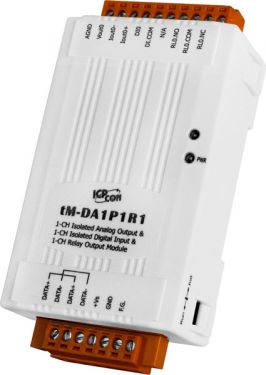

ICPDAS tM-DA1P1R11-channel Analog Output, 1-channel Digital Input and 1-channel Relay Output Module
● 1 Analog Output Channel
● 1 Digital Input Channel
● 1 Relay Output Channel
● Dual Watchdog
● Configurable Power-on Value Settings
● Configurable Safe Value Settings
● 4 kV ESD Protection
● 3 kV Intra-module Isolation
● Wide Operating Temperature Range: -25 ~ +75°C
● RoHS Compliant

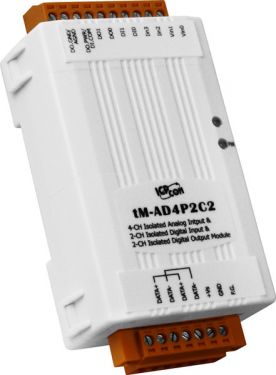

ICPdas tM-AD4P2C2 - 4-channel Analog Input, 2-channel Digital Input and 2-channel Digital Output Module4-channel Analog Input, 2-channel Digital Input and 2-channel Digital Output Module
● Multifunction (4 AI, 2 DI and 2 DO)
● 2 Voltage Input Channels and 2 Current Input Channels
● Digital Input Channels can be used as 16-bit Counters
● Digital Output Channels can be used as Voltage Input Limit Alarms
● 4 kV ESD and EFT Protection
● 120 VDC Overvoltage Protection
● Adjustable Sampling Rate
● Dual Watchdog
● 2500 VDC Intra-module Isolation
● Configurable Power-on Value Settings
● Configurable Safe Value Settings
● Wide Operating Temperature Range: -25 ~ +75°C
ICPDAS I-87053W-A216-channel 19-50 VDC Isolated Digital Input Module with 16-bit Counters

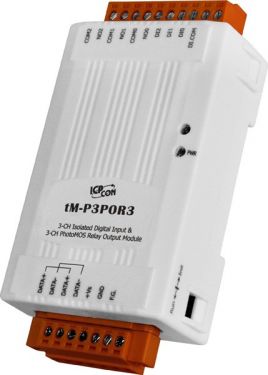

ICPDAS tM-P3POR33-channel Isolated Digital Input and 3-channel PhotoMOS Relay Output Module
● PhotoMOS Relay Outputs
● Source- or Sink-Type Digital Inputs
● Photocouple Isolation
● All DI channels can be used as 16-bit counters
● Dual Watchdog
● Configurable Power-on Value Settings
● Configurable Safe Value Settings
● Wide Operating Temperature Range: -25 °C ~ +75 °C

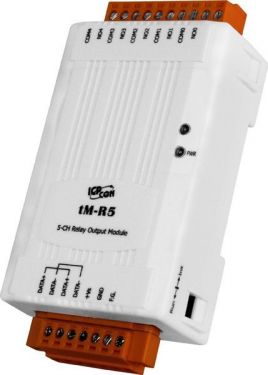

ICPDAS tM-R55-channel Relay Output Module
● Relay Outputs
● Dual Watchdog
● Configurable Power-on Value Settings
● Configurable Safe Value Settings
● Cost-effective
● Operating Temperature Range: -25 °C ~ +75 °C

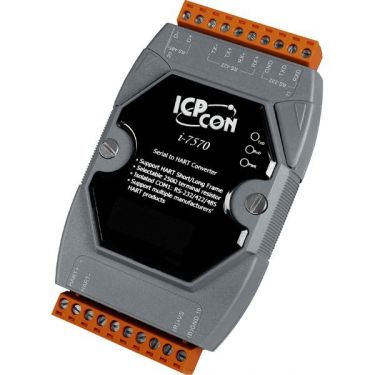

I-7570 - Serial to HART ConverterSerial to HART Converter
● Support HART Short/Long frame
● Allow two HART masters
● Working in point-to-point or multi-drop HART mode
● Connecting up to 15 HART modules
● Provide utility tool for module configuration
● Isolated COM 1: RS-232/422/485
● Provide PWR / RUN / ERR indication LED
● Built-in Watchdog
● 4 kV ESD Protection

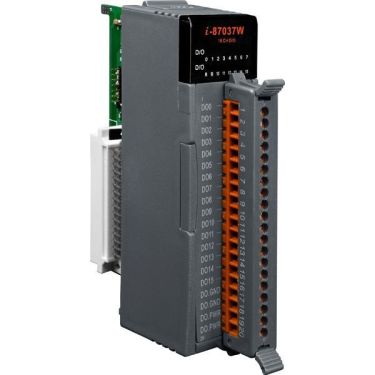

ICPDAS I-87037W16-channel source type Isolated Digital Output Module
● Source Type Digital Outputs
● Photo Couple Isolation
● 4 kV ESD Protection
● Dual Watchdog
● Power On Value Setting
● Safe Value Setting
● Short Circuit Protection
● 3750 VDC Intra-Module Isolation
● Operating Temperature Range: -25 °C ~ +75 °C

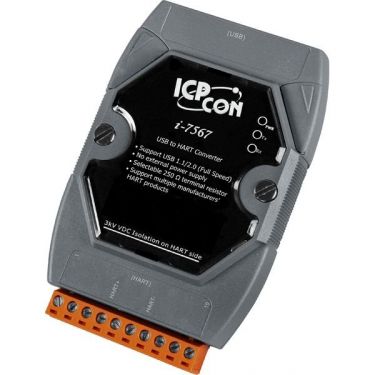

I-7567 - USB To HART ConverterUSB To HART Converter
● Support HART Short/Long frame
● Allow two HART masters
● Working in point-to-point or multi-drop HART mode
● Connecting up to 15 HART modules
● Provide utility tool for module configuration
● No external power supply (powered by USB)
● Support firmware update via USB
● Provide PWR / Tx / Rx indication LED
● 4kV ESD Protection

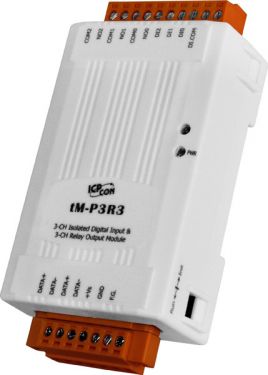

ICPDAS tM-P3R33-channel Isolated Digital Input and 3-channel Relay Output Module
● Relay Outputs
● Source and Sink Type Digital Inputs
● Photocouple Isolation
● All channels can be used as 16-bit counters
● Dual Watchdog
● Configurable Power-on Value Settings
● Configurable Safe Value Settings
● Cost-effective
● Operating Temperature Range: -25 °C ~ +75 °C

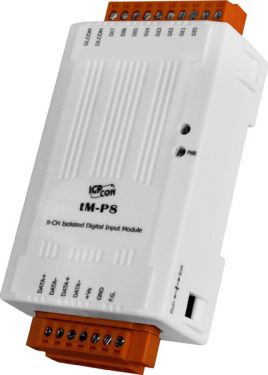

ICPDAS tM-P88-channel Isolated Digital Input Module
● Sink and Source Type Digital Inputs
● Photocouple Isolation
● All channels can be used as 16-bit counters
● Dual Watchdog
● Cost-effective
● Wide Operating Temperature Range: -25 °C ~ +75 °C

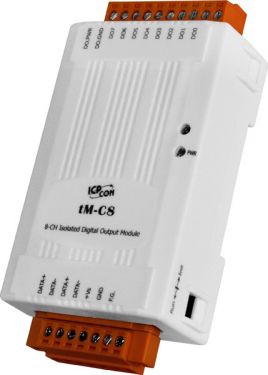

ICPDAS tM-C88-channel Isolated Digital Output Module
● Sink Type Digital Outputs
● Photocouple Isolation
● Dual Watchdog
● Configurable Power-on Value Settings
● Configurable Safe Value Settings
● Cost-effective
● Wide Operating Temperature Range: -25 °C ~ +75 °C

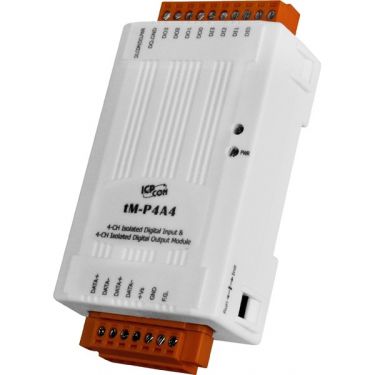

4-channel Isolation Digital Input and 4-channel Source Type Isolated Digital Output Module - tM-P4A44-channel Isolated Digital Input and 4-channel Source Type Isolated Digital Output Module
● Digital Outputs Source Type
● Digital Inputs Sink Type
● Photocouple Isolation
● All Channels Can Be Used As 16-bit Counters
● Dual Watchdog
● Configurable Power-on Value Settings
● Configurable Safe Value Settings
● Cost-effective
● Wide Operating Temperature Range: -25 °C ~ +75 °C

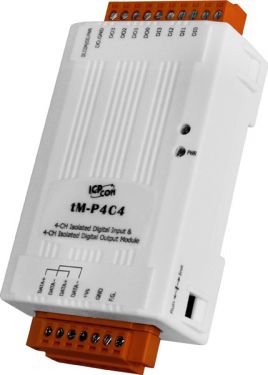

ICPDAS tM-P4C44-channel Isolated Digital Input and 4-channel Isolated Digital Output Module
● Sink Type Digital Outputs
● Source Type Digital Inputs
● Photocouple Isolation
● All Channels Can Be Used As 16-bit Counters
● Dual Watchdog
● Configurable Power-on Value Settings
● Configurable Safe Value Settings
● Cost-effective
● Operating Temperature Range: -25 °C ~ +75 °C

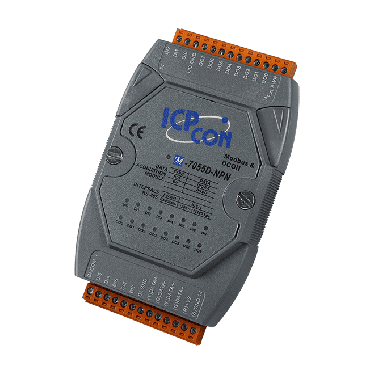

ICPDAS M-7055D-NPN8-channel Isolated Digital Input and 8-channel Sink Type Isolated Digital Output Module with LED Display
● Digital Outputs for Sink Type
● Support Digital Inputs (Sink Type or Source Type)
● Photo Couple Isolation
● Can Be Used As Counters
● 4 kV ESD and EFT Protection
● 3 kV Surge Protection for Power Input
● Dual Watchdog
● Power On Value Setting
● Safe Value Setting
● Short Circuit Protection
● 3750 VDC Intra-Module Isolation
● Operating Temperatures Range: -25 °C ~ +75 °C

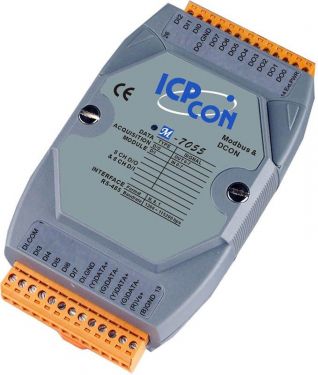

ICPDAS M-70558-channel Isolated Digital Input and 8-channel Isolated Digital Output Module with 16-bit Counters (Gray Cover)
● Digital Input Channels: 8
● Digital Input Status
Dry contact: ON Voltage Level: close to GND
OFF Voltage Level: open
● Wet contact: ON Voltage Level: +10 V ~ +50 V
OFF Voltage Level: +3 V max.
● Effective distance for dry contact: 500 m max.
● Digital Output channels: 8
● Open collector to 40 V, 650 mA max. load (Short Circuit Protection)
● Optical Isolation: 3750 Vrms
