AC Digital Input

8-channel 10 ~ 80 VAC Isolated Digital Input Module with 16-bit Counters

8-channel 80 VAC ~ 250 VAC Isolated Digital Input Module with 16-bit Counters

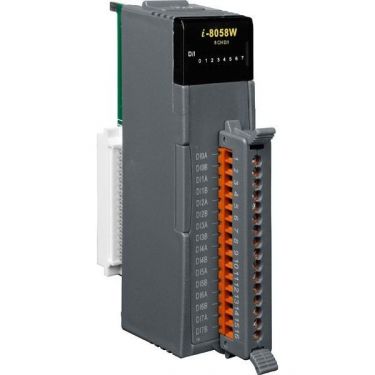

8-channel 80 ~ 250 VAC Isolated Digital Input Module

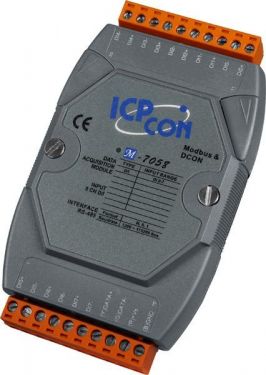

8-channel 80-250VAC Isolated Digital Input Module with 16-bit Counters and LED Display (Gray Cover)

● Digital input channel: 8 differential
● Operating Voltage: 80 ~ 250 VAC peak
● Input Voltage
   ON Voltage Level: AC 80 V min.
   OFF Voltage Level: AC 30 V max.
● Maximum Input Voltage: AC 250 V
● AC frequency: 45 Hz (min.)
● Isolation: 5000 Vrms

8-channel 80-250 VAC Isolated Digital Input Module with 16-bit Counters (Gray Cover)

● Digital input channel: 8 differential
● Operating Voltage: 80 ~ 250 VAC peak
● Input Voltage
   ON Voltage Level: AC 80 V min.
   OFF Voltage Level: AC 30 V max.
● Maximum Input Voltage: AC 250 V
● AC frequency: 45 Hz (min.)
● Isolation: 5000 Vrms

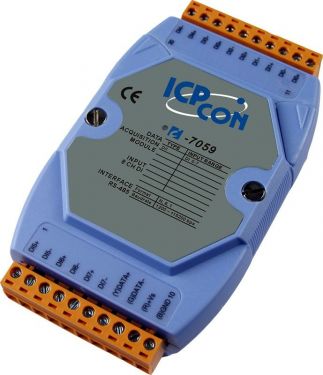

8-channel 10~80V AC Isolated Digital Input Module with 16-bit Counters and LED Display

● Input Channel: 8 differential
● Operation Voltage: 10 ~ 80 VAC Peak
● ON Voltage Level: 10 VAC min.
● OFF Voltage Level: 3.0 VAC max.
● AC Frequency: 47 ~ 400 Hz (>45 Hz min.)
● Input Impedance: 10 kΩ
● Isolation Voltage: 5000 Vrms
● Power Input: +10 V ~ +30 V
● Power Consumption: 0.3 W max.
● Dual Watchdog

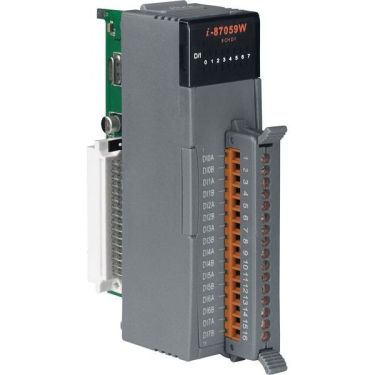

8-channel 10 ~ 80 VAC Isolated Digital Input Module with 16-bit Counters

● Input Channel: 8 differential
● Operation Voltage: 10 ~ 80 VAC Peak
● ON Voltage Level: 10 VAC min.
● OFF Voltage Level: 3.0 VAC max.
● AC Frequency: 47 ~ 400 Hz (>45 Hz min.)
● Input Impedance: 10 kΩ
● Isolation Voltage: 5000 Vrms
● Power Input: 10 V ~ +30 V
● Power Consumption: 0.3 W max.
● Dual Watchdog

8-channel 80 ~ 250 VAC Isolated Digital Input Module with 16-bit Counters and LED Display

● Digital input channel: 8 differential
● Operating Voltage: 80 ~ 250 VAC peak
● Input Voltage
   ON Voltage Level: AC 80 V min.
   OFF Voltage Level: AC 30 V max.
● Maximum Input Voltage: AC 250 V
● AC frequency: 45 Hz (min.)
● Isolation: 5000 Vrms
● Dual Watchdog

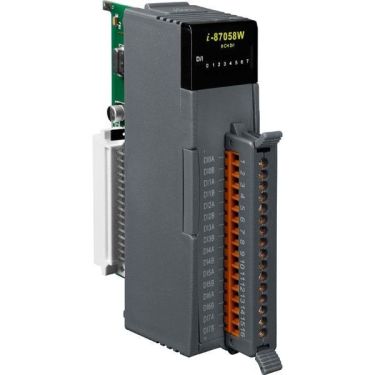

8-channel 80 ~ 250 VAC Isolated Digital Input Module with 16-bit Counters

● Digital input channel: 8 differential
● Operating Voltage: 80 ~ 250 VAC peak
● Input Voltage
   ON Voltage Level: AC 80 V min.
   OFF Voltage Level: AC 30 V max.
● Maximum Input Voltage: AC 250 V
● AC frequency: 45 Hz (min.)
● Isolation: 5000 Vrms
● Dual Watchdog
