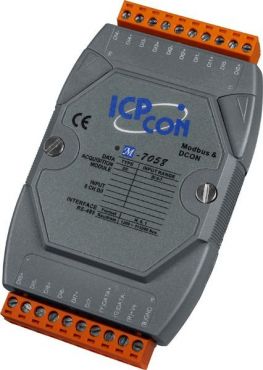

ICPDAS M-7058D

Levertijd:
2~7 dagen
SKU
M-7058D

8-channel 80-250VAC Isolated Digital Input Module with 16-bit Counters and LED Display (Gray Cover)

● Digital input channel: 8 differential
● Operating Voltage: 80 ~ 250 VAC peak
● Input Voltage
   ON Voltage Level: AC 80 V min.
   OFF Voltage Level: AC 30 V max.
● Maximum Input Voltage: AC 250 V
● AC frequency: 45 Hz (min.)
● Isolation: 5000 Vrms

The M-7000 series is a family of network data acquisition and control modules that support Modbus RTU and DCON protocols. With the Modbus RTU protocol, it can easily communicate with most popular SCADA/HMI software and PLC. It has the same form factor as the I-7000 series.

ICPDAS Digital Input Module M-7058D offers 8 channels differential for AC digital input, each of which features photocouple isolation for channel to channel. Its on voltage level lies in 80 V ~ 250 VAC. All DI channels are also able to be used as 16-bit counters. It has 8 LED indicators for DI channel status. 4 kV ESD protection and 5000V intra-module isolation are standard.

Meer informatie
Art.nr.
M-7058D
Fabrikant
ICPDAS
Digital Input
Channels 8
Input Type AC, Differential, isolated
On Voltage Level 80 ~ 250 VAC
Off Voltage Level 30 VAC max.
AC Frequency 50 ~ 60 Hz ( > 45 Hz Min.)
Input Impedance 68 kΩ, 1 W
Counters
Channels : 8
Max. Counts: 16-bit (65535)
Max. Input Frequency: 100 Hz
Min. Pulse Width: 5 ms
Photo-Isolation 5000 Vrms
Interface
Interface RS-485
Format N, 8, 1
Baud Rate 1200 ~ 115200 bps
LED Indicators
1 LED as Power/ Communication indicator
8 LEDs as Digital Input indicators
Protocol
Support Modbus and DCON Protocol Yes
Power
Input Voltage Range 10 ~ 30 VDC
Power Consumption 1.0 W
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -40 °C ~ +85 °C
Humidity 5 ~ 95%, non-condensing
